Product Description

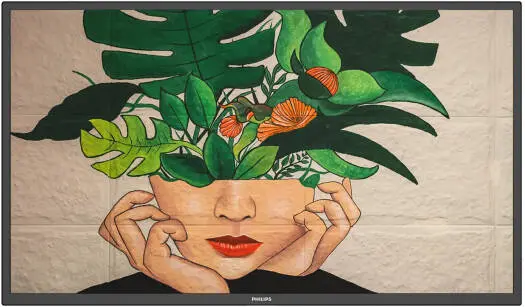

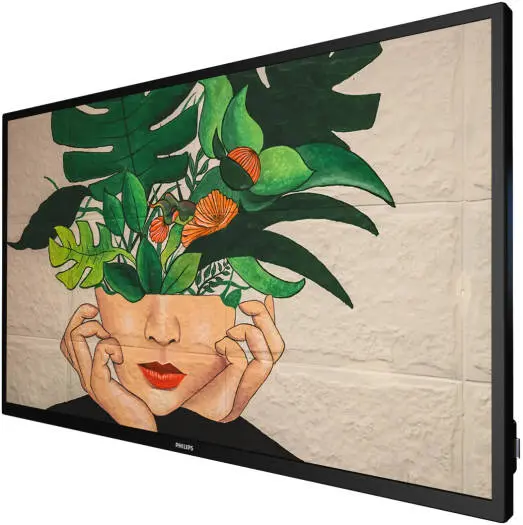

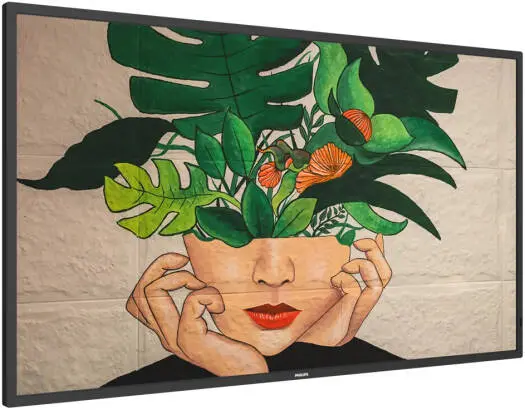

Philips D-Line 43BDL4550D Digital Signage Display, 43" 4K UHD IPS Display, 60Hz Refresh Rate, 8ms Response Time, 1.07b Display Colors, Dual Aerial (2.4GHz & 5GHz) Connectivity, Black 43BDL4550D
Amaze your guests with a smarter, faster signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions
Specifications
| Picture/Display | |
| Diagonal screen size (inch) | 42.5 |
| Diagonal screen size (metric) | 108.0 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 500 |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Response time (typical) | 8 |
| Pixel pitch | 0.2451 x 0.2451 mm |
| Display colours | 1.07 Billion |
| Viewing angle (horizontal) | 178° |
| Viewing angle (vertical) | 178° |
| Picture enhancement | 3/2 - 2/2 motion pull down 3D Combfilter Motion compens. deinterlacing 3D MA deinterlacing Dynamic contrast enhancement Progressive scan |
| Operating system | Android 8.0 |
| Panel technology | IPS |
| Connectivity | |
| Video input | DisplayPort 1.2 (x 1) DVI-I (x 1) HDMI 2.0 (x 2) USB 2.0 (x 2) |
| Video output | DisplayPort 1.2 (x 1) HDMI 2.0 (x 1) |
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
| External control | RJ45 RS232C (in/out) 2.5 mm jack IR (in/out) 3.5 mm jack |
| Wi-Fi | Dual aerial 2.4 GHz and 5 GHz |
| 4G/LTE antenna connectors | mPCIe |
| Supported Display Resolution | |
| Computer formats | 1024 x 768, 60 Hz 1280 x 1024, 60 Hz 1280 x 720, 60 Hz 1440 x 900, 60 Hz 1600 x 900, 60 Hz 1680 x 1050, 60 Hz 1920 x 1080, 60 Hz 3840 x 2160, 30, 60 Hz 640 x 480, 60 Hz 800 x 600, 60 Hz |
| Video formats | 1080p, 50, 60 Hz 1080i, 50, 60 Hz 2160p, 24, 30, 60 Hz 480i, 60 Hz 480p, 60 Hz 576i, 50 Hz 576p, 50 Hz 720p, 50, 60 Hz |
| Dimensions | |
| Set Width | 973.0 mm |
| Set Height | 561.2 mm |
| Set Depth | 63.5 mm |
| Set Width (inch) | 38.31 |
| Set Height (inch) | 22.09 |
| Set Depth (inch) | 2.50 |
| Bezel width | 13.9 mm (Even bezel) |
| Product weight (lb) | 23.61 |
| Product weight (kg) | 10.71 |

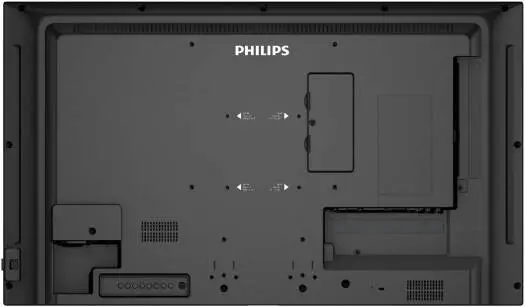

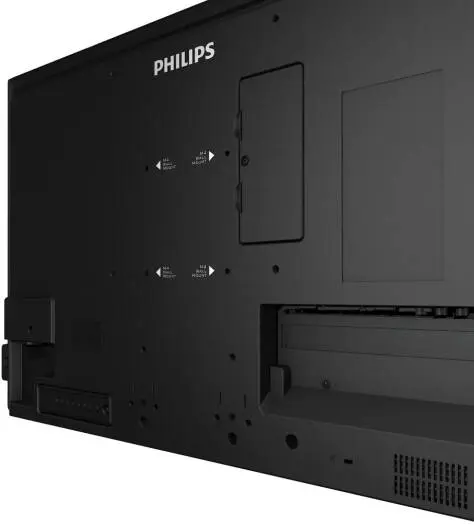

| Wall Mount | 200 (H) x 200 (V) mm, M6 |
| Convenience | |
| Placement | Landscape (24/7) Portrait (24/7) |
| Tiled Matrix | Up to 10 x 15 |
| Keyboard control | Hidden Lockable |
| Signal loop through | RS232 IR Loop through DisplayPort HDMI |
| Network controllable | RS232 |
| Energy-saving functions | Smart Power |
| Screen-saving functions | Pixel Shift, Low Bright |
| WiFi protocol | a b g n, 802.1x |
| Power | |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption (Typical) | 83 W |
| Consumption (Max) | 123 W |
| Energy Label Class | G |
| Operating Conditions | |
| Temperature range (operation) | 0 ~ 40°C |
| Temperature range (storage) | -20 ~ 60°C |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hours |
| Humidity range (operation) [RH] | 20–80% RH (No condensation) |
| Humidity range (storage) [RH] | 5–95% RH (No condensation) |
| Sound | |
| Built-in speakers | 2 x 10 W RMS |
| Accessories | |
| Included accessories | Quick start guide |
| RS232 cable | |
| AC Power Cord | |
| IR sensor cable (1.8 M) | |
| Remote Control and AAA Batteries | |
| RS232 daisy-chain cable | |
| Philips logo (x 1) | |
| AC Switch Cover | |
| USB Cover (x 1) | |
| Screws | |
| Multimedia Applications | |
| USB Playback Audio | AAC HEAAC MPEG |
| USB Playback Picture | BMP JPEG PNG |
| USB Playback Video | MPEG H.263 H.264 H.265 |
| Miscellaneous | |
| On-Screen Display Languages | English French German Spanish Polish Turkish Russian Italian Simplified Chinese Traditional Chinese Arabic Japanese Danish Dutch Finnish Norwegian Portuguese Swedish |
| Regulatory approvals | CE CCC RoHS BSMI CB VCCI CU EMF EnergyStar 8.0 ETL FCC, Class A PSB |
| Internal Player | |
| CPU | 2 x A53 + 2 x A73 |
| GPU | ARM Mali G51 |
| Storage | 32 GB eMMC |
| Memory | 3 GB DDR |
