Product Description

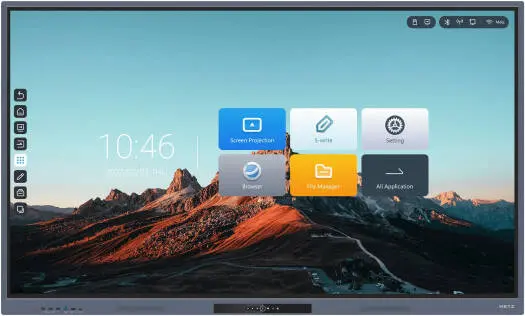

METZ 86KD1 – K Series 86” Interactive Display (4K UHD)
Maximum impact. Seamless interaction. Built for large spaces.
The METZ 86KD1 K Series is a premium 86-inch interactive flat panel display engineered for large classrooms, conference halls, training centers, and executive boardrooms. With a massive 4K UHD LED screen, 20-point infrared touch, and a powerful Android 11 system, it delivers exceptional clarity, ultra-smooth writing, and reliable performance for collaborative environments.
Powered by an octa-core ARM processor and Mali-G52 MP8 GPU, the 86KD1 handles multitasking, wireless sharing, and high-resolution content effortlessly. Its durable metal design, anti-glare glass, rich connectivity, and OPS expansion support make it a future-ready solution for professional and educational use.
Key Features
86” 4K UHD (3840 × 2160) LED display for crystal-clear visuals
20-point infrared touch with ±1mm accuracy and fast response
Android 11 OS with octa-core CPU & Mali-G52 MP8 GPU
Anti-glare 4mm tempered glass for comfortable viewing in bright rooms
Wide connectivity including USB-C, HDMI, DP, LAN & HDMI OUT
Built-in Wi-Fi 6 & Bluetooth for wireless collaboration
Dual 15W front-facing speakers for clear room-filling audio
OPS-ready (80-pin) for optional Windows PC integration
Specifications
Display
| Category | Details |
| Model | METZ 86KD1 |
| Display Size | 86 inch |
| Display Area (H × V) | 1895.04 × 1065.96 mm |
| Resolution | 3840 × 2160 (4K UHD) |
| Backlight Type | LED |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60Hz |
| Response Time | 8 ms |
| Viewing Angle | ≥178° |
Touch System
| Category | Details |
| Touch Technology | Infrared Touch |
| Touch Points | 20 points |
| Glass | 4mm Anti-glare Tempered Glass |
| Touch Accuracy | ±1 mm |
| Touch Resolution | 32767 × 32767 |
| Touch Response Time | ≤8 ms |
| Writing Method | Finger or opaque object |
| Anti-Light Ability | 80K Lux |
System Configuration
| Category | Details |
| Operating System | Android 11.0 |
| CPU | ARM Cortex A73 ×4 + Cortex A53 ×4 |
| GPU | ARM Mali-G52 MP8 |
| RAM | 8 GB |
| Internal Storage (ROM) | 128 GB |
| Video Formats | H.263, VP6/8/9, MPEG-1, XVID, MJPEG, AVS/AVS2, 4K & 8K VP9 |
Connectivity
| Category | Details |
| Front Ports | USB 3.0 ×3, HDMI IN ×1, TOUCH ×1, USB-C ×1 |
| Rear Ports | HDMI IN ×2, TOUCH ×2, USB 3.0 ×2, USB-C ×1, MIC IN ×1, Line OUT ×1, RS232 ×1, SPDIF ×1, LAN IN ×1, LAN OUT ×1, HDMI OUT ×1, DP IN ×1, USB 2.0 ×2 |
| Wireless | Dual-band Wi-Fi (2.4G / 5G) with Wi-Fi 6 support |
| Bluetooth | Built-in |
| Speakers | 2 × 15W (front-facing) |
Power & Build
| Category | Details |
| Input Power | 100–240V ~ 50/60Hz |
| Power Consumption | Approx. 450 W |
| Standby Power | ≤0.5 W |
| Material | Aluminum front + metal rear |
| Color | Palladium Blue |
| Service Life | ≥30,000 hours |
Installation & Dimensions
| Category | Details |
| VESA Mount | 800 × 600 mm |
| Product Size (with wall mount) | 1961.0 × 1167.81 × 122.65 mm |
| Net Weight | 63 kg |
| Gross Weight | 80 kg |
