Product Description

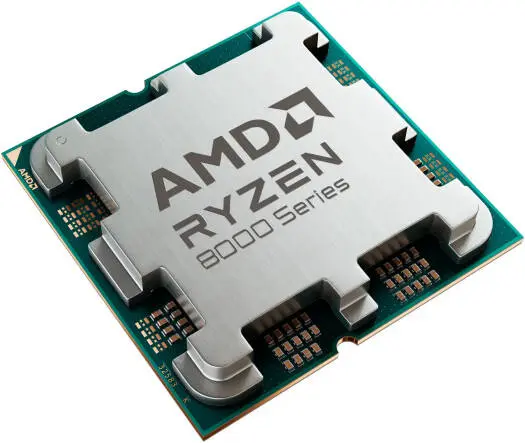

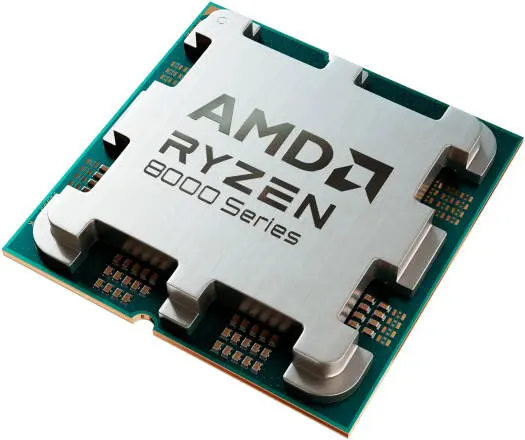

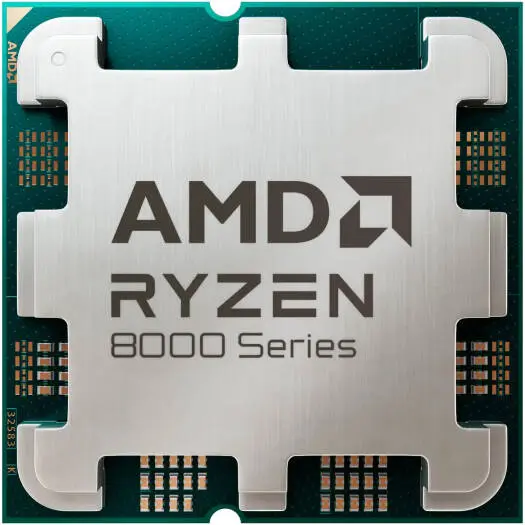

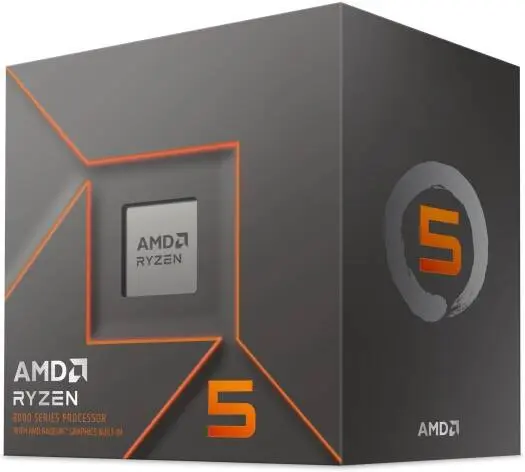

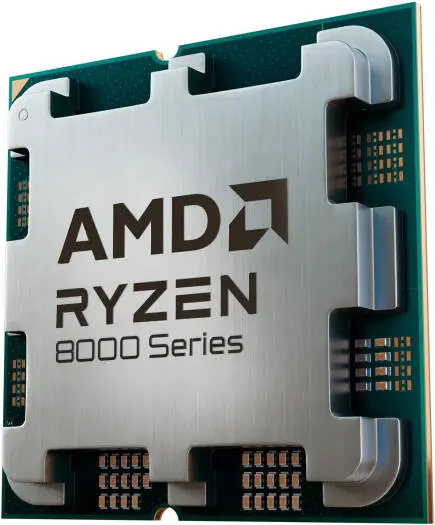

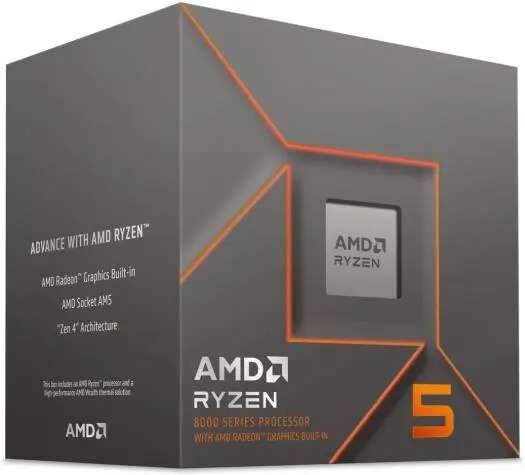

AMD Ryzen™ 5 8500G Desktop Processor – 6 Cores & 12 Threads, Up to 5.0GHz Boost, Radeon™ 740M Graphics, DDR5-5200, AM5 Socket, 65W TDP | 100-00000931BOX
Powerful All-in-One Performance with Integrated Radeonâ„¢ Graphics
The AMD Ryzen™ 5 8500G brings together cutting-edge Zen 4 and Zen 4c cores with integrated Radeon™ 740M Graphics, delivering exceptional processing and graphics performance in one efficient package. Designed for modern desktop users, this 6-core, 12-thread processor reaches speeds up to 5.0GHz, ideal for gaming, content creation, and everyday multitasking—all without requiring a discrete GPU.
Thanks to the AM5 platform and DDR5 memory support, it ensures seamless connectivity and future-proof compatibility. The included Wraith Stealth Cooler keeps thermals under control while maintaining quiet operation.
 Key Features
6 Cores / 12 Threads with Zen 4 + Zen 4c hybrid architecture
Up to 5.0GHz Max Boost Clock for responsive performance
Integrated AMD Radeon™ 740M Graphics – smooth 1080p gaming
DDR5-5200 Dual-Channel Memory Support (up to 256GB)
AMD EXPOâ„¢, Precision Boost Overdrive, and Curve Optimizer for tuning flexibility
PCIe® 4.0 and USB4 (40Gbps) connectivity
Wraith Stealth Cooler included
Power-efficient 65W TDP design
 Ideal For
All-in-one PCs and compact builds
Entry-level gaming and multimedia creation
Office, productivity, and home entertainment setups
Users seeking high performance without a discrete GPU
Â
Â
Specifications
| Category | Specification |
| Model | AMD Ryzenâ„¢ 5 8500G |
| CPU Socket | AM5 |
| Architecture | 2x Zen 4 + 4x Zen 4c |
| Cores / Threads | 6 / 12 |
| Base Clock | 3.5 GHz |
| Max Boost Clock | Up to 5.0 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| Default TDP | 65 W |
| Configurable TDP (cTDP) | 45–65 W |
| Manufacturing Process | TSMC 4nm FinFET |
| Unlocked for Overclocking | Yes |
| Memory Support | DDR5 up to 5200 MT/s |
| Memory Channels | 2 |
| Max Memory Capacity | 256 GB |
| PCI Express Version | PCIe® 4.0 |
| PCIe Lanes (Total/Usable) | 14 / 10 |
| Graphics Model | AMD Radeonâ„¢ 740M |
| Graphics Core Count | 4 CUs |
| Graphics Frequency | 2800 MHz |
| Display Outputs | HDMI® 2.1, DisplayPort™ 2.1 |
| Max Displays Supported | 4 |
| DirectX® / FreeSync™ Support | DirectX® 12 / Yes |
| Cooler Included | Wraith Stealth |
| Max Operating Temp (Tjmax) | 95°C |
| OS Compatibility | Windows 11/10 64-bit, RHEL, Ubuntu |
| Launch Date | January 31, 2024 |
