Product Description

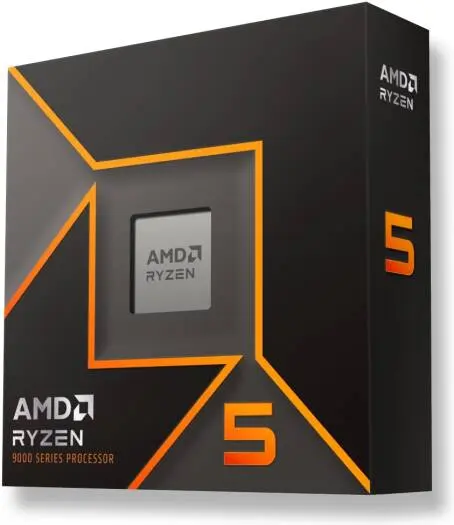

AMD Ryzenâ„¢ 5 9600X AM5 Desktop Processor | 100-100001405WOF
Pure Gaming Performance. Unlocked Speed. Next-Gen Efficiency.
Experience elite gaming power and responsiveness with the AMD Ryzenâ„¢ 5 9600X processor. Built on the advanced Zen 5 architecture and a 4 nm FinFET process, this six-core, twelve-thread powerhouse delivers lightning-fast speeds and incredible efficiency for gamers, streamers, and creators alike.
With a boost clock of up to 5.4 GHz and 32 MB of L3 cache, the Ryzen 5 9600X provides exceptional single-threaded performance and seamless multitasking. It also features integrated AMD Radeon™ Graphics for smooth visuals right out of the box — ideal for compact builds or troubleshooting without a discrete GPU.
Supporting PCIe® 5.0, DDR5-5600 MHz memory, and advanced tuning through Precision Boost 2 and AMD EXPO™, the Ryzen 5 9600X is engineered to deliver pure gaming performance with unmatched efficiency.
 Key Features
6 Cores / 12 Threads – Optimized for gaming and streaming workloads.
Up to 5.4 GHz Boost Clock – Smooth, responsive performance under heavy loads.
Zen 5 Architecture (4 nm) – Improved IPC, higher frequency headroom, and better power efficiency.
Integrated AMD Radeon™ Graphics – Reliable visual performance without a GPU.
PCIe® 5.0 Support – Ready for next-gen GPUs and NVMe storage speeds.
Dual-Channel DDR5 Memory Support up to 192 GB – Faster data access and multitasking.
Unlocked for Overclocking – Fine-tune performance with AMD Ryzen™ Master.
ECC Memory Support – Enhanced stability for workstation and creative workflows.
65 W TDP – Balanced performance and efficiency for modern desktops.
Specifications
Category | Details |
Model | AMD Ryzenâ„¢ 5 9600X |
Socket | AM5 |
Architecture | Zen 5 (4 nm FinFET) |
Cores / Threads | 6 / 12 |
Base Clock | 3.9 GHz |
Max Boost Clock | Up to 5.4 GHz |
L2 / L3 Cache | 6 MB / 32 MB |
TDP | 65 W |
Unlocked for Overclocking | Yes |
Memory Type | DDR5 UDIMM |
Max Memory Capacity | 192 GB |
Memory Speed | Up to DDR5-5600 MHz |
Memory Channels | Dual |
ECC Support | Yes (Requires motherboard support) |
PCI Express Version | PCIe® 5.0 (28 Total Lanes) |
Integrated Graphics | AMD Radeonâ„¢ Graphics |
Graphics Base Clock | 2200 MHz |
Display Outputs | HDMI®, DisplayPort™ |
Max Temperature (Tjmax) | 95 °C |
Supported Technologies | Precision Boost 2, AMD EXPOâ„¢, AMD Ryzenâ„¢ Master |
Supported OS | Windows 11 / 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
Included Cooler | Not Included (Aftermarket cooler recommended) |
