Product Description

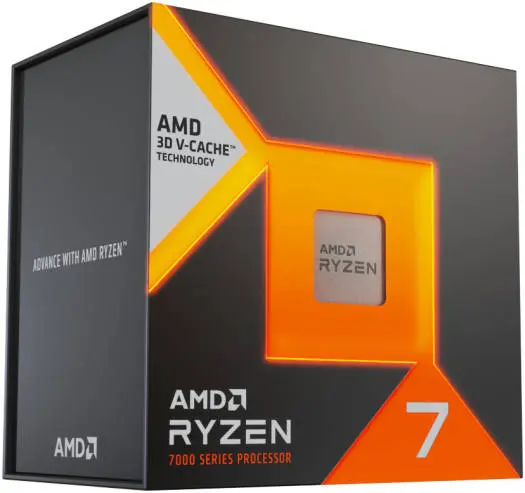

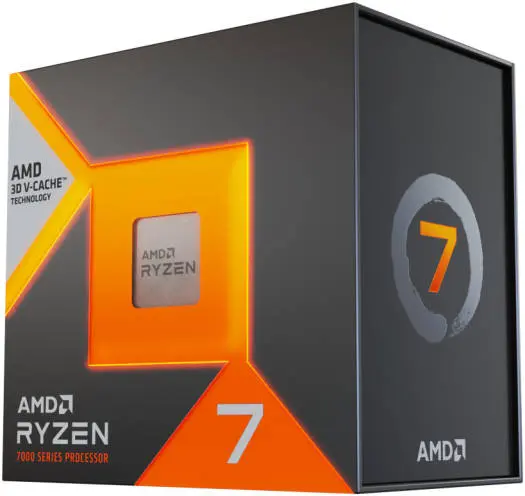

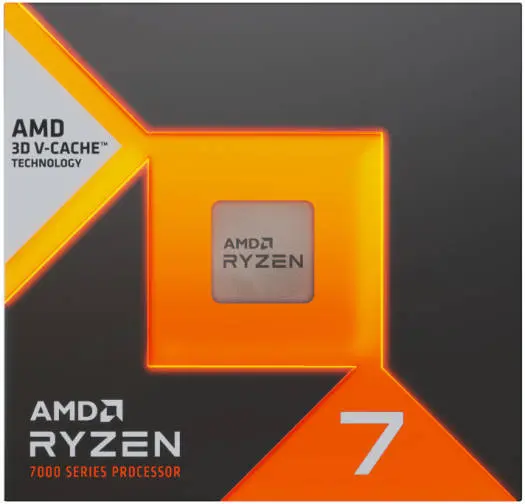

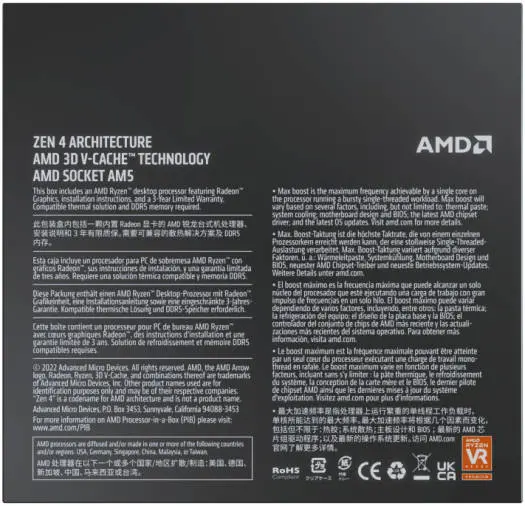

AMD Ryzenâ„¢ 7 7800X3D AM5 Desktop Processor | 100-100000910WOF
The Dominant Gaming Processor with AMD 3D V-Cacheâ„¢ Technology
Power your gaming setup with the AMD Ryzen™ 7 7800X3D, the world’s most advanced 8-core gaming CPU, featuring revolutionary AMD 3D V-Cache™ Technology for unmatched low-latency gaming performance. With 8 Cores and 16 Threads, a 5 GHz Max Boost Clock, and 96 MB of L3 Cache, this processor delivers the competitive edge every gamer craves.
Built on the Zen 4 architecture, it combines next-gen speed, efficiency, and future-proof technology. Whether you’re chasing frames in the latest AAA titles or multitasking between gaming, streaming, and content creation, the Ryzen 7 7800X3D keeps you ahead of the game.
 Key Features
8 Cores / 16 Threads – Smooth gameplay, seamless streaming, and effortless multitasking.
Up to 5.0 GHz Max Boost Clock – Lightning-fast responsiveness for modern workloads.
AMD 3D V-Cache™ Technology – 96 MB of L3 cache for groundbreaking gaming performance.
Zen 4 Architecture – Engineered with advanced 5 nm process for power efficiency and speed.
Integrated AMD Radeon™ Graphics – Run displays and perform light graphics tasks without a discrete GPU.
DDR5 Memory Support (Up to 128 GB) – Dual-channel UDIMM support for higher bandwidth and stability.
PCIe® 5.0 Support – Next-generation connectivity for GPUs and NVMe storage.
Unlocked Processor – Fine-tune performance using AMD EXPO™, Precision Boost Overdrive & Ryzen™ Master.
AM5 Socket Compatibility – Works with X670E, X670, B650E, and B650 motherboards.
Future-Ready Platform – AM5 socket supported through 2025 and beyond.







Â
 Specifications
Category | Details |
Architecture | Zen 4 (Raphael AM5) |
Cores / Threads | 8 Cores / 16 Threads |
Base / Boost Clock | 4.2 GHz / Up to 5.0 GHz |
Cache | L1: 512 KB |
Default TDP | 120 W |
Fabrication Process | TSMC 5 nm (CPU) / 6 nm (I/O Die) |
Socket | AM5 |
Chipset Compatibility | X670E, X670, B650E, B650 |
Unlocked for Overclocking | Yes |
Memory Support | DDR5 Dual-Channel (UDIMM) Up to 128 GB |
Max Memory Speed | DDR5-5200 (2×1R / 2×2R), DDR5-3600 (4×1R / 4×2R) |
ECC Support | Yes (Requires motherboard support) |
Graphics | AMD Radeonâ„¢ Graphics (2 CUs @ 2200 MHz) |
PCI Express Support | PCIe® 5.0 (28 Total / 24 Usable Lanes) |
USB Support | 4 × USB 3.2 Gen 2 (10 Gbps), 1 × USB 2.0 (480 Mbps) |
NVMe Support | Boot, RAID 0/1/10 |
Thermal Solution | Not Included – Liquid cooling recommended |
Max Operating Temp (Tjmax) | 89 °C |
OS Support | Windows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
AMD EXPOâ„¢ Support | Yes |
Precision Boost Overdrive / Curve Optimizer | Supported |
Launch Date | April 6, 2023 |
