Product Description

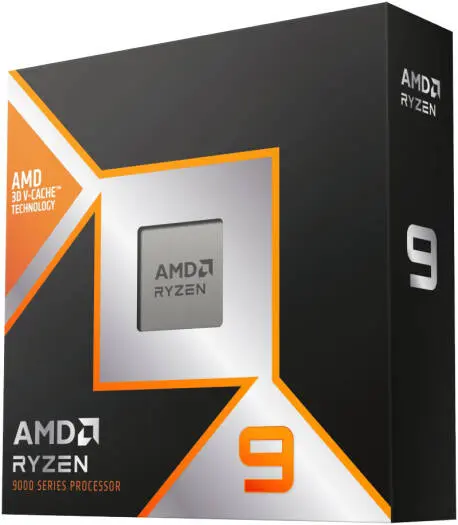

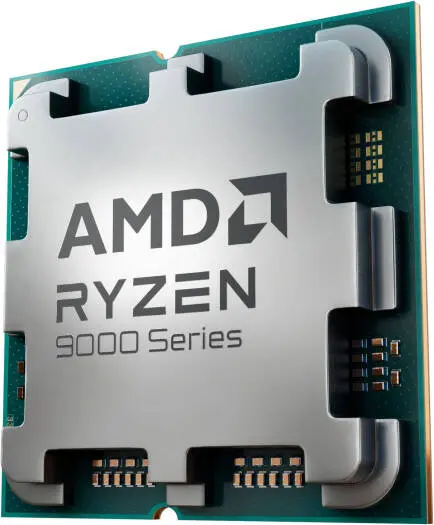

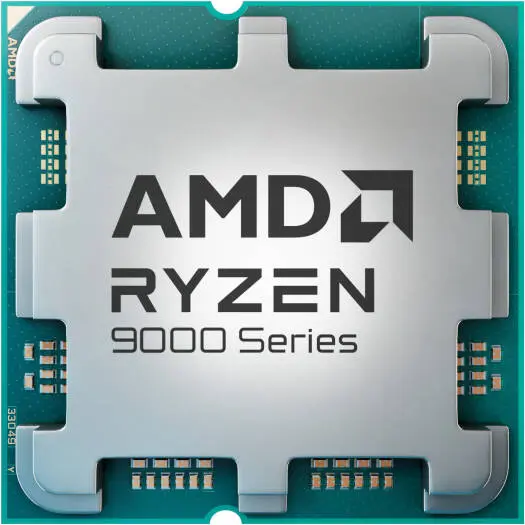

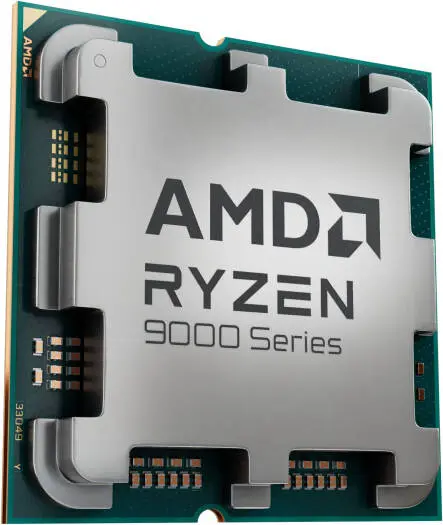

AMD Ryzenâ„¢ 9 9950X3D AM5 Desktop Processor | 100-100000719WOF
The Ultimate 16-Core Powerhouse for Gamers & Creators
Experience the pinnacle of desktop performance with the AMD Ryzen™ 9 9950X3D — the ultimate 16-core, 32-thread CPU powered by Zen 5 architecture and advanced 2nd Gen AMD 3D V-Cache™ Technology. Designed for serious gamers, content creators, and power users, it delivers unmatched speed, responsiveness, and efficiency.
With a Max Boost Clock up to 5.7 GHz, 128 MB L3 Cache, and integrated AMD Radeon™ Graphics, this processor dominates demanding workloads — from 4K gaming to high-end rendering. Support for DDR5 memory, PCIe® 5.0, and 192 GB maximum RAM ensures your build is future-ready.
Whether you’re chasing every millisecond in esports or pushing creative boundaries, the Ryzen 9 9950X3D gives you the competitive edge and ultimate multitasking power.
 Key Features
16 Cores / 32 Threads — Unrivaled multitasking and performance for extreme gaming and professional workloads.
Up to 5.7 GHz Max Boost Clock — Blazing-fast responsiveness for intensive applications.
2nd Gen AMD 3D V-Cache™ Technology — Massive 128 MB L3 Cache for ultra-low-latency gaming performance.
Zen 5 Architecture (4 nm Process) — Advanced efficiency and performance per watt.
Integrated AMD Radeon™ Graphics — Power your system without a discrete GPU.
Supports DDR5 Memory Up to 192 GB — Dual-channel architecture for unmatched bandwidth.
PCIe® 5.0 Support — Ultra-fast connectivity for next-generation GPUs and storage.
Unlocked for Overclocking — Fine-tune performance with AMD Ryzen™ Master and PBO.
Compatible with AM5 Socket Motherboards — Full support for X870E, X670E, B650E, and more.
Liquid Cooling Recommended — For maximum thermal performance under load.
Â
Â
Specifications
Category | Details |
Architecture | Zen 5 (Granite Ridge AM5) |
Cores / Threads | 16 Cores / 32 Threads |
Base / Boost Clock | 4.3 GHz / Up to 5.7 GHz |
Cache | L1: 1280 KB |
Default TDP | 170 W |
Unlocked for Overclocking | Yes |
Fabrication Process | TSMC 4 nm CPU Cores / 6 nm I/O Die |
Socket | AM5 |
Chipset Compatibility | X870E, X870, X670E, X670, B850, B840, B650E, B650, A620 |
Memory Support | DDR5 (UDIMM) Dual Channel up to 192 GB |
Memory Speed | 2×1R DDR5-5600, 2×2R DDR5-5600, 4×1R DDR5-3600, 4×2R DDR5-3600 |
ECC Support | Yes (requires motherboard support) |
Graphics | AMD Radeonâ„¢ Graphics (2 CUs @ 2200 MHz) |
PCI Express Support | PCIe 5.0 (24 usable lanes out of 28 total) |
USB Support | 4 × USB 3.2 Gen 2 (10 Gbps), 1 × USB 2.0 (480 Mbps) |
NVMe Support | RAID 0/1/5/10 + Boot Support |
Thermal Solution | Not Included – Liquid Cooler Recommended |
Max Operating Temp (TjMax) | 95 °C |
OS Support | Windows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
Package Die Count | 3 |
AMD EXPOâ„¢ Support | Yes |
Precision Boost Overdrive / Curve Optimizer | Supported |
Graphics Output | USB-C DisplayPortâ„¢ Alt Mode Supported |
