Product Description

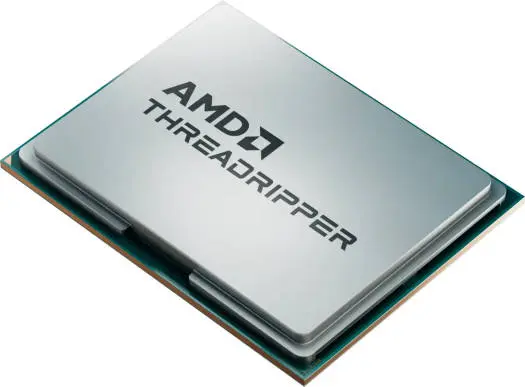

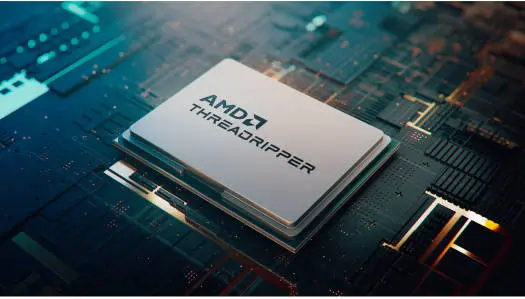

AMD Ryzen™ Threadripper™ 7980X sTR5 Processor – 64 Cores, 128 Threads, 5.1 GHz Boost, 256 MB Cache, DDR5-5200 ECC, PCIe 5.0 | 100-100001350WOF
Unleash Extreme Workstation Power
The AMD Ryzen™ Threadripper™ 7980X sets a new benchmark for high-end desktop performance. Designed for professionals, creators, and power users, it delivers 64 Zen 4 cores and 128 threads engineered to handle the heaviest creative, scientific, and engineering workloads. From real-time 3D rendering to AI-driven simulations, this processor accelerates every aspect of modern computing.
With 3.2 GHz base and up to 5.1 GHz boost clock, combined with 256 MB of L3 cache, quad-channel DDR5 support, and PCIe 5.0 connectivity, the Threadripper 7980X transforms your desktop into a professional-grade workstation.
Key Features
64 Cores & 128 Threads
3.2 GHz Base / 5.1 GHz Max Boost Clock
256 MB L3 Cache + 64 MB L2 Cache
Quad-Channel DDR5 ECC Memory (up to 5200 MT/s)
92 PCIe 5.0 lanes (88 usable)
Unlocked for Overclocking with Precision Boost 2 & PBO

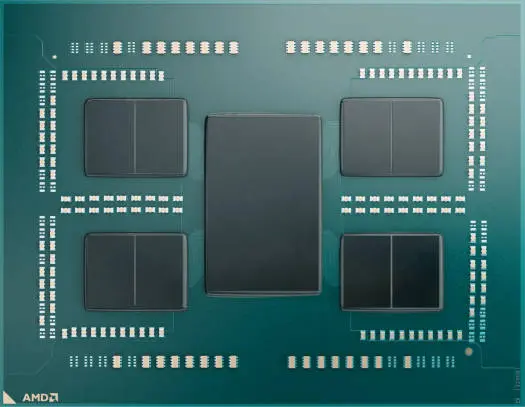

Built on TSMC 5 nm Zen 4 Architecture
Supports TRX50 Motherboards (sTR5 Socket)
Ideal for 3D Rendering, AI, Simulation & VFX Production
Specifications
Category | Specification |
Platform | Desktop |
Market Segment | Enthusiast / Workstation |
Product Family | AMD Ryzen™ Processors |
Product Line | AMD Ryzen™ Threadripper™ Series |
Architecture | Zen 4 (“Storm Peak”) |
Cores / Threads | 64 / 128 |
Base Clock | 3.2 GHz |
Max Boost Clock | Up to 5.1 GHz |
L1 Cache | 4 MB |
L2 Cache | 64 MB |
L3 Cache | 256 MB |
Default TDP | 350 W |
Fabrication Process | TSMC 5 nm FinFET (Cores) / TSMC 6 nm (I/O Die) |
Unlocked for Overclocking | Yes |
Memory Type | DDR5 ECC RDIMM |
Memory Channels | 4 |
Max Memory Capacity | Up to 1 TB (dependent on configuration) |
Max Memory Speed | Up to 5200 MT/s |
PCI Express® Version | PCIe 5.0 |
PCIe Lanes (Total / Usable) | 92 / 88 |
Socket Type | sTR5 |
Supported Chipsets | TRX50 |
Thermal Solution (PIB) | Not Included (requires high-end cooler) |
Max Operating Temp (Tjmax) | 95 °C |
Launch Date | October 19, 2023 |
OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
Integrated Graphics | None – Discrete GPU Required |
AMD Technologies | Precision Boost 2, PBO, Curve Optimizer, AMD EXPO™ |
Security Features | AMD Secure Processor, Memory Guard |
Product ID (Boxed) | 100-100001350WOF |
