Product Description

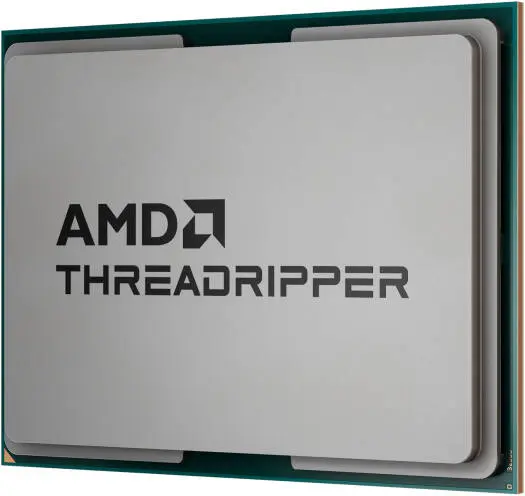

AMD Ryzenâ„¢ Threadripperâ„¢ 9960X sTR5 Processor | 100-100001595WOF
Unleash the Power of Zen 5 — Designed to Deliver. Built for Breakthroughs.
The AMD Ryzenâ„¢ Threadripperâ„¢ 9960X redefines workstation performance with 24 cores and 48 threads, powered by the groundbreaking Zen 5 architecture. Designed for extreme multitasking, advanced 3D rendering, content creation, and simulation workloads, this CPU delivers the world-class power and scalability professionals demand.
Running at a base clock of 4.2 GHz and boosting up to 5.4 GHz, the Threadripper 9960X is engineered to dominate high-end creative and technical environments while maintaining exceptional efficiency.
 Professional-Grade Performance
Built on TSMC’s 4nm FinFET process and featuring 128 MB of L3 cache, the 9960X delivers blistering throughput and lightning-fast responsiveness across complex workloads. Whether for CAD, animation, AI modeling, or scientific computation, it ensures unmatched speed and reliability.
 Next-Level Platform Capabilities
Supporting PCIe® 5.0, DDR5 quad-channel RDIMM memory, and up to 6400 MT/s speeds, this processor delivers superior bandwidth for next-gen GPUs, SSDs, and memory kits. The sTR5 platform ensures robust scalability and expandability for professional workstation builders.
 Built-In Security & Manageability
Featuring AMD Memory Guard, Secure Boot, Firmware TPM, and DASH manageability, the 9960X ensures enterprise-grade protection and control, ideal for secure design, engineering, and content creation environments.
Â
Â
 Specifications
| Category | Details |
| Name | AMD Ryzenâ„¢ Threadripperâ„¢ 9960X |
| Family / Series | Ryzen Threadripper / 9000 Series |
| Architecture | Zen 5 |
| Cores / Threads | 24 / 48 |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 5.4 GHz |
| L1 / L2 / L3 Cache | 1920 KB / 24 MB / 128 MB |
| Default TDP | 350 W |
| Unlocked for Overclocking | Yes |
| CPU Core Technology | TSMC 4nm FinFET |
| I/O Die Technology | TSMC 6nm FinFET |
| Socket | sTR5 |
| Supported Chipset | TRX50 |
| Memory Type / Channels | DDR5 / Quad Channel |
| Max Memory Speed | Up to 6400 MT/s |
| Max Memory Capacity | 4 Channels, RDIMM |
| ECC Support | Yes (Default Enabled) |
| PCI Express® Version | PCIe® 5.0 |
| PCIe® Lanes (Total / Usable) | 92 / 88 |
| NVMe Support | Boot, RAID 0/1/5/10 |
| USB 3.2 Gen 2 Ports | 4 |
| Native SATA Ports | 2 |
| Graphics | Discrete GPU Required |
| Max Operating Temperature (Tjmax) | 95 °C |
| Manageability | DASH Support |
| Security Features | Memory Guard, Secure Processor, Secure Boot, Device Guard, VBS, Firmware TPM, AES-NI, NX Bit |
| Supported Technologies | AMD EXPOâ„¢, AMD Ryzenâ„¢ Technologies, Precision Boost 2, Curve Optimizer |
| FIPS Certification | In Review |
| Product IDs | Boxed: 100-100001595WOF / Tray: 100-000001595 |
