Product Description

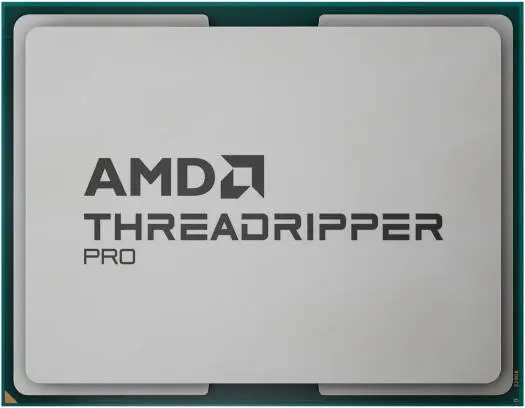

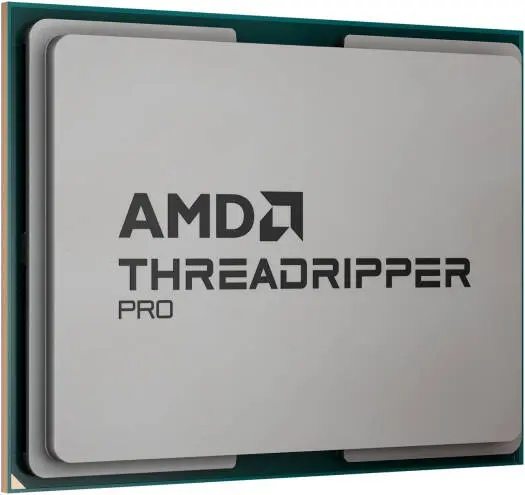

AMD Ryzenâ„¢ Threadripperâ„¢ PRO 9995WX sTR5 Processor | 100-100001361WOF
The World’s Fastest Workstation Processor — Built for Breakthroughs
Experience unmatched computational power with the AMD Ryzenâ„¢ Threadripperâ„¢ PRO 9995WX, the flagship workstation CPU designed for extreme multitasking, 3D rendering, AI, and simulation workloads. With an unprecedented 96 Zen 5 cores and 192 threads, this processor redefines workstation performance, delivering the ultimate scalability and reliability professionals demand.
Built on the cutting-edge TSMC 4nm FinFET architecture, the 9995WX achieves up to 5.4 GHz boost clocks, paired with a colossal 384MB of L3 cache and an 8-channel DDR5 memory controller supporting up to 2TB of ECC DDR5-6400 RDIMM memory. It’s the definitive solution for creators, engineers, and researchers who push hardware limits daily.
Professional-Grade Performance
96 Cores / 192 Threads powered by Zen 5 architecture for extreme parallel workloads.
5.4 GHz Max Boost Clock with Precision Boost 2 and Curve Optimizer for dynamic frequency scaling.
128 PCIe® 5.0 lanes for extensive GPU, NVMe, and accelerator expansion.
Unlocked for fine-tuned overclocking and custom performance optimization.
Engineered for Demanding Workloads
From complex CAD and 8K video production to advanced scientific modeling, the Threadripper PRO 9995WX handles everything effortlessly. It provides workstation users with server-class I/O bandwidth, memory throughput, and compute density—all in one chip.
AMD PRO Technologies — Secure, Manageable, Reliable
AMD Memory Guard: Real-time DRAM encryption protects against physical data theft.
AMD Secure Processor: Embedded hardware root of trust for system integrity.
Secure Boot & Firmware TPM: Defend against malicious firmware and OS-level threats.
DASH Manageability: Supports remote fleet management and system diagnostics.
Enterprise-Grade Longevity: Long-term stability, reliability, and lifecycle support for professional deployments.
Â
Specifications
| Category | Details |
| Processor Name | AMD Ryzenâ„¢ Threadripperâ„¢ PRO 9995WX |
| Product Family | Ryzen Threadripper PRO |
| Series | Ryzen Threadripper PRO 9000 WX-Series |
| Codename | Shimada Peak |
| Architecture | Zen 5 |
| Cores / Threads | 96 / 192 |
| Base Clock | 2.5 GHz |
| Max Boost Clock | Up to 5.4 GHz |
| L1 Cache | 7680 KB |
| L2 Cache | 96 MB |
| L3 Cache | 384 MB |
| Default TDP | 350W |
| Unlocked for Overclocking | Yes |
| CPU Core Technology | TSMC 4nm FinFET |
| I/O Die Technology | TSMC 6nm FinFET |
| Package Die Count | 13 |
| Socket | sTR5 |
| Chipset Support | WRX90, TRX50, Pro 695 |
| PCIe® Version | PCIe® 5.0 |
| PCIe® Lanes (Total/Usable) | 148 / 144 (128 usable as PCIe 5.0) |
| Memory Type | DDR5 RDIMM |
| Memory Channels | 8 |
| Memory Capacity | Up to 2TB |
| Memory Speed | Up to 6400 MT/s |
| ECC Support | Yes (Enabled by Default) |
| Graphics | Discrete GPU Required |
| Boost Technology | Precision Boost 2 |
| Supported Extensions | AES, AVX512, FMA3, SSE4.2, SHA, AMD-V, and more |
| Manageability | DASH Standard Support |
| Security Features | Memory Guard, Secure Boot, Secure Processor, Firmware TPM, VBS, NX bit, AES-NI |
| Thermal Solution (PIB) | Not Included |
| Max Operating Temp (Tjmax) | 95°C |
| Operating Systems | Windows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
| Product ID (Boxed) | 100-100001361WOF |
| PCIe® NVMe Support | RAID 0/1/5/10, Boot Support |
