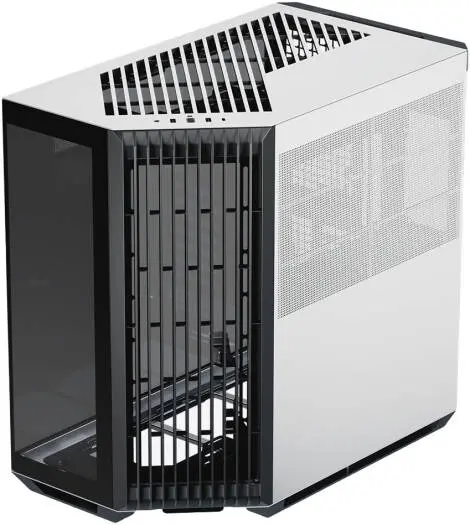

APNX V1-BW-v1 Glass Edition – Black & White

ATX Mid Tower | Dual-Chamber Layout | Panoramic Tempered Glass | Up to 360mm Radiator Support | Model: APCM-VI01003.M1

The APNX V1-BW-v1 Glass Edition combines a unique black-and-white dual-tone design with a modern dual-chamber architecture to deliver a clean, spacious, and high-performance PC building experience. Crafted from rigid SGCC steel with a premium ABS front panel and tempered-glass viewing window, this case focuses on airflow efficiency, ease of installation, and advanced hardware compatibility.

Its dual-chamber interior separates the PSU and cable routing from the main components, enabling a clean front showcase and improved thermals. With support for up to 10 cooling fans, triple 360mm radiators, high-end GPUs, and neat cable management, the V1-BW-v1 is ideal for gamers, creators, and PC enthusiasts who demand performance and style in equal measure.

Key Features

Striking Black & White Aesthetic

A balanced two-tone finish gives the case a distinctive, premium look that stands out in modern gaming and workstation setups.

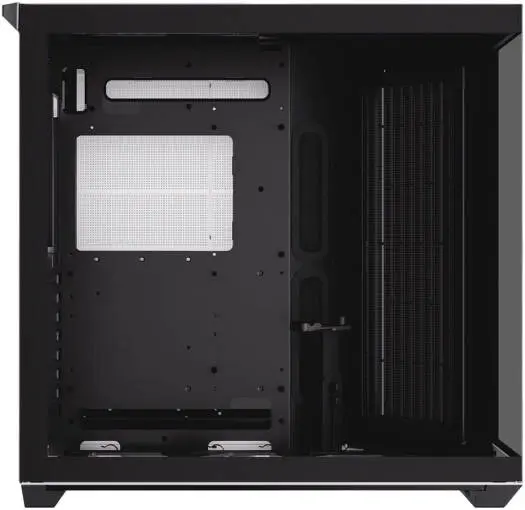

Dual-Chamber Design for Clean Builds

Separates PSU and cables from the main components to improve airflow and create a clutter-free showcase interior.

High Airflow and Cooling Flexibility

Supports up to ten fans and multiple 360mm AIO radiators for advanced cooling configurations.

Wide Hardware Compatibility

Room for GPUs up to 395 mm, CPU air coolers up to 170 mm, and ATX PSUs up to 220 mm.

Modern Front I/O Connectivity

Includes fast USB 3.2 Gen 2×2 Type-C and dual USB 3.2 Gen 1 Type-A ports for convenient high-speed connections.

Advanced Cable Management

Features 90 mm of dedicated cable routing depth for tidy and professional builds.

Specifications

Model: V1-BW-v1

Case Type: Mid Tower

Color: Black & White

Body Material: SGCC Steel

Front Panel Material: ABS

Steel Thickness: 0.8 mm

Motherboard Support

• ATX

• Micro-ATX

• Mini-ITX

Dimensions

Internal: 290 × 460 × 480 mm

External: 290 × 485.5 × 500 mm

Storage Support

3.5" Drive Bays:

• Up to 2 (supports 3.5"/2.5")

2.5" Drive Bays:

• Up to 6 (4 × 2.5" + 2 × 2.5"/3.5")

Expansion Slots

• 7

Hardware Clearance

• GPU Length: Up to 395 mm (without front-right radiator)

• CPU Cooler Height: Up to 170 mm

• PSU Length: Up to 220 mm

Air Cooling Support

Front-Right:

• 3 × 120 mm

• 2 × 140 mm

• 2 × 160 mm

Top:

• 3 × 120 mm

• 2 × 140 mm

Bottom:

• 3 × 120 mm

• 2 × 140 mm

Rear:

• 1 × 120 mm

Liquid Cooling Support

Front-Right:

120 / 140 / 240 / 280 / 360 mm radiators

Top:

120 / 140 / 240 / 280 / 360 mm radiators

Bottom:

120 / 140 / 240 / 280 / 360 mm radiators

(140/280 only when motherboard is mounted higher; bottom liquid cooling not recommended in some configurations)

Rear:

120 mm radiator

Dust Filters

• Top (Built-in)

• Front-Right (Removable)

• Side (Removable)

• Bottom (Removable)

Front I/O Ports

• 1 × USB 3.2 Gen 2×2 Type-C

• 2 × USB 3.2 Gen 1 Type-A

• Audio & Mic
