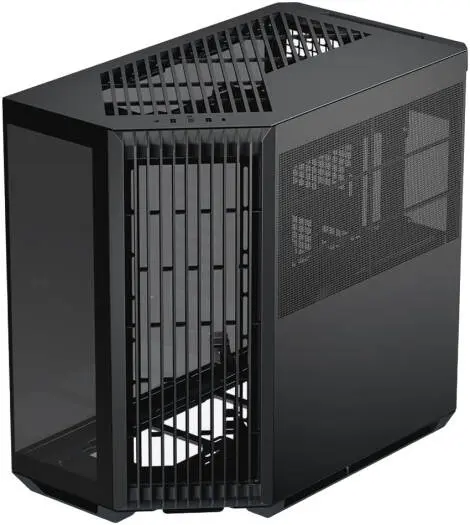

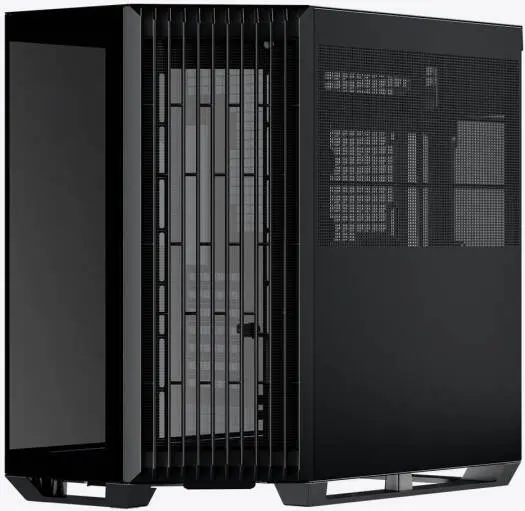

APNX V1-BK-v1 Glass Edition – Black

ATX Mid Tower | Dual-Chamber Layout | Panoramic Tempered Glass | Up to 360mm Radiator Support | Model: APCM-VI01003.11

The APNX V1-BK-v1 Glass Edition is a modern dual-chamber mid-tower case engineered for clean builds, efficient airflow, and high-end hardware support. With its all-black premium finish, rigid SGCC steel body, ABS front panel, and panoramic tempered-glass side window, this case delivers both durability and an elegant showcase design.

Its dual-chamber structure separates power supply and cable routing from the main hardware, improving airflow and creating a tidy, professional-looking build. With support for up to 10 fans, triple 360mm radiators, long graphics cards, and advanced cable management, the V1-BK-v1 is built for gamers, creators, and PC enthusiasts who want maximum performance and clean aesthetics.

Key Features

Premium Black Finish

A sleek, modern all-black aesthetic that fits perfectly into gaming setups, workstations, and minimalist PC builds.

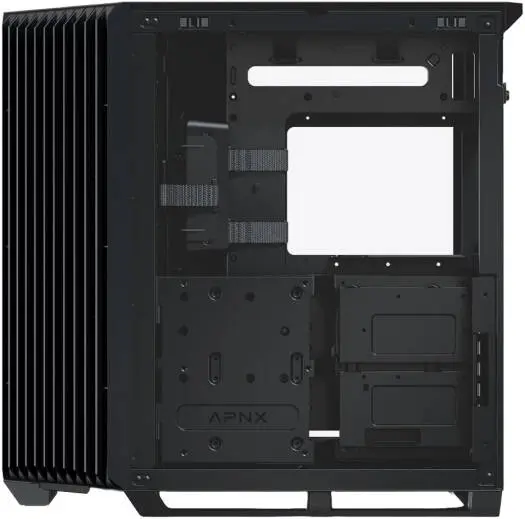

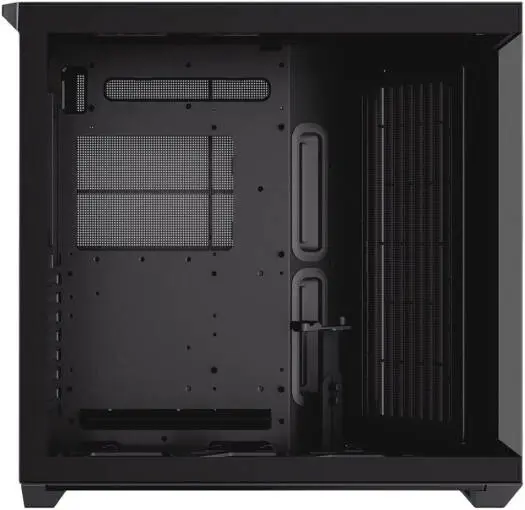

Dual-Chamber Interior

Keeps cables and PSU hidden away for better airflow and a clean internal layout.

High Airflow Capability

Supports up to ten fans and multiple liquid-cooling radiators for extreme cooling configurations.

Spacious Hardware Support

Fits high-end GPUs up to 395 mm, large CPU coolers up to 170 mm, and full-size ATX power supplies.

Modern Front I/O Connectivity

Equipped with fast USB-C (Gen 2×2) and dual USB 3.2 Type-A ports for convenient access.

Advanced Cable Management

Offers 90 mm of cable routing depth for a tidy and efficient assembly.

Specifications

Model: V1-BK-v1

Case Type: Mid Tower

Color: Black

Body Material: SGCC Steel

Front Panel Material: ABS

Steel Thickness: 0.8 mm

Motherboard Support

• ATX

• Micro-ATX

• Mini-ITX

Dimensions

Internal: 290 × 460 × 480 mm

Overall: 290 × 485.5 × 500 mm

Storage Support

3.5" Drive Bays:

• Up to 2 (supports 3.5"/2.5")

2.5" Drive Bays:

• Up to 6 (4 × 2.5" + 2 × 2.5"/3.5")

Expansion Slots

• 7

Clearance

• GPU Length: Up to 395 mm (without front-right radiator)

• CPU Cooler Height: Up to 170 mm

• PSU Length: Up to 220 mm (including cables)

Air Cooling Support

Front-Right:

3 × 120 mm

2 × 140 mm

2 × 160 mm

Top:

3 × 120 mm

2 × 140 mm

Bottom:

3 × 120 mm

2 × 140 mm

Rear:

1 × 120 mm

Liquid Cooling Support

Front-Right:

120 / 140 / 240 / 280 / 360 mm radiators

Top:

120 / 140 / 240 / 280 / 360 mm radiators

Bottom:

120 / 140 / 240 / 280 / 360 mm radiators

(140/280 mm allowed only when motherboard is installed in upper position. Bottom liquid cooling not recommended in certain configurations.)

Rear:

120 mm radiator

Dust Filters

• Top (Built-in)

• Front-Right (Removable)

• Side (Removable)

• Bottom (Removable)

Front I/O Ports

• 1 × USB 3.2 Gen 2×2 Type-C

• 2 × USB 3.2 Gen 1 Type-A

• Audio & Mic

Cable Management

• 90 mm dedicated routing depth

Power Supply Support

• ATX PSU up to 220 mm (optional)
