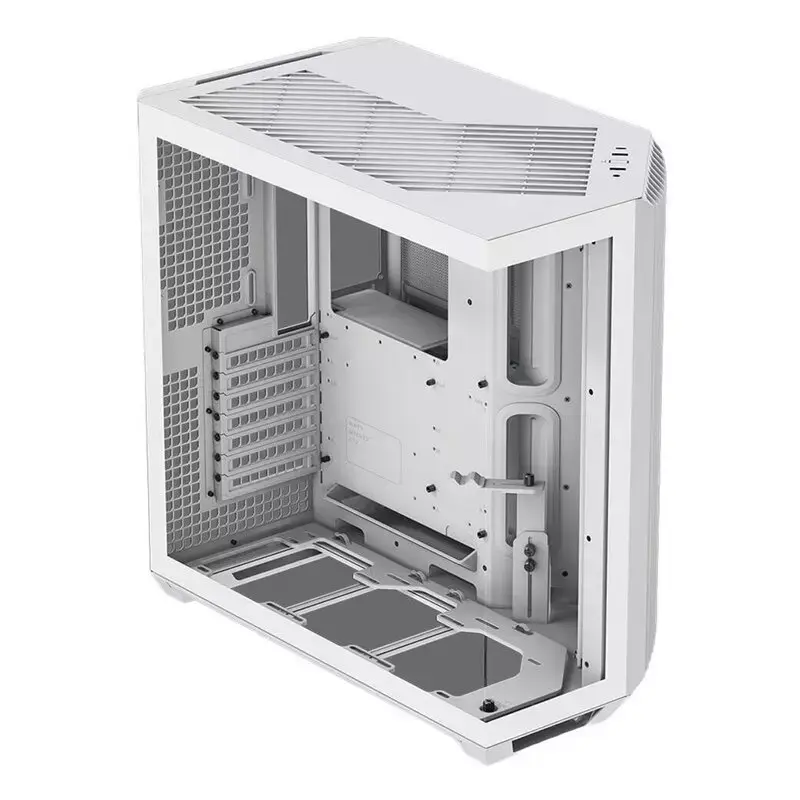

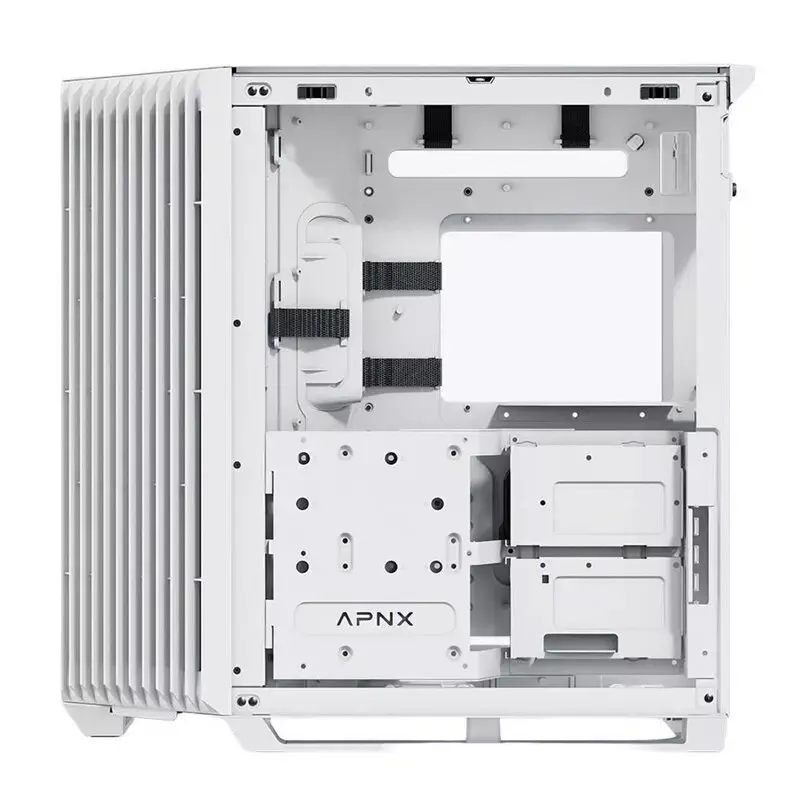

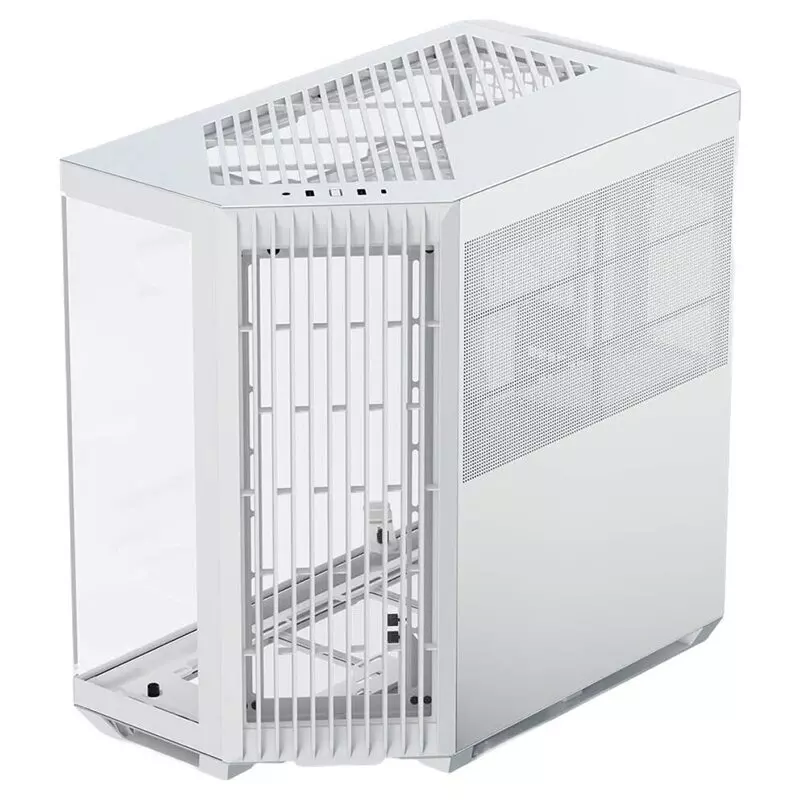

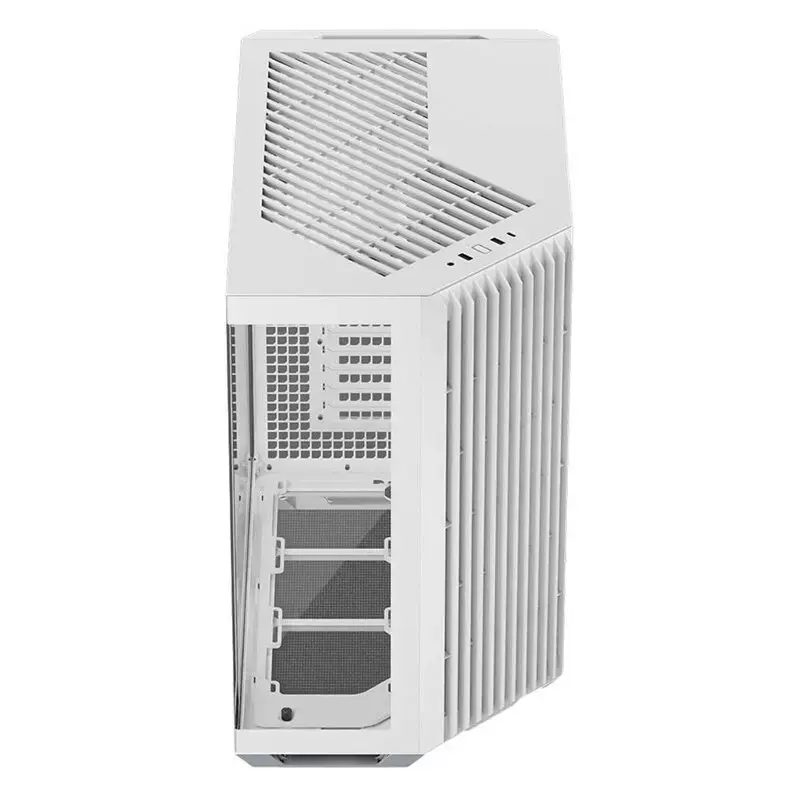

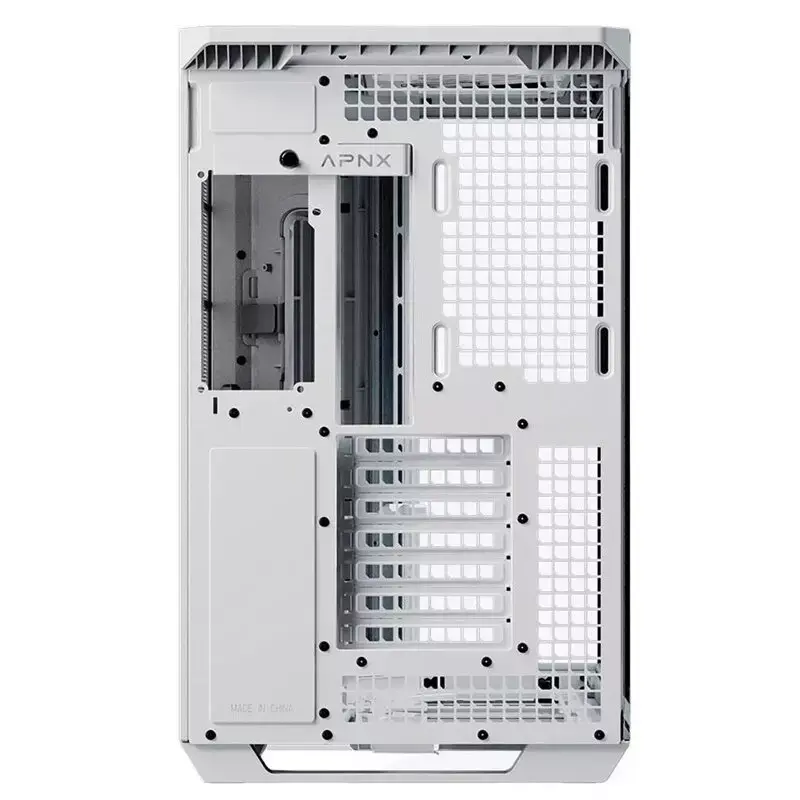

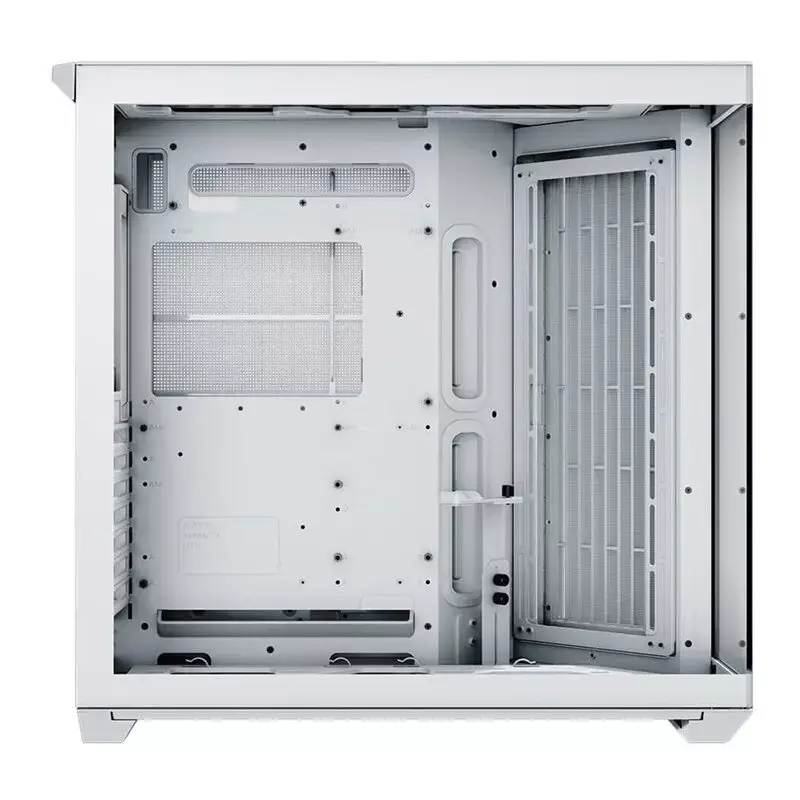

APNX V1-WT-V1 Glass Edition – White

ATX Mid Tower | Dual-Chamber Design | Panoramic Tempered Glass | Up to 360mm Radiator Support | Model: APCM-VI01003.21

The APNX V1-WT-V1 Glass Edition is a modern white dual-chamber ATX mid-tower case engineered for high airflow, clean aesthetics, and exceptional hardware compatibility. With a minimalist white finish, premium materials, and a panoramic tempered-glass side panel, it is designed to showcase your build while maintaining excellent thermal performance.

Built from durable SGCC steel with a precision-molded ABS front panel, the V1-WT-V1 offers strong structural integrity and a stylish, modern appearance. Its dual-chamber layout separates the PSU and cables from the main components, creating an organized interior with improved airflow for high-performance gaming PCs.

With support for up to ten fans, triple 360mm radiators, large GPUs, and advanced cable management, the V1-WT-V1 is an ideal choice for both enthusiasts and professional builders seeking versatility and clean, optimized layouts.

Key Features

Clean White Aesthetic

Premium white finish with panoramic tempered-glass panels for a modern, stylish appearance suitable for gaming setups, workstations, or RGB showcase builds.

Dual-Chamber Architecture

Separates the PSU and cables from main components for improved cooling, organization, and easier cable management.

High Airflow Cooling Options

Supports up to ten fans and multiple 360mm radiators, enabling sophisticated air or liquid-cooling configurations.

Wide Hardware Compatibility

Supports GPUs up to 395 mm, CPU coolers up to 170 mm, and ATX-size PSUs up to 220 mm.

Modern I/O Connectivity

Includes high-speed USB 3.2 Gen 2×2 Type-C and dual USB 3.2 Gen 1 Type-A ports.

Advanced Cable Management

90mm of routing space for clean, clutter-free builds.

Specifications

Model: V1-WT-V1

Form Factor: Mid Tower

Color: White

Body Material: SGCC Steel

Front Panel Material: ABS

Steel Thickness: 0.8 mm

Motherboard Support

• ATX

• Micro-ATX

• Mini-ITX

Dimensions

• External: 290 × 485.5 × 500 mm

• Internal: 290 × 460 × 480 mm

Storage Support

2.5" Drive Bays:

• Up to 6 (4 × 2.5" + 2 × 2.5"/3.5")

3.5" Drive Bays:

• Up to 2 (2 × 3.5"/2.5")

Expansion Slots

• 7

Clearance

• GPU Length: Up to 395 mm (without front-right radiator)

• CPU Cooler Height: Up to 170 mm

• PSU Length: Up to 220 mm

Air Cooling Support

Bottom:

• 3 × 120 mm or 2 × 140 mm

Front-Right:

• 3 × 120 mm

• 2 × 140 mm

• 2 × 160 mm

Rear:

• 1 × 120 mm

Top:

• 3 × 120 mm

• 2 × 140 mm

Liquid Cooling Support

Bottom:

120 / 140 / 240 / 280 / 360 mm

Front-Right:

120 / 140 / 240 / 280 / 360 mm

Rear:

120 mm

Top:

120 / 140 / 240 / 280 / 360 mm
