Product Description

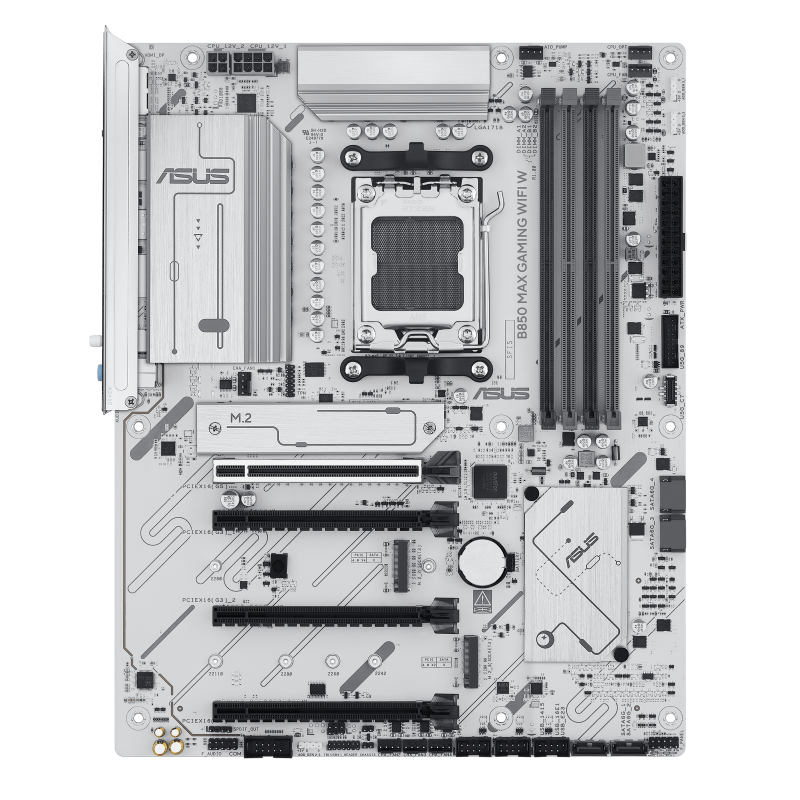

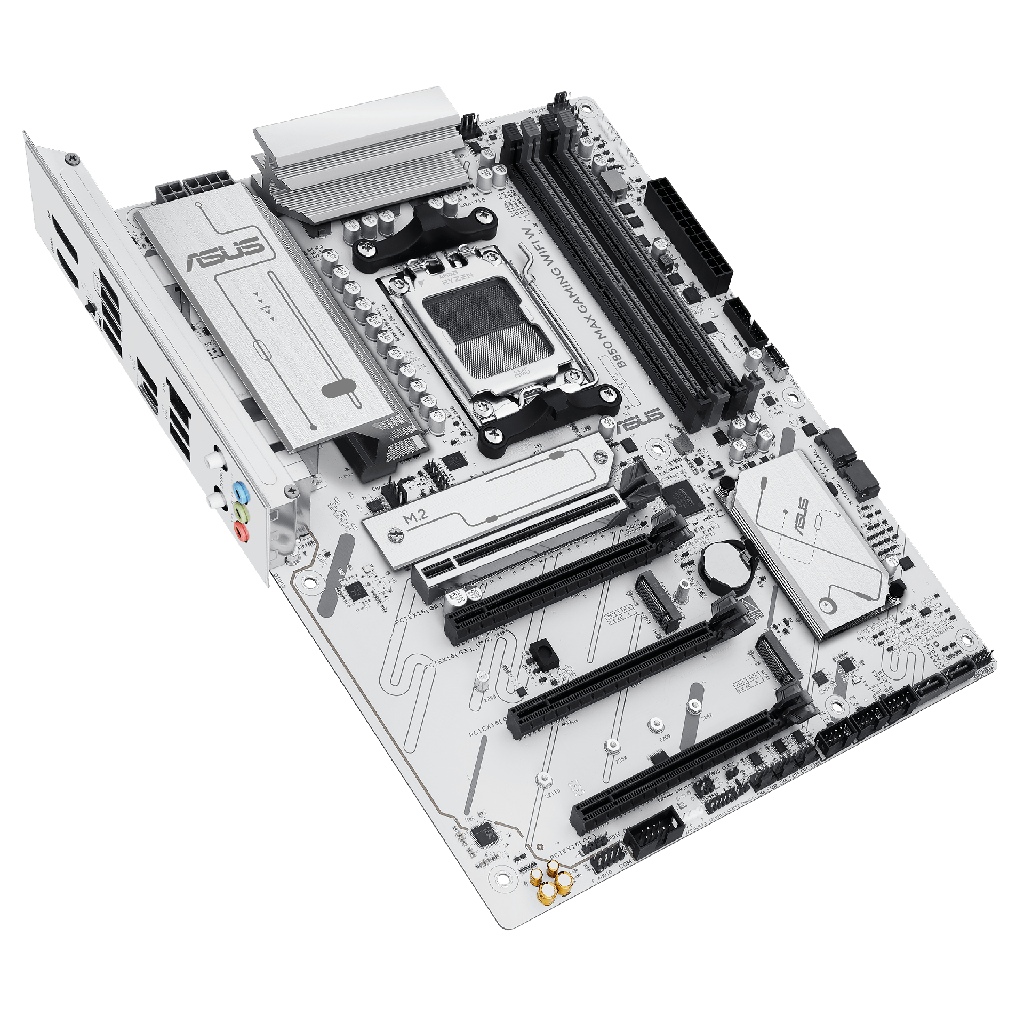

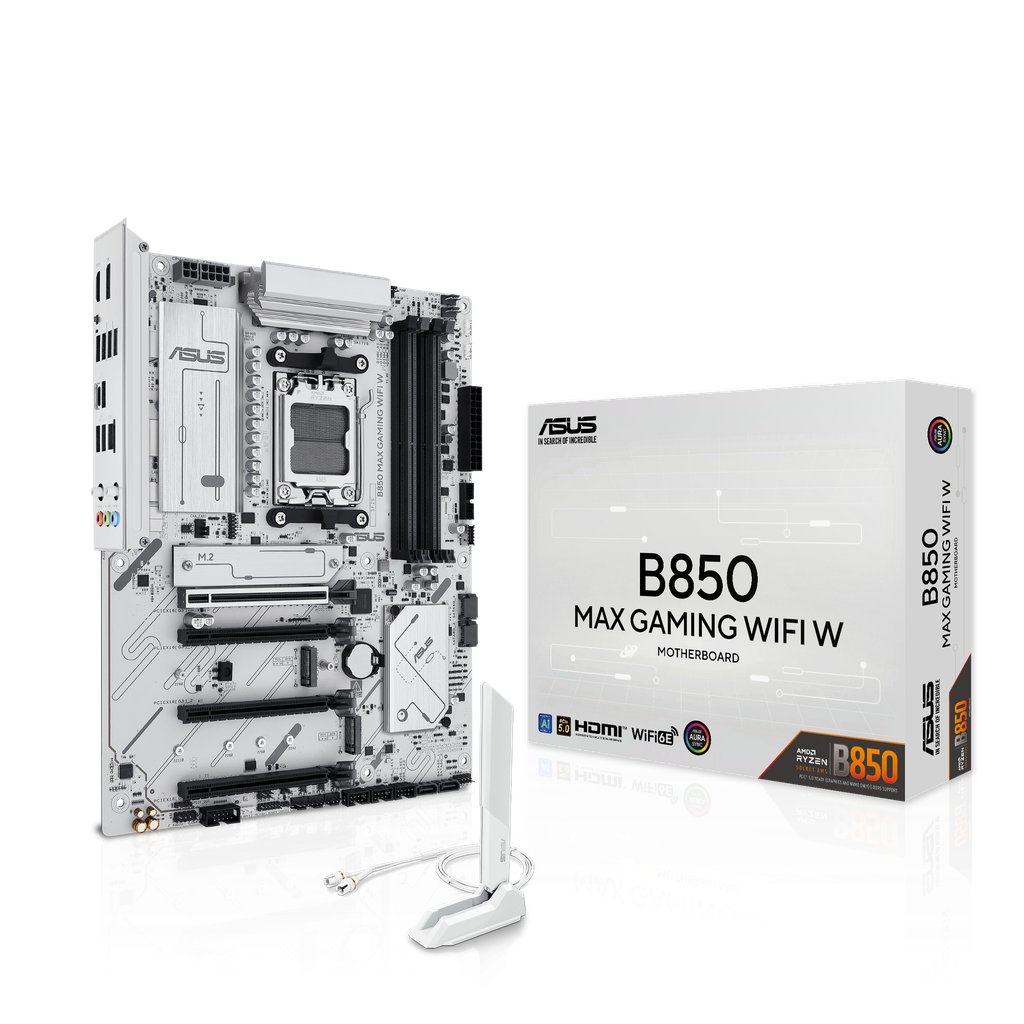

 B850 MAX Gaming W
Â
Specifications
| Model | B850 MAX GAMING WIFI W |
| CPU Support | AMD Socket AM5: Ryzenâ„¢ 9000 / 8000 / 7000 Series (check ASUS site for support) |
| Chipset | AMD B850 |
| Memory | 4 × DIMM slots, up to 256GB DDR5, up to 8000+ MT/s (OC) Dual channel, ECC & Non-ECC, Supports EXPO™ & AEMP, On-Die ECC |
| Graphics | 1 × DisplayPort 1.4 (max 8K@30Hz) 1 × HDMI 2.1 (max 4K@60Hz) |
| Expansion Slots | Ryzen™ 9000/7000: 1 × PCIe 5.0 x16 Ryzen™ 8000: 1 × PCIe 4.0 x16 (x8/x4) B850 Chipset: 1 × PCIe 4.0 x16 (x4), 2 × PCIe 3.0 x16 (x1, share SATA6G bandwidth) |
| Storage | 3 × M.2 slots, 4 × SATA 6Gb/s ports M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) M.2_2: PCIe 4.0 x4 (Ryzen 9000/7000/8000) M.2_3: PCIe 4.0 x2 (B850) RAID support varies by CPU |
| Ethernet | Realtek 2.5Gb Ethernet + ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2×2, 2.4/5/6GHz, Windows 11 only) Bluetooth® v5.3 |
| USB (Rear I/O) | 4 × USB 10Gbps (3 × Type-A, 1 × Type-C) 2 × USB 5Gbps (Type-A) 2 × USB 2.0 (Type-A) |
| USB (Front I/O) | 1 × USB 5Gbps Type-C 1 × USB 5Gbps header (2 ports) 3 × USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 HD Audio CODEC Jack-detection, Multi-streaming, RetaskingUp to 24-bit/192 kHz playbackAudio shielding, premium caps, dedicated PCB layers |
| Back Panel I/O | 1 × USB 10Gbps Type-C, 3 × USB 10Gbps Type-A2 × USB 5Gbps, 2 × USB 2.01 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module1 × Realtek 2.5Gb LAN, 3 × Audio jacks, 1 × BIOS FlashBack™ button |
| Internal I/O | 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fans Power: 24-pin, 8-pin +12V, 4-pin +12V Storage: 3 × M.2, 4 × SATA USB: 1 × USB-C 5Gbps, 1 × USB 5Gbps header (2 ports), 3 × USB 2.0 headers (6 ports) Misc: 3 × ARGB Gen2, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF, SPI TPM, System Panel, Thunderbolt™ (USB4®) header |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless I/O) Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) Thermal Solution: Flexible M.2 heatsink, VRM heatsink EZ DIY: BIOS FlashBackâ„¢, Pre-mounted I/O shield, SafeSlot Aura Sync: Addressable RGB Gen 2 headers |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Norton 360 (60-day), WinRAR (40-day) |
| UEFI BIOS | CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey, 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

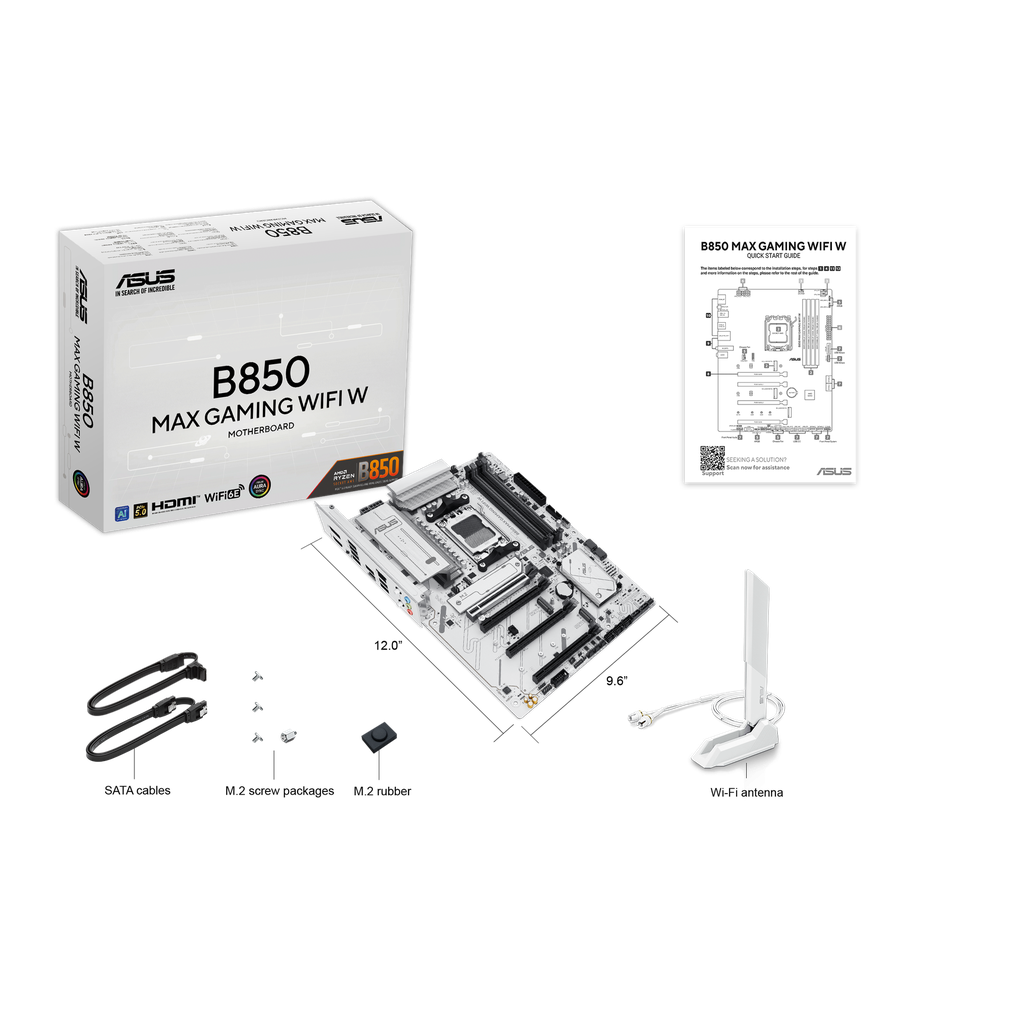

| Accessories | 2 × SATA 6Gb/s cables, 1 × Wi-Fi Q-Antenna, 1 × M.2 rubber package, 3 × M.2 screw packages, 1 × Quick start guide |
| OS Support | Windows® 11 / 10 64-bit |
| Form Factor | ATX, 12 × 9.6 in (30.5 × 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS B850 MAX Gaming WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3, White | 90MB1M10-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS B850 MAX Gaming WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3, White | 90MB1M10-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
B850 MAX Gaming WIFI
Shipping Weight
1.20 Kg
Shipping Dimensions
5.00 cm x 27.50 cm x 27.00 cm
Chipset
AMD B850
Form Factor
ATX
M.2 Slots
3
Maximum Memory
256 GB
Memory Slots
4
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
1
Socket
AM5
