Product Description

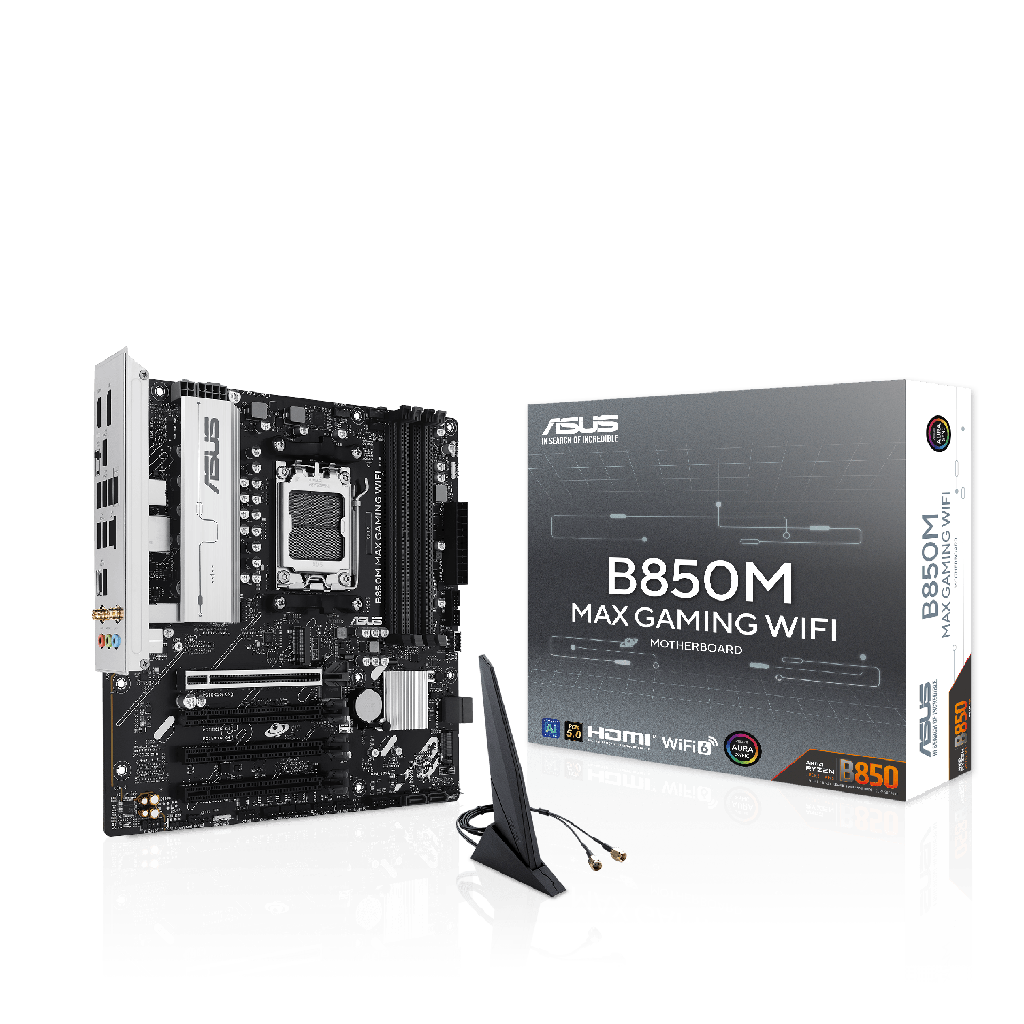

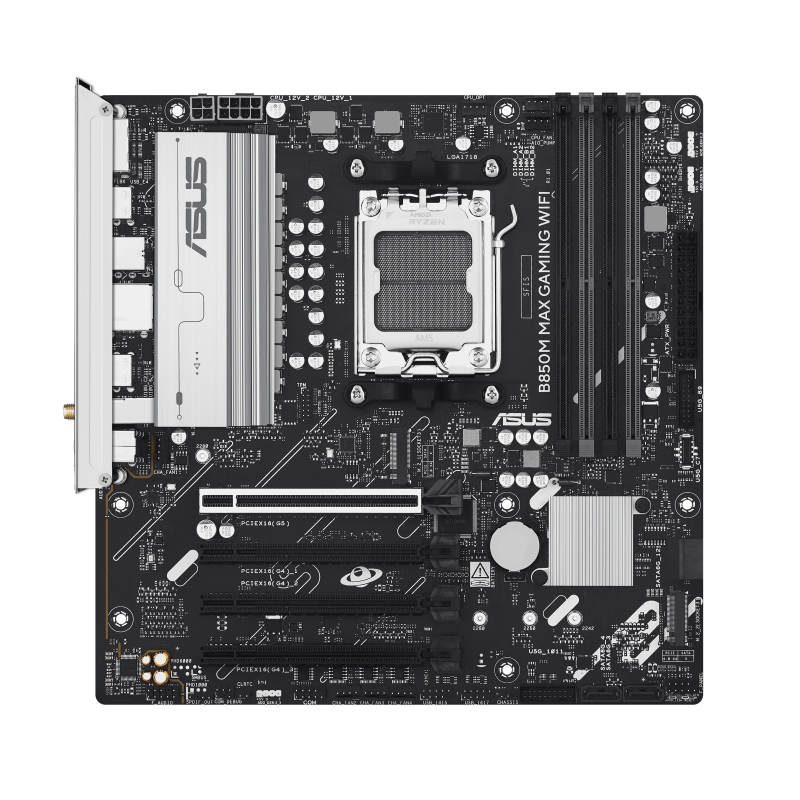

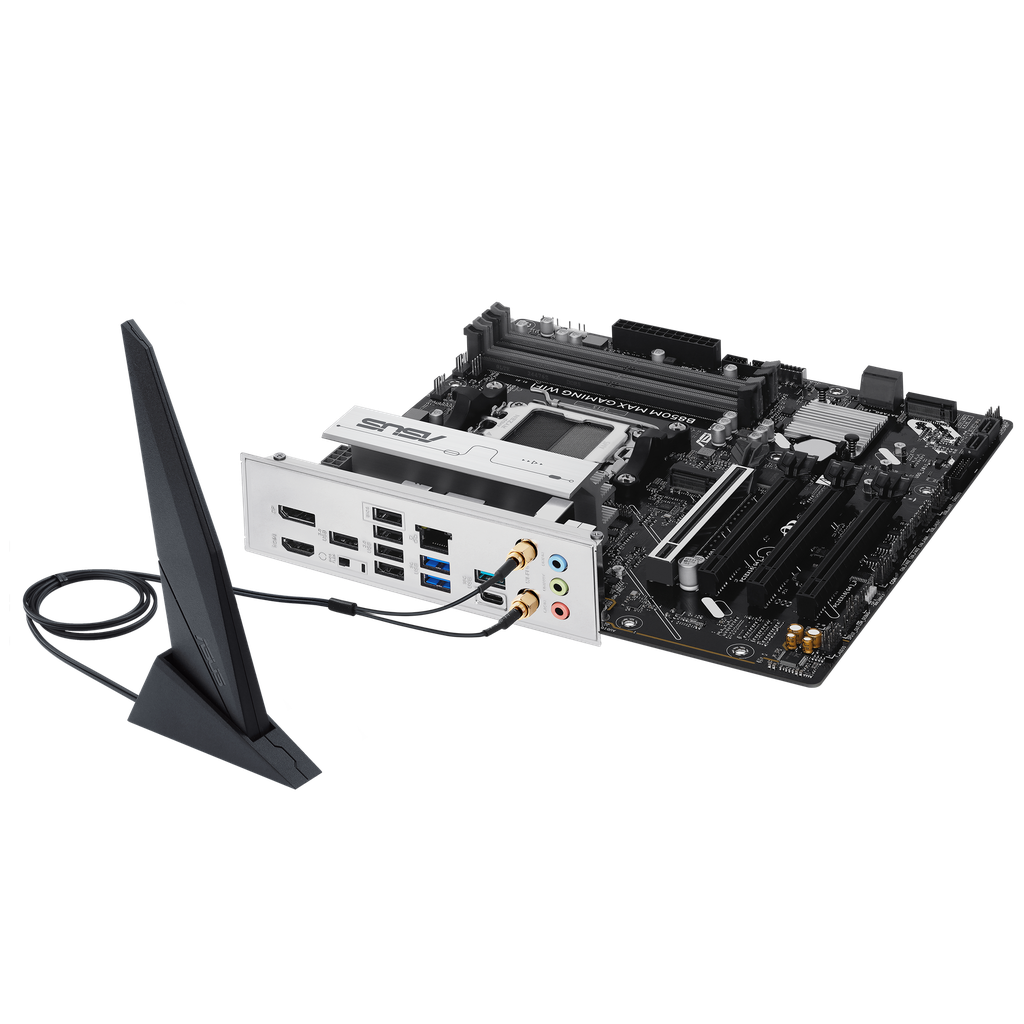

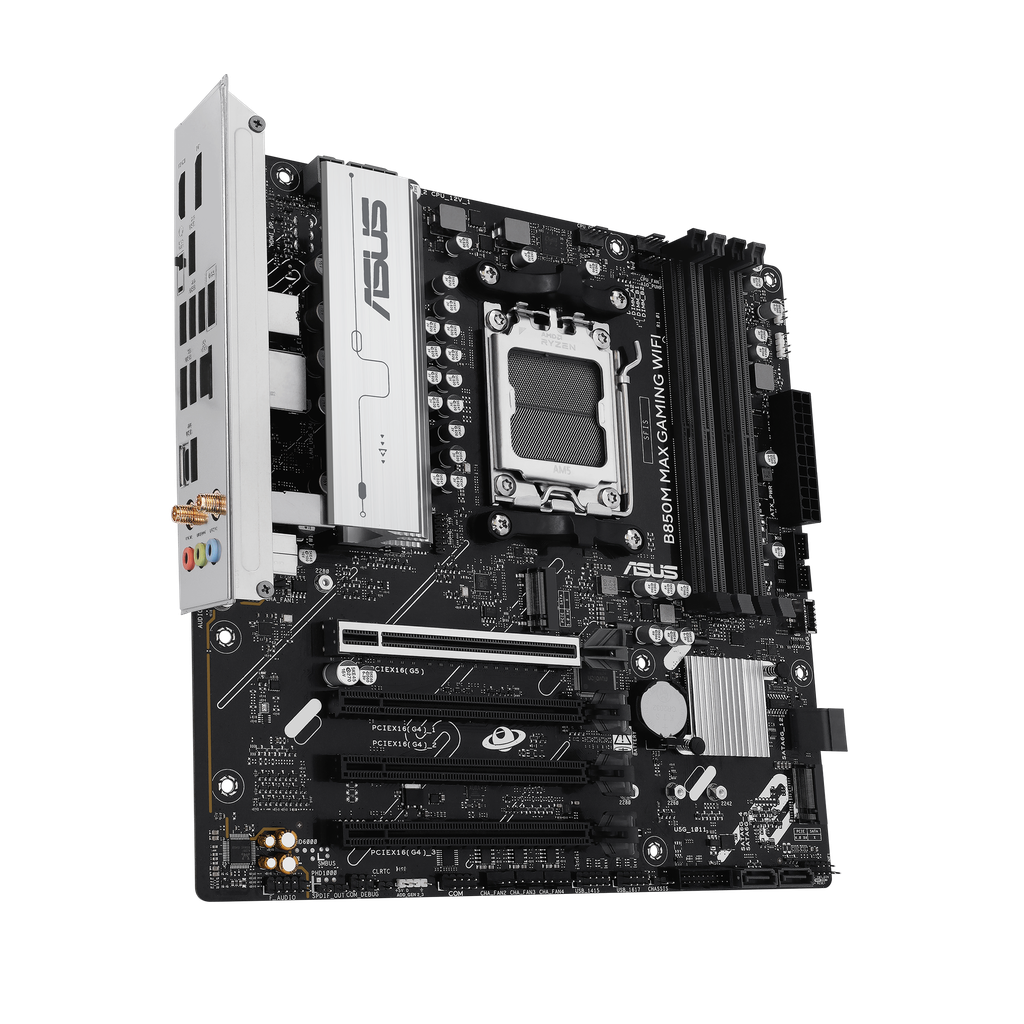

B850M MAX Gaming WiFiÂ
Â
Specifications
Â
| Model | B850M MAX GAMING WIFI |
| CPU Support | AMD Socket AM5: Ryzenâ„¢ 9000 / 8000 / 7000 Series (check support list on ASUS site) |
| Chipset | AMD B850 |
| Memory | 4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC) Dual channel, ECC & Non-ECC Un-buffered DIMM Supports EXPO™, AEMP, On-Die ECC |
| Graphics | 1 × DisplayPort 1.4 (max 8K@30Hz) 1 × HDMI 2.1 (max 4K@60Hz) *Depends on CPU |
| Expansion Slots | Ryzen™ 9000 / 7000: 1 × PCIe 5.0 x16, 3 × PCIe 4.0 x16 (x1 mode) Ryzen™ 8000: 1 × PCIe 4.0 x16 (x8/x4), 3 × PCIe 4.0 x16 (x1 mode) |
| Storage | 3 × M.2, 4 × SATA 6Gb/s M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x2 RAID support varies by CPU |
| Ethernet | Realtek 1Gb Ethernet + ASUS LANGuard |
| Wireless & BT | Wi-Fi 6 (1×1, 2.4/5GHz) Bluetooth® v5.4 |
| USB (Rear I/O) | 2 × USB 10Gbps (1 × Type-A, 1 × Type-C) 2 × USB 5Gbps (Type-A) 5 × USB 2.0 (Type-A) |
| USB (Front I/O) | 1 × USB 5Gbps (Type-C) 2 × USB 5Gbps headers (4 ports) 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC} Jack-detection, Multi-streaming, Retasking Up to 24-bit/192 kHz playback Audio shielding, Premium caps, Dedicated layers |

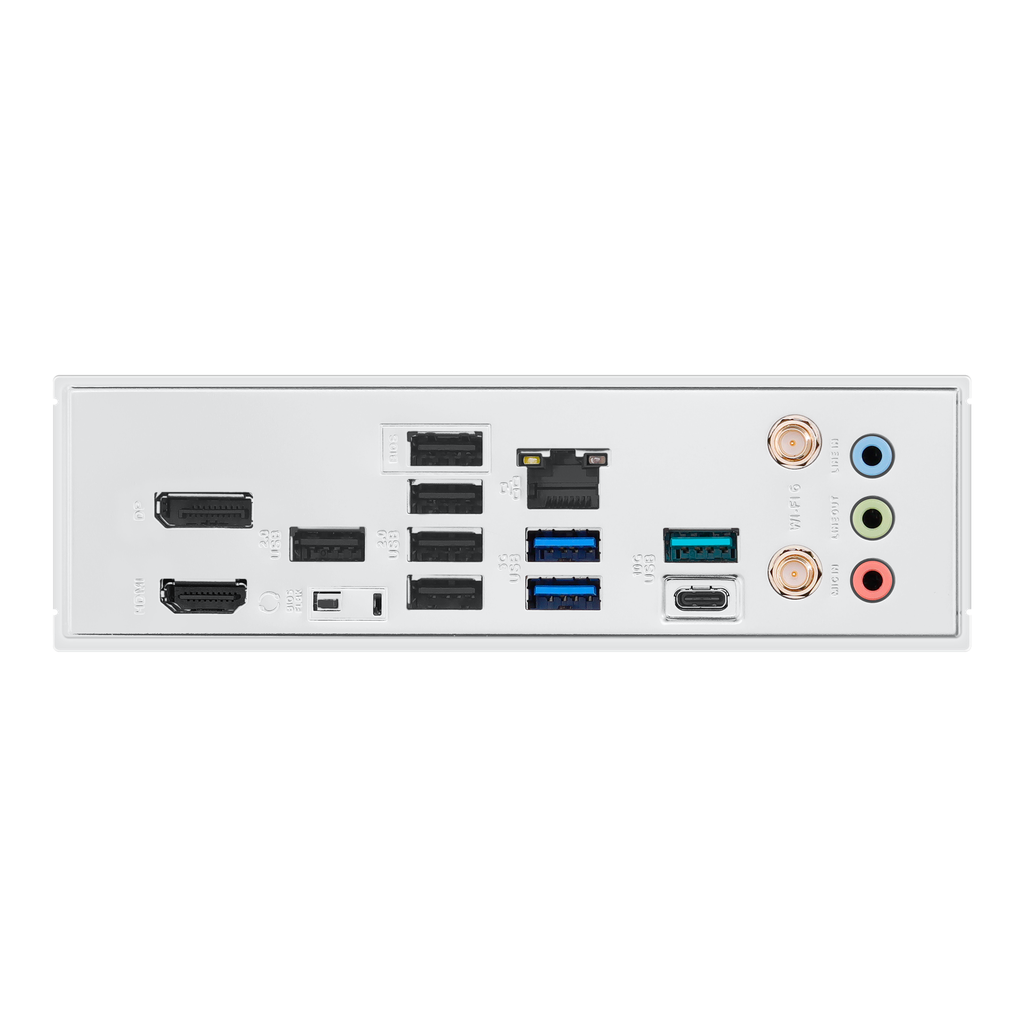

| Back Panel I/O | 2 × USB 10Gbps, 2 × USB 5Gbps, 5 × USB 2.0 1 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module 1 × Realtek 1Gb LAN, 3 × Audio jacks 1 × BIOS FlashBack™ button |
| Internal I/O | Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fan Power: 24-pin Main, 8-pin +12V, 4-pin +12V Storage: 3 × M.2, 4 × SATA USB: 1 × USB-C 5Gbps, 2 × USB 5Gbps headers, 2 × USB 2.0 headers Misc: 3 × ARGB Gen 2, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF, SPI TPM, System Panel |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, Stainless I/O) ASUS Q-Design (Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (VRM heatsink) EZ DIY (Pre-mounted I/O, BIOS FlashBackâ„¢ button/LED) Aura Sync RGB (ARGB Gen 2 headers) |
| Software | Armoury Crate, Aura Creator/Sync, Fan Xpert 2+, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Norton 360 (60-day trial), WinRAR (40-day trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey |
| Manageability | WOL by PME, PXE |

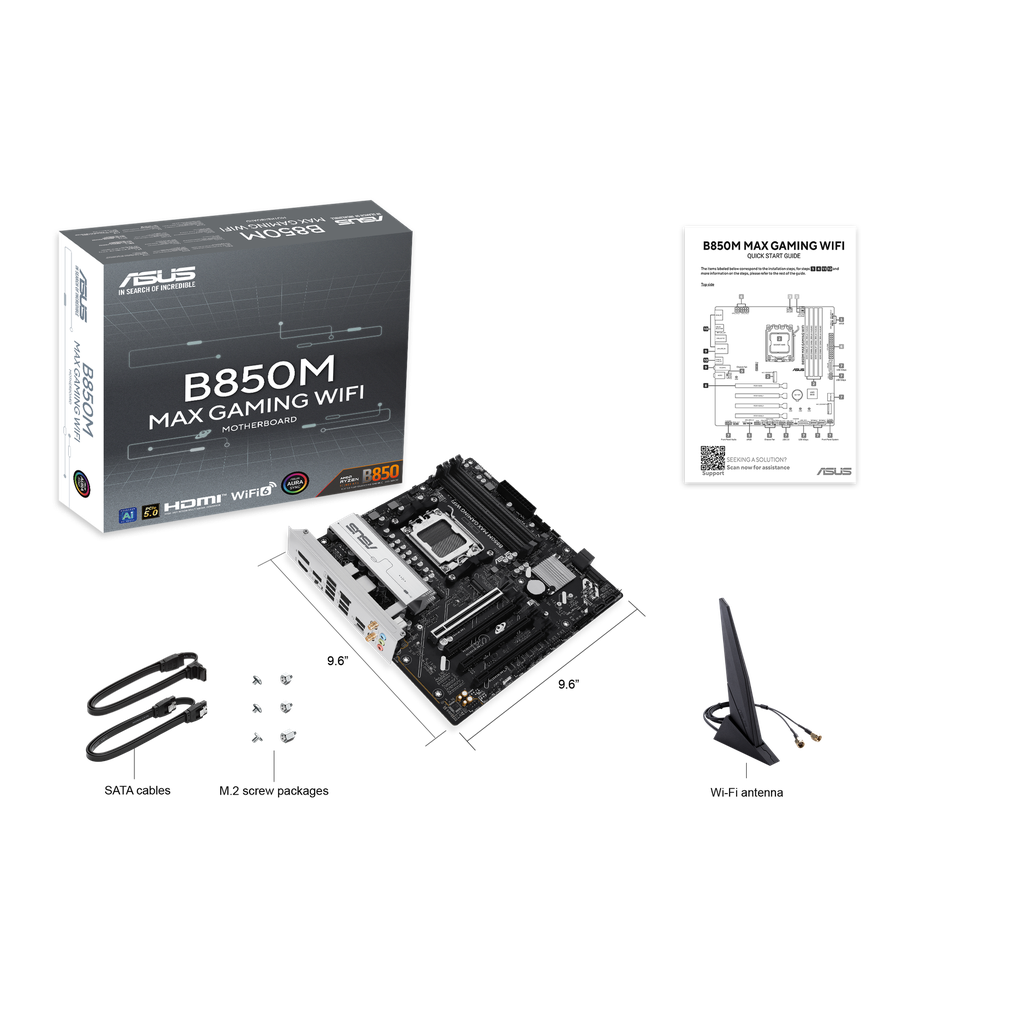

| Accessories | 2 × SATA cables 1 × Wi-Fi antenna 2 × M.2 screw packages 1 × Quick Start Guide |
| OS Support | Windows® 11 / 10 64-bit |
| Form Factor | mATX (24.4 × 24.4 cm / 9.6 × 9.6 in) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS B850M MAX Gaming WiFi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi & BT 5.4 | 90MB1LL0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS B850M MAX Gaming WiFi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi & BT 5.4 | 90MB1LL0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Shipping Weight
1.20 Kg
Chipset
AMD B850
Form Factor
Micro ATX
Memory Slots
4
Memory Speed
--
PCI Express x16
1
Model
B850M MAX Gaming WiFi
Shipping Dimensions
5.00 cm x 27.50 cm x 27.00 cm
M.2 Slots
3
Maximum Memory
256 GB
Memory Type
DDR5
Multi-GPU Support
--
Socket
AM5
