Product Description

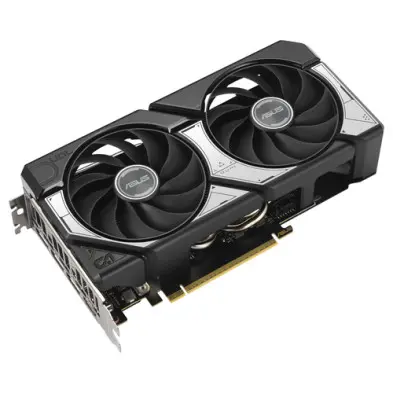

ASUS Dual GeForce RTXâ„¢ 5060 Ti OC Edition 8GB GDDR7
Overview
The ASUS Dual GeForce RTXâ„¢ 5060 Ti OC Edition 8GB GDDR7 redefines compact GPU performance with next-generation NVIDIA Ada architecture, lightning-fast GDDR7 memory, and dual Axial-tech fans. Engineered for small form-factor (SFF) builds, it combines high power efficiency, whisper-quiet cooling, and the raw performance needed for modern 4K gaming and AI-enhanced workflows.
Built with Auto-Extreme manufacturing, dual ball-bearing fans, and a vented metal backplate, the RTX 5060 Ti delivers exceptional durability and smooth gameplay in a sleek 2.5-slot design.
Key Features
 Advanced Cooling & Design
Dual Axial-tech Fans: Longer blades and a smaller hub increase downward air pressure for better cooling.
0dB Technology: Fans stop completely below 50°C for silent operation during light workloads.
Dual Ball Bearings: Offer up to twice the lifespan of standard sleeve-bearing fans.
2.5-Slot Thermal Solution: Optimized shroud and heatpipe layout maximize cooling within a compact footprint.

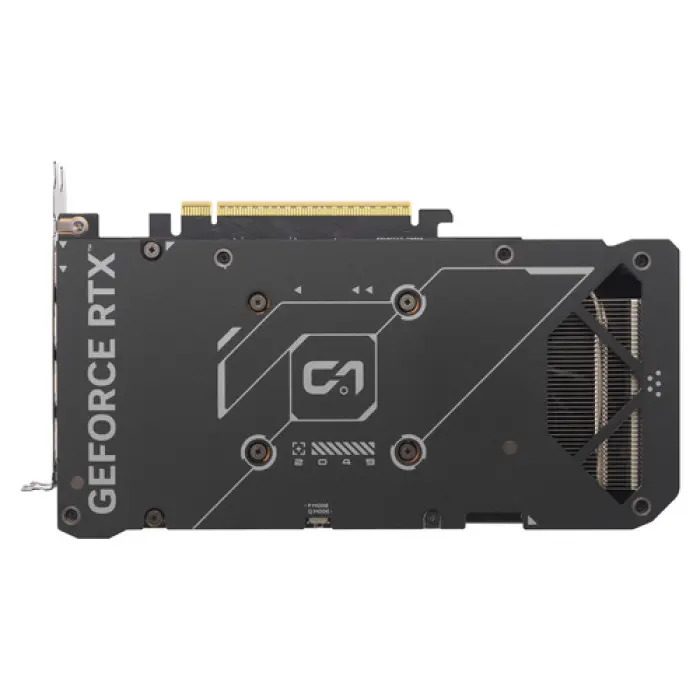

Vented Metal Backplate: Enhances heat dissipation and structural rigidity.
SFF Ready: Fits perfectly in small form-factor builds without compromising power or stability.
 Power & Performance
NVIDIA Ada Lovelace Architecture: Delivering cutting-edge performance and efficiency.
8GB GDDR7 Memory: High-bandwidth next-gen VRAM for advanced gaming and creation.
PCI Express 5.0 Interface: Doubles data throughput compared to PCIe 4.0 for next-gen compatibility.
AI Acceleration: Powered by NVIDIA DLSS 3.5 and advanced Tensor Cores.
Ray Tracing: Real-time cinematic rendering for realistic lighting and reflections.
NPU Performance: Up to 767 TOPs of AI compute power.
 Engineering & Reliability
Auto-Extreme Technology: Fully automated manufacturing ensures higher reliability and reduced environmental impact.
Stainless-Steel Bracket & GPU Guard: Strengthened structure reduces PCB flex and improves corrosion resistance.
Dual BIOS Mode: Choose between Performance (cooler) or Quiet (low noise) operation.
 Next-Gen Gaming & Creation
NVIDIA Reflex: Ultra-low latency for competitive esports gaming.
NVIDIA Studio Support: Optimized for creative applications such as Blender, DaVinci Resolve, and Adobe Suite.
NVIDIA G-SYNC & HDR Ready: Tear-free, smooth visuals with vivid color contrast.
8K Output Support: Up to 7680×4320 resolution across 4 displays.
Specifications
| Category | Details |
| GPU | NVIDIA GeForce RTXâ„¢ 5060 Ti |
| CUDA Cores | 4608 |
| Boost Clock (Gaming Mode) | 2602 MHz |
| Boost Clock (OC Mode) | 2632 MHz |
| Architecture | Ada Lovelace |
| Memory | 8 GB GDDR7 |
| Memory Bus | 128-bit |
| Memory Speed | 28 Gbps |
| Interface | PCI Express 5.0 |
| Maximum Resolution | 7680 × 4320 (8K UHD) |
| Display Outputs | 3 × DisplayPort 2.1b • 1 × HDMI 2.1b |
| Max Displays Supported | 4 |
| Cooling Type | Dual Axial-tech Fans (Active Cooling) |
| Fan Bearings | Dual Ball Bearings |
| Slot Size | 2.5 slots |
| Form Factor | SFF-Ready (Compact Build) |
| Color | Black / Grey |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550 W |
| AI Compute Power | Up to 767 TOPs |
| Dimensions (L × D × H) | 229 × 50 × 120 mm |
| Weight | 656 g |
| Operating Systems | Windows 10 / 11 (64-bit) |
| HDCP Version | 2.3 |

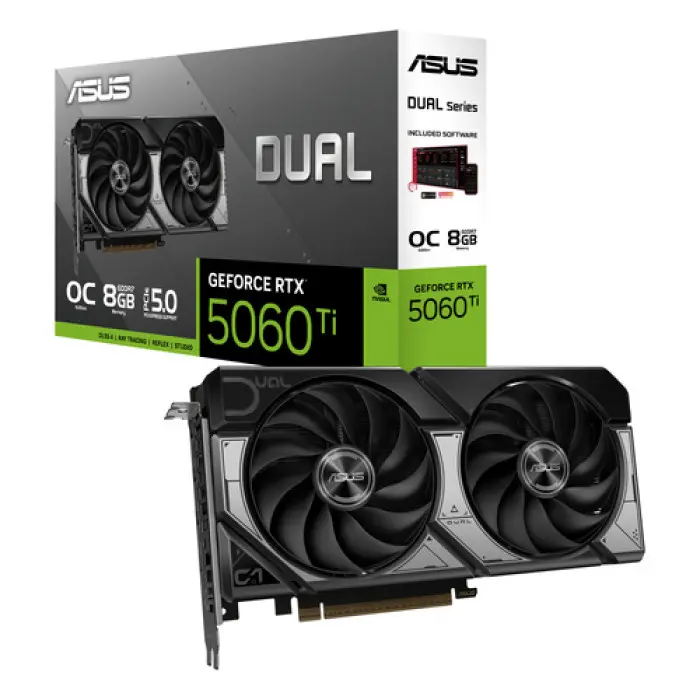

| Packaging | Retail box with manual |
| Warranty | Manufacturer Warranty: 3 Years |
