Product Description

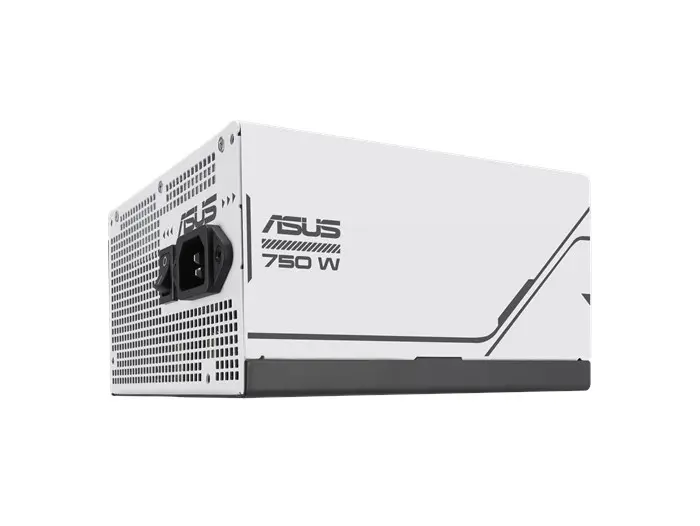

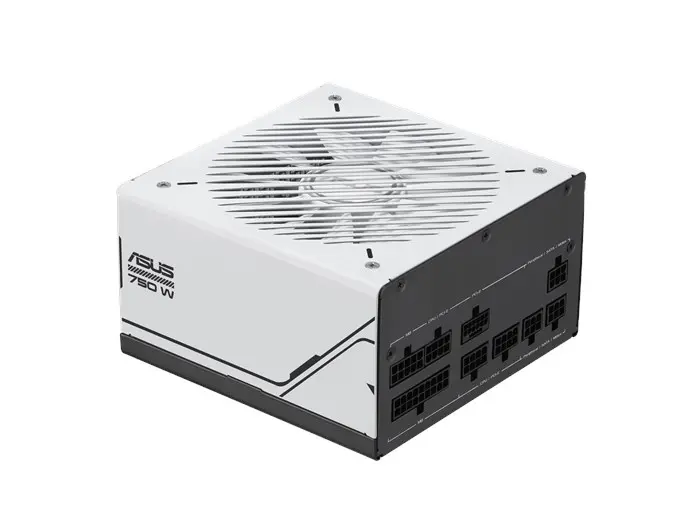

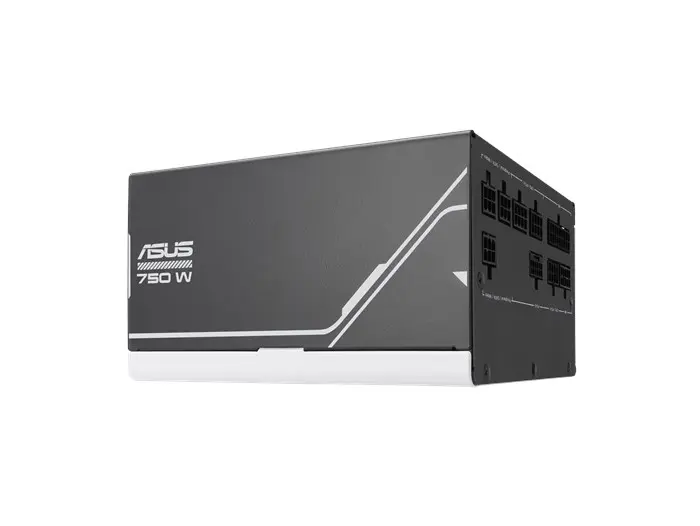

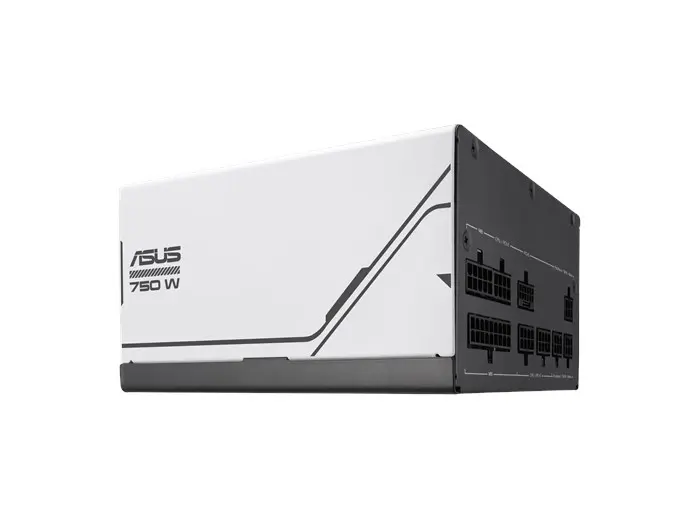

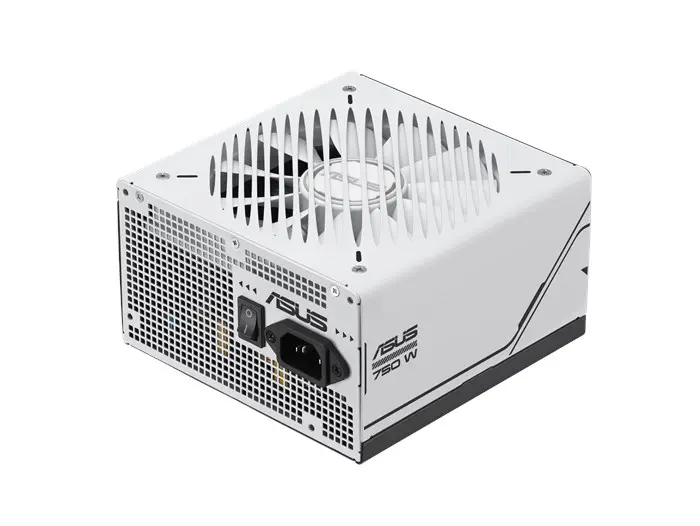

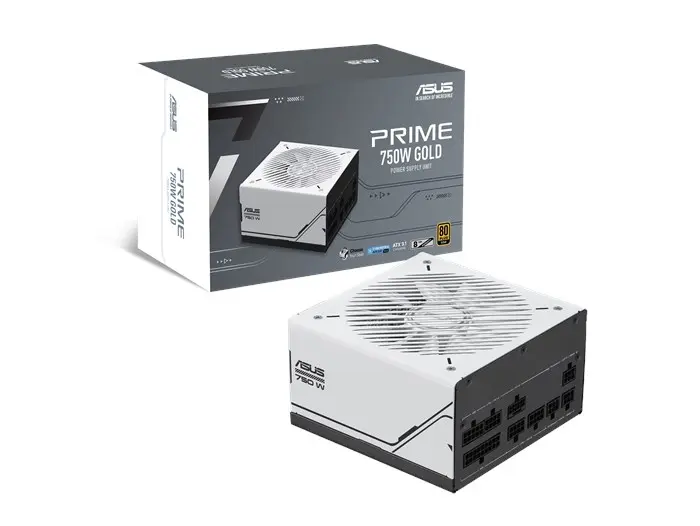

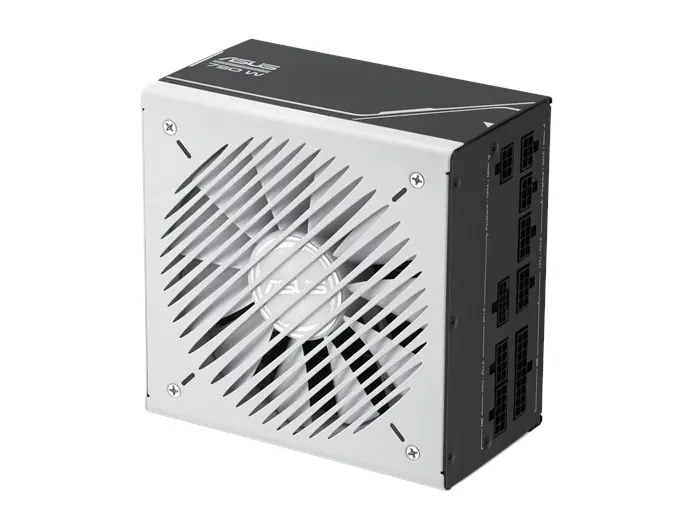

ASUS Prime 750W Gold PSU | 90YE00U1-B0NA00
The ASUS Prime 750W Gold Power Supply is engineered to deliver clean, stable, and efficient power for high-performance desktops and gaming systems. Built to the latest ATX 3.1 standard, it ensures full compatibility with next-generation hardware, including a native 16-pin PCIe 5.1 (12V-2x6) cable for modern GPUs.
With 80 Plus Gold efficiency, premium low-ESR components, and dual ball bearing fan technology, this PSU offers exceptionally quiet operation, reduced heat, and extended lifespan — lasting up to twice as long as traditional sleeve-bearing designs.
The robust internal architecture includes comprehensive protection features (OPP, OVP, UVP, SCP, OCP, OTP), ensuring long-term stability under demanding loads. Designed for builders who expect reliability and long-term value, the ASUS Prime 750W Gold PSU is backed by an 8-year warranty, making it a trusted choice for workstations, gaming rigs, and productivity systems.
Specifications
| Category | Specification |
| Model | ASUS Prime 750W Gold (AP-750G) |
| Part Number | 90YE00U1-B0NA00 |
| Form Factor | ATX12V |
| ATX Standard | ATX 3.1 |
| Total Power Output | 750W |
| Efficiency Rating | 80 Plus Gold |
| PFC Type | Active PFC |
| MTBF | >120,000 hours @ 25°C |
| Cooling Fan | Dual Ball Bearing Fan |
| 0dB Technology | No |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP |
| Input Voltage Range | 100–240V AC |
| DC Output Rails | +3.3V, +5V, +12V, -12V, +5Vsb |
| Max Load (Rails) | 20A / 20A / 62A / 0.3A / 2.5A |
| Combined Load | 110W / 110W / 744W / 3.6W / 12.5W |
| Cables Included | MB 24/20-pin x1, CPU 4+4-pin x2, PCIe 16-pin x1, PCIe 8-pin x3, SATA x5, Peripheral x3 |
| Accessories | Power cord, all PSU cables, user manual |
| Dimensions | 150 × 150 × 86 mm |
| Weight | 1.466 kg |
| Hazardous Materials | RoHS Certified |
| Warranty | 8 Years |
