Product Description

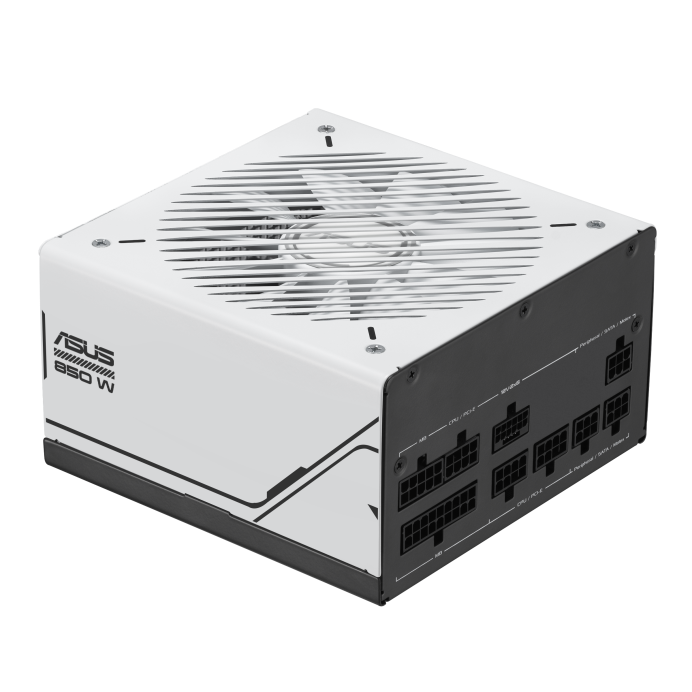

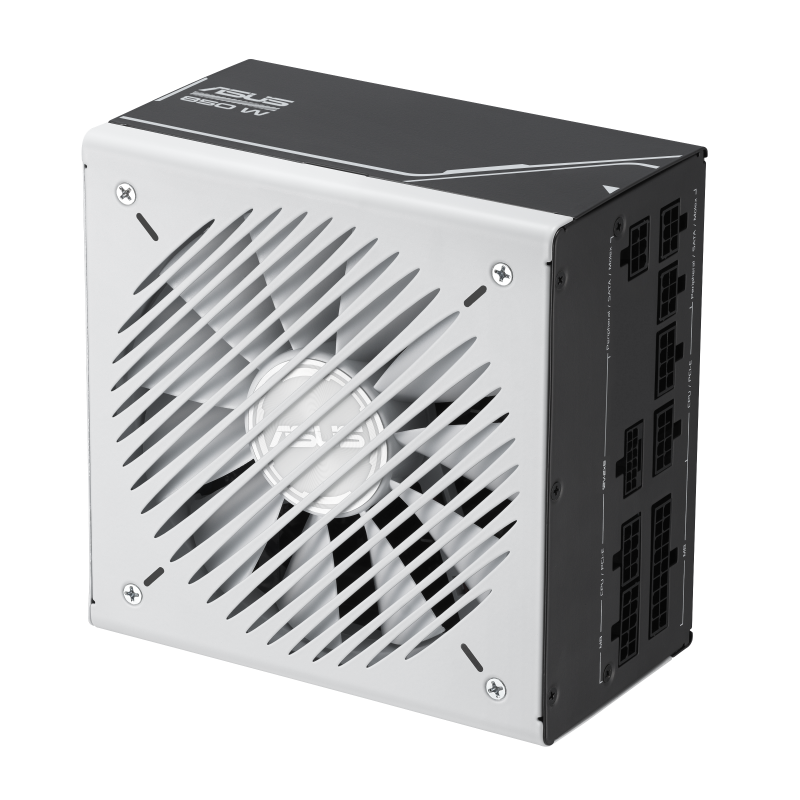

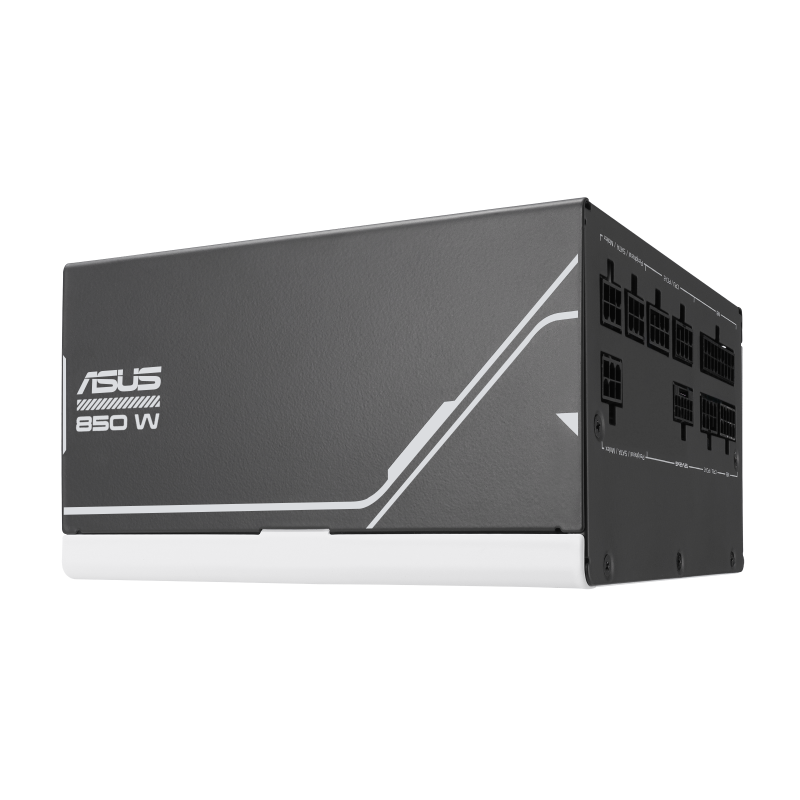

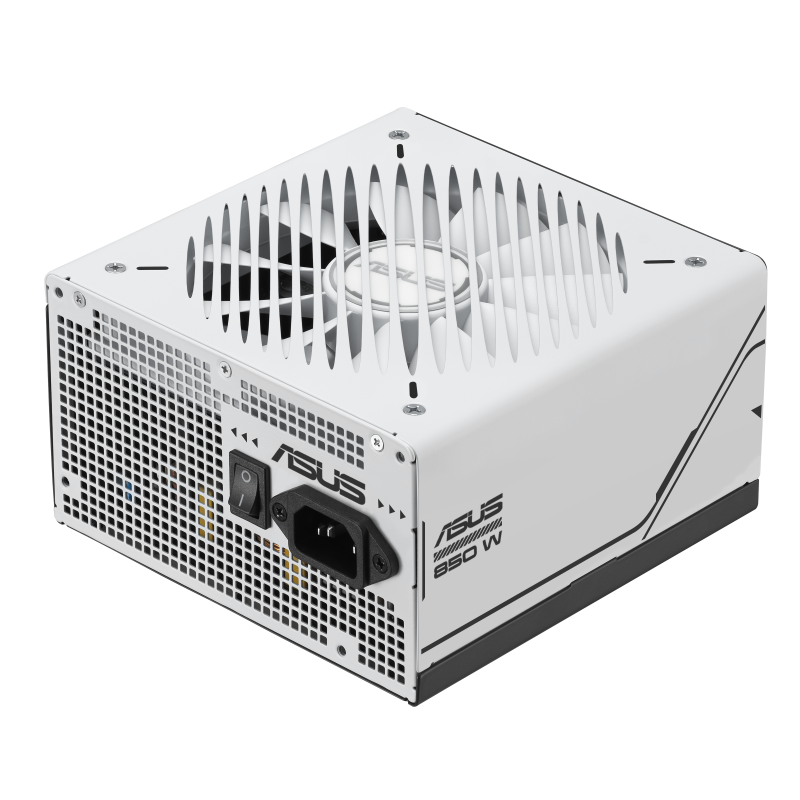

ASUS AP-850G (90YE00U0-B0NA00)
The ASUS AP-850G is an 850 W ATX 3.0/3.1 PSU with 80 PLUS Gold efficiency, fully modular cabling, dual ball-bearing fan, and complete protection features for reliable performance.
- Total Power: 850 W
- Efficiency: 80 PLUS Gold
- Form Factor / Standard: ATX • ATX 3.0 / 3.1 compatible
- Cooling: 135 mm dual ball-bearing fan
- Protections: OPP • OVP • UVP • OCP • SCP • OTP
- Special Features: Fully modular design • Durable components • Compact 150 mm length
- Connectors: 1 × 24-pin ATX • 2 × 4+4-pin EPS • 1 × 16-pin PCIe (12VHPWR) • 3 × 6+2-pin PCIe • 5 × SATA • 3 × Peripheral (Molex)
- Dimensions (L × W × H): 150 × 150 × 86 mm
- Weight: ~1.9 kg
- MTBF: >120,000 hours @ 25 °C
- AC Input: 100–240 Vac
- DC Output (Max Load): +3.3 V: 20 A • +5 V: 20 A • +12 V: 70.5 A (846 W) • −12 V: 0.3 A • +5Vsb: 2.5 A
- Combined Loads: +3.3 V & +5 V = 110 W • +12 V = 846 W
