Product Description

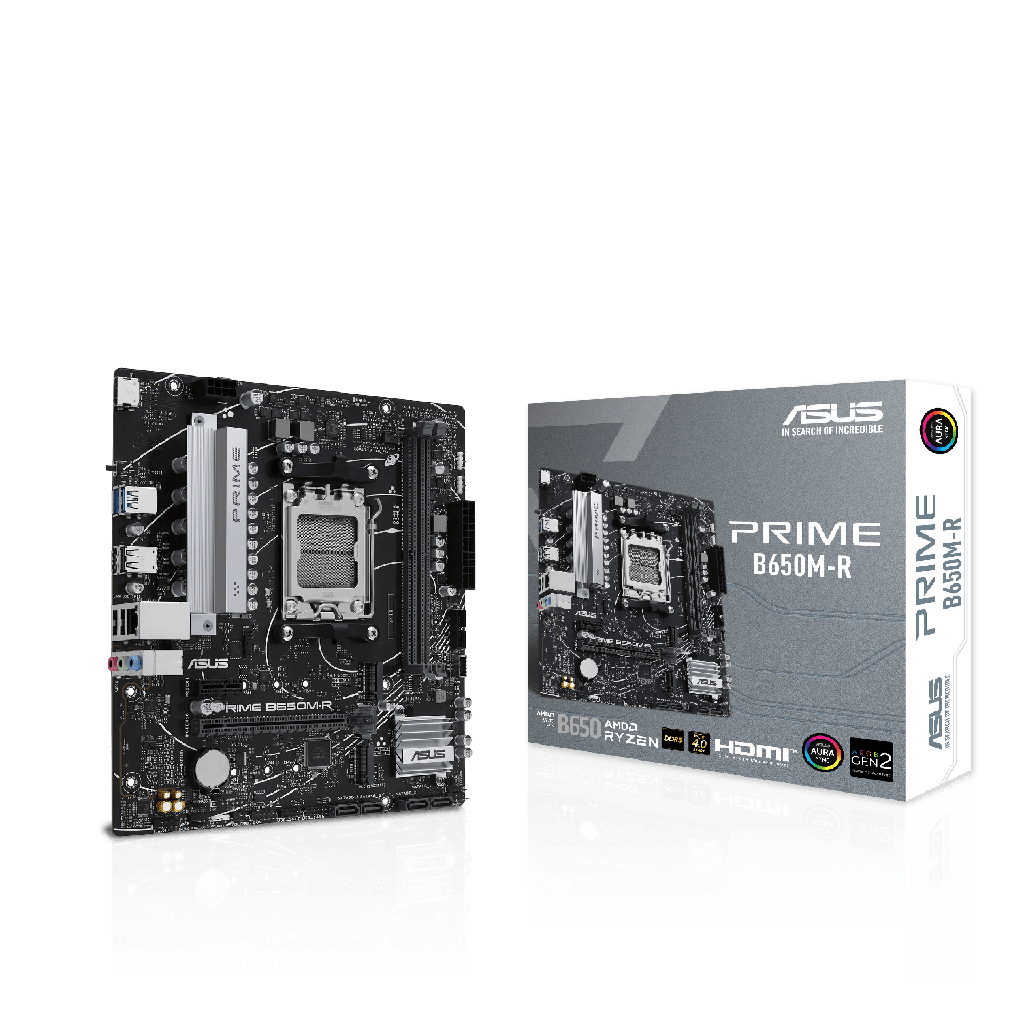

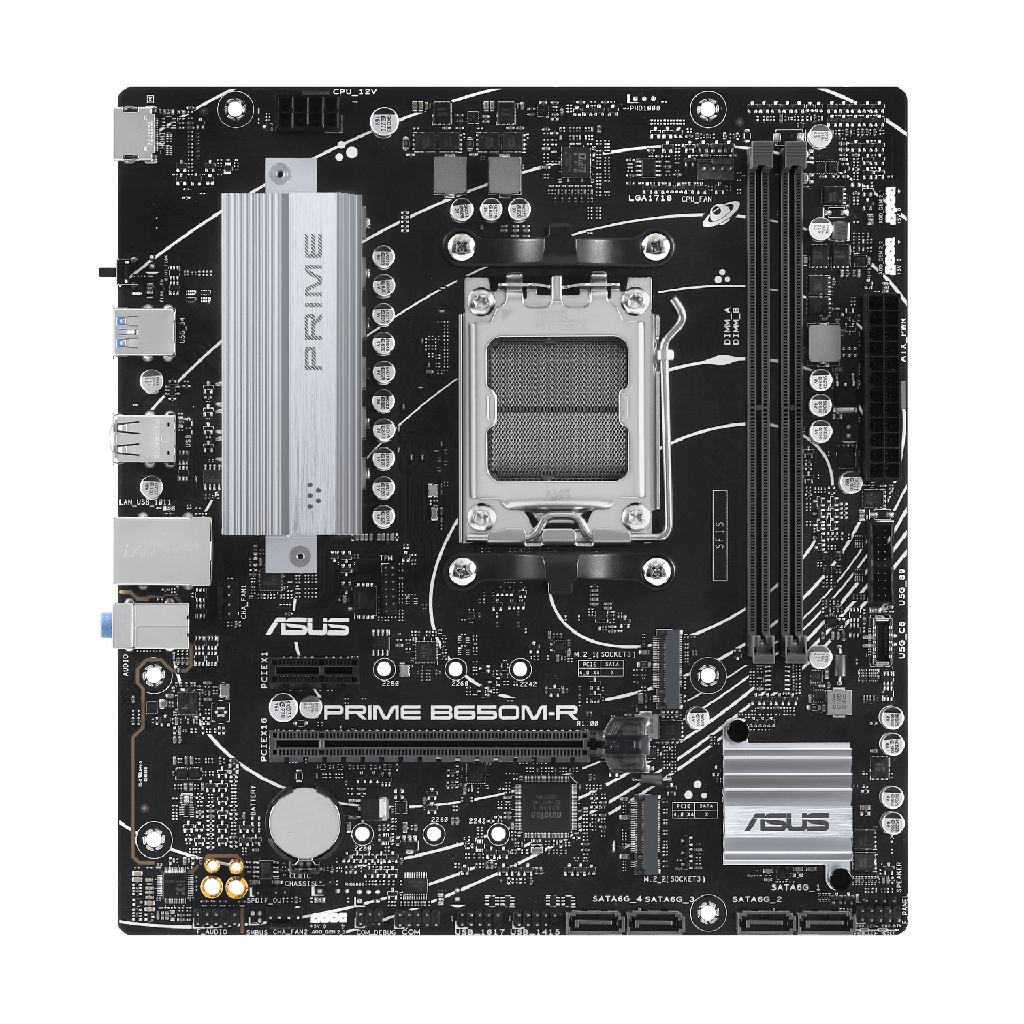

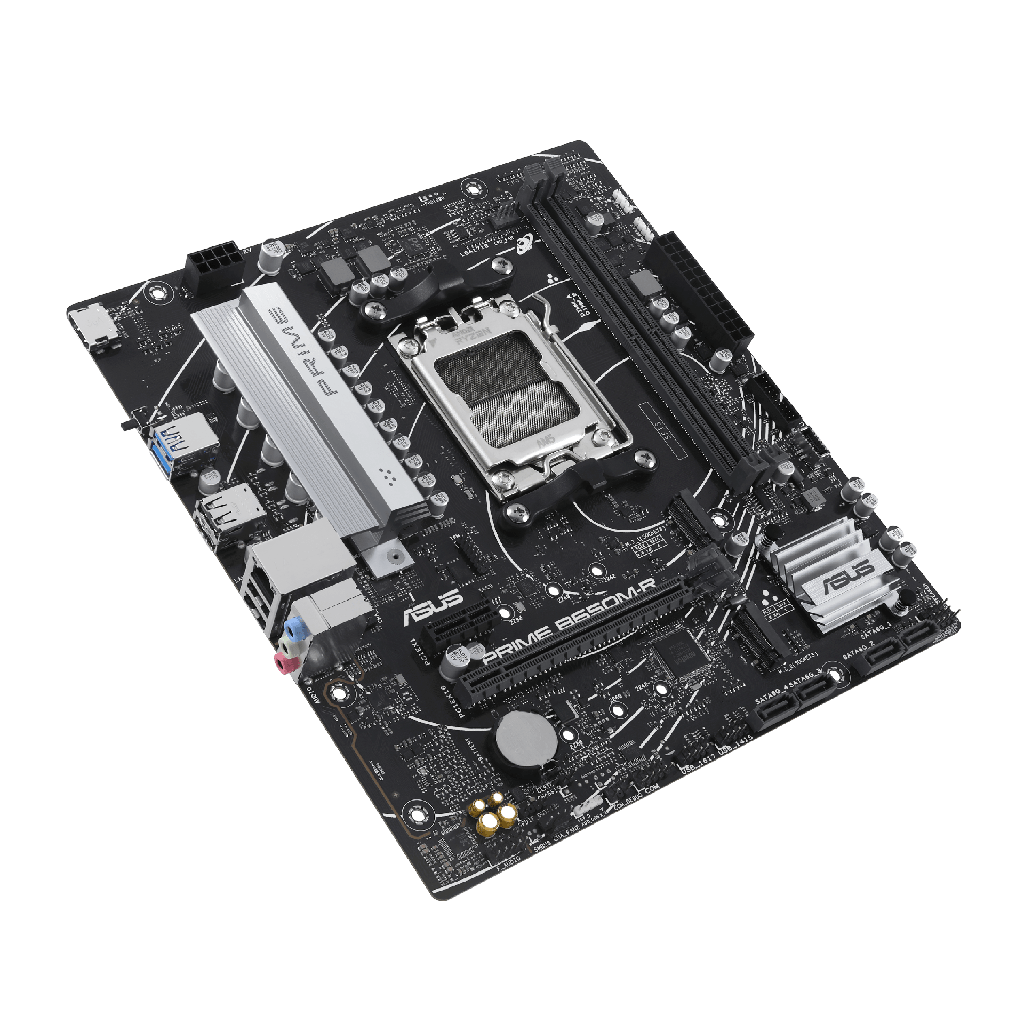

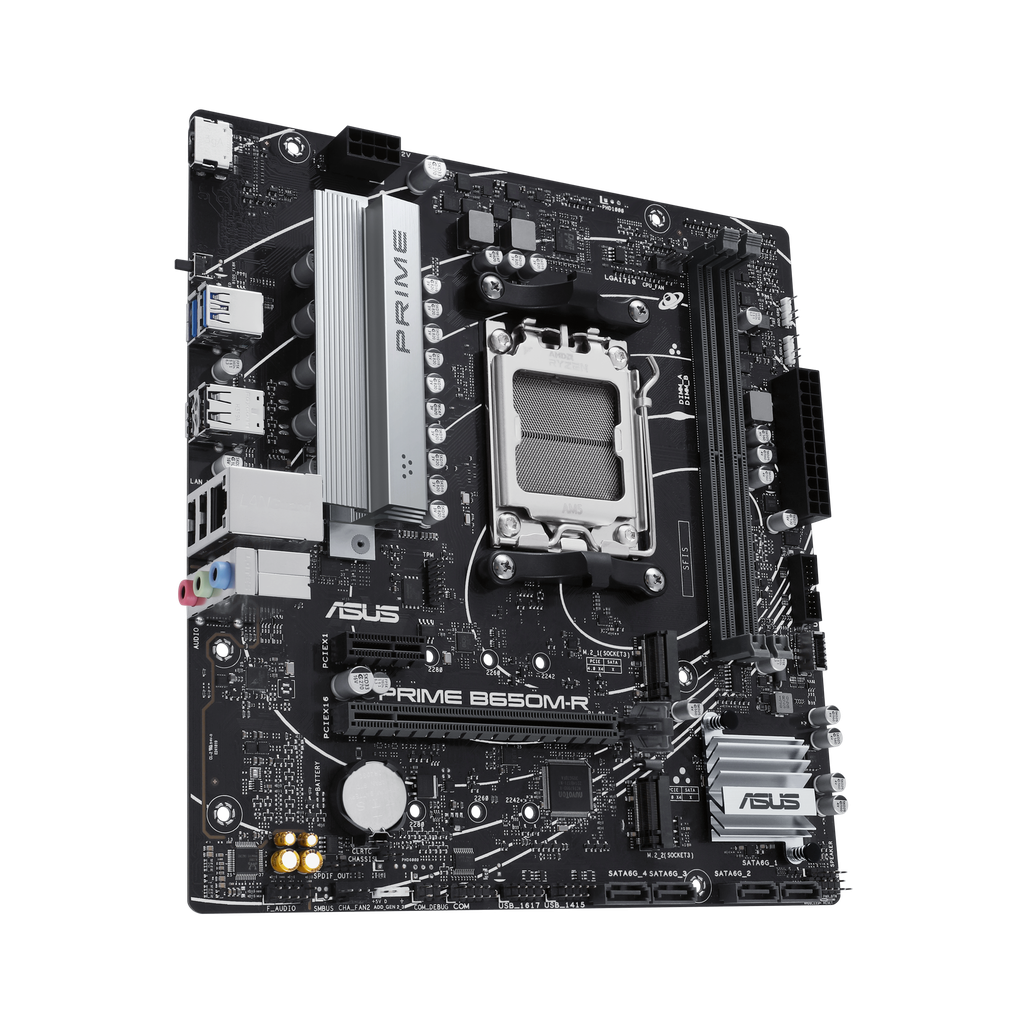

Prime B650M-R
AMD B650 Micro-ATX motherboard, DDR5, PCIe 4.0 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, front USB 5Gbps Type-C®, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-R provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Â
Â
Specifications
| Model | PRIME B650M-R |
| CPU | AMD Socket AM5 for AMD Ryzenâ„¢ 9000, 8000, 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory Supports AMD Extended Profiles for Overclocking (EXPOâ„¢) |
| Graphics | 1 x HDMIâ„¢ port (supports 4K@60Hz, HDMI 2.1; specifications may vary between CPU types) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode for Ryzenâ„¢ 9000 & 7000; x8/x4 mode for Ryzenâ„¢ 8000) 1 x PCIe 4.0 x1 slot |
| Storage | Supports 2 x M.2 slots (Key M) and 4 x SATA 6Gb/s ports M.2_1 slot supports PCIe 4.0 x4 mode; M.2_2 slot (AMD B650 Chipset) also supports PCIe 4.0 x4 mode |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB: 2 x USB 5Gbps (Type-A) + 4 x USB 2.0 ports (Type-A) Front USB: 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional ports, 2 x USB 2.0 headers support 4 additional ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC (supports up to 24-Bit/192 kHz playback; requires chassis with HD audio module for 7.1 output) Audio Features:Â Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports (Type-A), 1 x HDMIâ„¢ port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBackâ„¢ button |
| Internal I/O Connectors | Fan/Cooling:Â 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers Power:Â 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector Storage:Â 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports USB:Â 1 x USB 5Gbps connector, 1 x USB 5Gbps header |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header, 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (VRM heatsink design) ASUS EZ DIY (BIOS FlashBackâ„¢ button, BIOS FlashBackâ„¢ LED, Aura Sync) |
| Software Features | ASUS Exclusive Software (Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation) AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner) ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, ASUS EZ DIY |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

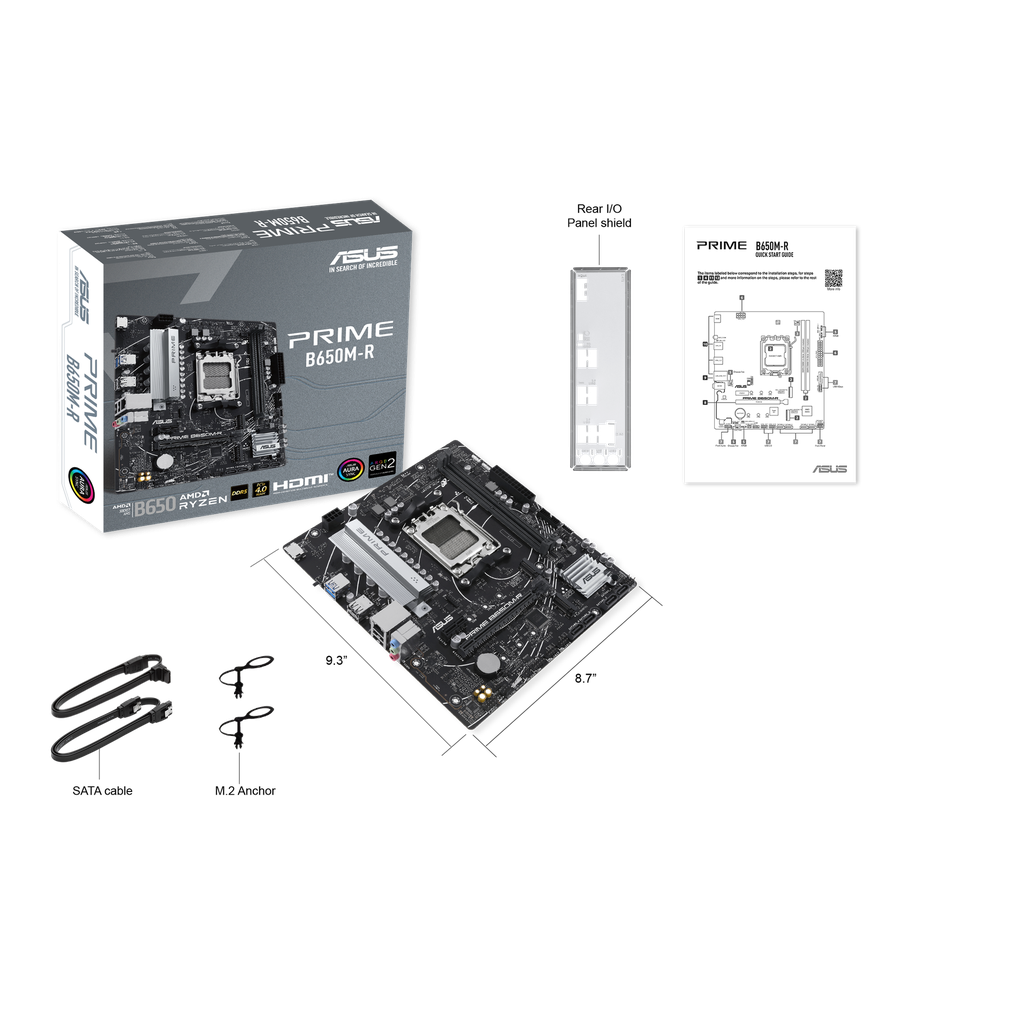

| Accessories | Cables:Â 2 x SATA 6Gb/s cables Miscellaneous:Â 1 x I/O Shield, 2 x M.2 Anchors, 1 x Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor (9.3 inch x 8.7 inch / 23.6 cm x 22.1 cm) |
