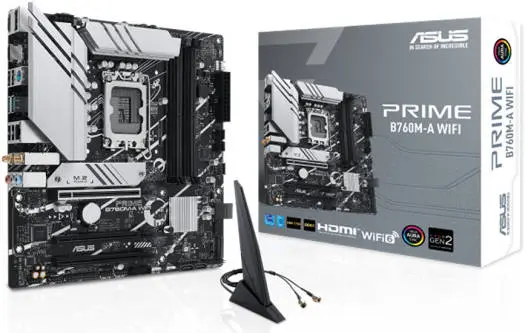

ASUS PRIME B760M-A WIFI (LGA1700) mATX Motherboard | DDR5 | Wi-Fi 6 | PCIe 4.0 | 2×M.2 | HDMI/DP | 90MB1EL0-M1EAY0

Description

The ASUS PRIME B760M-A WIFI is designed for builders who want dependable performance, modern connectivity, and outstanding value for Intel® 12th & 13th Gen processors. Built on the Intel® B760 chipset, this mATX motherboard delivers a solid foundation for productivity, gaming, and everyday computing.

Featuring DDR5 memory support, PCIe 4.0, dual M.2 PCIe 4.0 slots, Wi-Fi 6, and Realtek 2.5Gb Ethernet, it provides the speed and flexibility needed for next-generation builds. With multiple display outputs—including DisplayPort and dual HDMI—plus premium cooling options and ASUS OptiMem II for improved memory stability, this board is engineered for smooth and efficient performance.

The PRIME B760M-A WIFI also includes Aura Sync support, offering customizable RGB lighting to match your build aesthetics.

Key Features

• LGA1700 Socket — Supports 13th & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

• DDR5 Memory Support — 4× DIMM slots, up to 128GB

• Dual PCIe 4.0 M.2 Slots — High-speed NVMe SSD support

• Wi-Fi 6 + Bluetooth 5.2 — Fast wireless connectivity

• 2.5Gb LAN — Ultra-fast wired networking

• Comprehensive Cooling — VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers & Fan Xpert 2+

• Aura Sync RGB — 3× Addressable Gen 2 headers + 1× Aura RGB header

• Front USB Type-C® — USB 3.2 Gen 1

• Rear USB 3.2 Gen 2 — Up to 10Gbps

Specifications

CPU

• Intel® Socket LGA1700

• Supports 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® CPUs

• Intel® Turbo Boost Technology 2.0 / 3.0 (depending on CPU)

Chipset

• Intel® B760

Memory

• 4× DIMM DDR5

• Up to 128GB

• Speeds (OC): 5333 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4000+ MHz

• Dual-channel architecture

• Intel® XMP support

• ASUS OptiMem II

Graphics Output

• 1× DisplayPort 1.4 (up to 4K @ 60Hz)

• 2× HDMI® 2.1 (up to 4K @ 60Hz)

  Graphics support depends on CPU.

Expansion Slots

From CPU:

• 1× PCIe 4.0 x16

From Chipset:

• 1× PCIe 4.0 x16 (x4 mode)

• 1× PCIe 4.0 x1

Storage

• 2× M.2 PCIe 4.0 x4 (2242/2260/2280)

• 4× SATA 6Gb/s ports

• Supports Intel® RST with RAID 0/1/5/10

Networking

• Realtek 2.5Gb Ethernet

• Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

• Bluetooth 5.2

USB Ports

Rear I/O (6 ports):

• 2× USB 3.2 Gen 2 Type-A

• 4× USB 2.0 Type-A

Front Panel:

• 2× USB 3.2 Gen 1 headers (4 ports)

• 1× USB 3.2 Gen 1 Type-C header

• 3× USB 2.0 headers (5 ports)

Audio

• Realtek 7.1 HD Audio CODEC

• Premium capacitors & audio shielding

• Supports 24-bit / 192 kHz playback

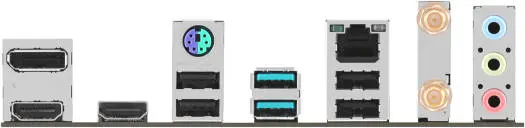

Back Panel I/O

• 2× USB 3.2 Gen 2 Type-A

• 4× USB 2.0

• 1× DisplayPort

• 2× HDMI

• 1× Wi-Fi module

• 1× 2.5Gb Ethernet

• 3× Audio jacks

• 1× PS/2 combo port

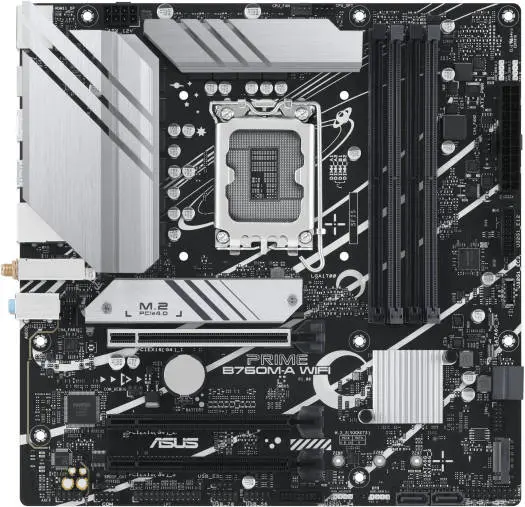

Internal Connectors

• 2× M.2 slots

• 4× SATA 6Gb/s

• 1× USB 3.2 Gen1 Type-C (front)

• 2× USB 3.2 Gen1 headers

• 3× ARGB Gen 2 headers

• 1× Aura RGB header

• Multiple fan headers (CPU, CPU OPT, 2× CHA FAN)

• 24-pin + 8-pin power connectors

• TPM header, COM port, SPDIF Out, Clear CMOS

Special ASUS Features

• 5X Protection III: DIGI+ VRM, LANGuard, SafeSlot Core+, Stainless Steel I/O

• Q-Design: Q-DIMM, Q-Slot, Q-LED Core

• Aura Sync RGB

• Fan Xpert 2+

• Armoury Crate, AI Suite 3

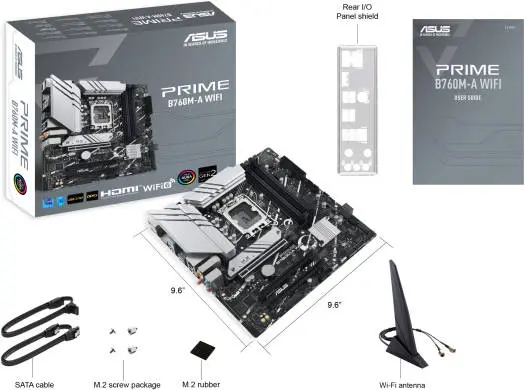

Accessories

• 2× SATA cables

• 1× Wi-Fi antennas

• 1× I/O shield

• 1× M.2 screw package

• 1× M.2 rubber package

• User guide
