Product Description

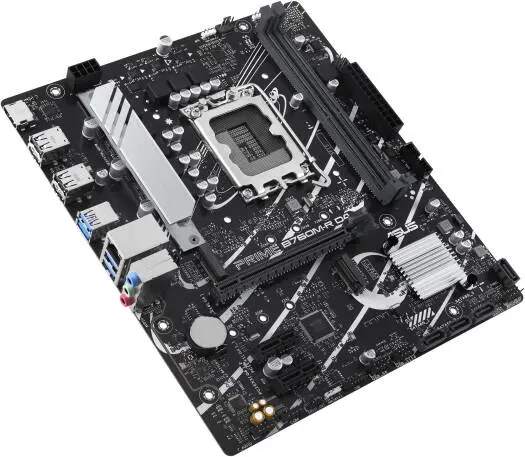

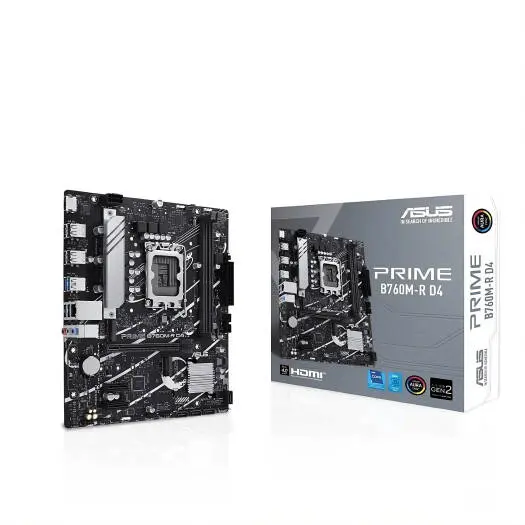

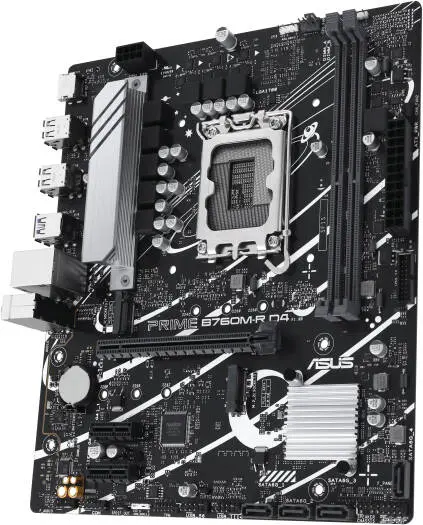

ASUS PRIME B760M-R D4 mATX Motherboard | LGA1700 | DDR4 | PCIe 4.0 | Dual M.2 | 2.5Gb LAN | 90MB1HA0-M0EAY0
Description
The ASUS PRIME B760M-R D4 is a reliable and efficient Intel® LGA1700 micro-ATX motherboard built to maximize the performance of 14th, 13th, and 12th Gen Intel® Core™ processors. Designed for everyday users, system builders, and small-form-factor PC builds, it offers a perfect balance of performance, durability, and connectivity.
Powered by the Intel® B760 chipset, this board supports DDR4 memory, PCIe 4.0, dual PCIe 4.0 M.2 slots, and Realtek 2.5Gb Ethernet for ultra-fast networking. With robust power delivery, comprehensive cooling solutions, and ASUS-exclusive features like 5X Protection III, Q-Design, and Aura Sync headers, it provides a solid foundation for both work and entertainment.
Whether you’re building a productivity PC or a compact gaming system, the PRIME B760M-R D4 offers dependable performance with intuitive controls and easy installation.
Key Features
LGA 1700 Socket — Supports 14th, 13th & 12th Gen Intel® CPUs
DDR4 Memory Support — Up to 64GB, dual-channel
PCIe 4.0 x16 Slot — For modern GPUs
Dual PCIe 4.0 M.2 Slots — High-speed storage
Realtek 2.5Gb Ethernet — Faster than standard Gigabit
HDMI™ 2.1 — Supports 4K @ 60Hz
Aura Sync RGB Support — 2× Addressable Gen 2 headers
Robust Cooling — VRM & chipset heatsinks + Fan Xpert 2+
Enhanced Stability — BIOS update includes Intel microcode (0x129)
Specifications
| Category | Specifications |
| Model | ASUS PRIME B760M-R D4 |
| CPU Support | Intel LGA1700 — Supports 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® |
| Chipset | Intel B760 |
| Memory | 2× DDR4 DIMM slots, up to 64GB, Dual Channel |
| Memory Speeds | DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Graphics Output | 1× HDMI™ (4K@60Hz, HDMI 2.1) |
| Expansion Slots | 1× PCIe 4.0 x16, 2× PCIe 4.0 x1 |
| Storage | 2× M.2 PCIe 4.0 x4 (2242/2260/2280) 4× SATA 6Gb/s ports |
| Ethernet | Realtek 2.5Gb Ethernet |
| USB (Rear I/O) | 4× USB 5Gbps (USB 3.2 Gen1 Type-A) 4× USB 2.0 Type-A |
| USB (Front I/O) | 1× USB 5Gbps header (2 ports) 2× USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound, 24-bit/192kHz, Premium capacitors |
| Cooling Headers | 1× CPU Fan, 2× Chassis Fan |
| Internal Connectors | 2× M.2, 4× SATA, RGB Gen2 headers, Front Audio, USB headers |
| Special Features | ASUS 5X Protection III, Q-Design, Aura Sync RGB, Fan Xpert 2+ |
| BIOS | 128 Mb UEFI AMI BIOS |
| Form Factor | Micro-ATX (24.4 cm × 21.1 cm) |
| Accessories | 2× SATA cables, I/O shield, 2× M.2 anchors, Quick start guide |
| OS Support | Windows 11 / Windows 10 64-bit |
