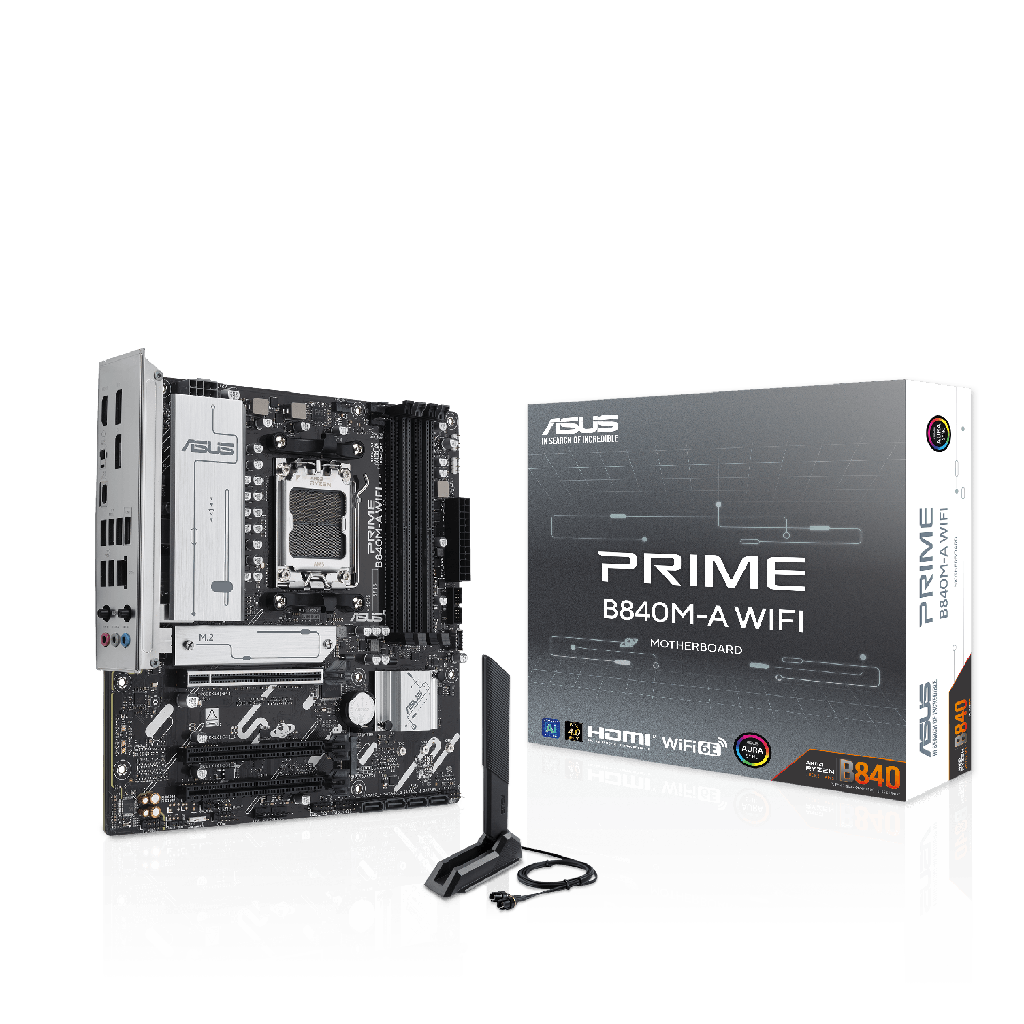

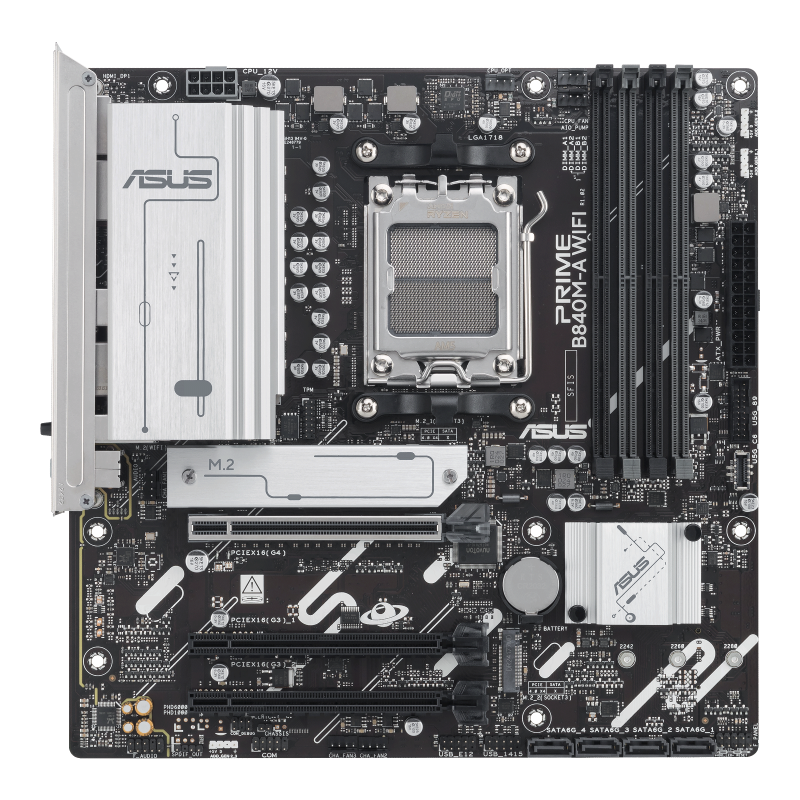

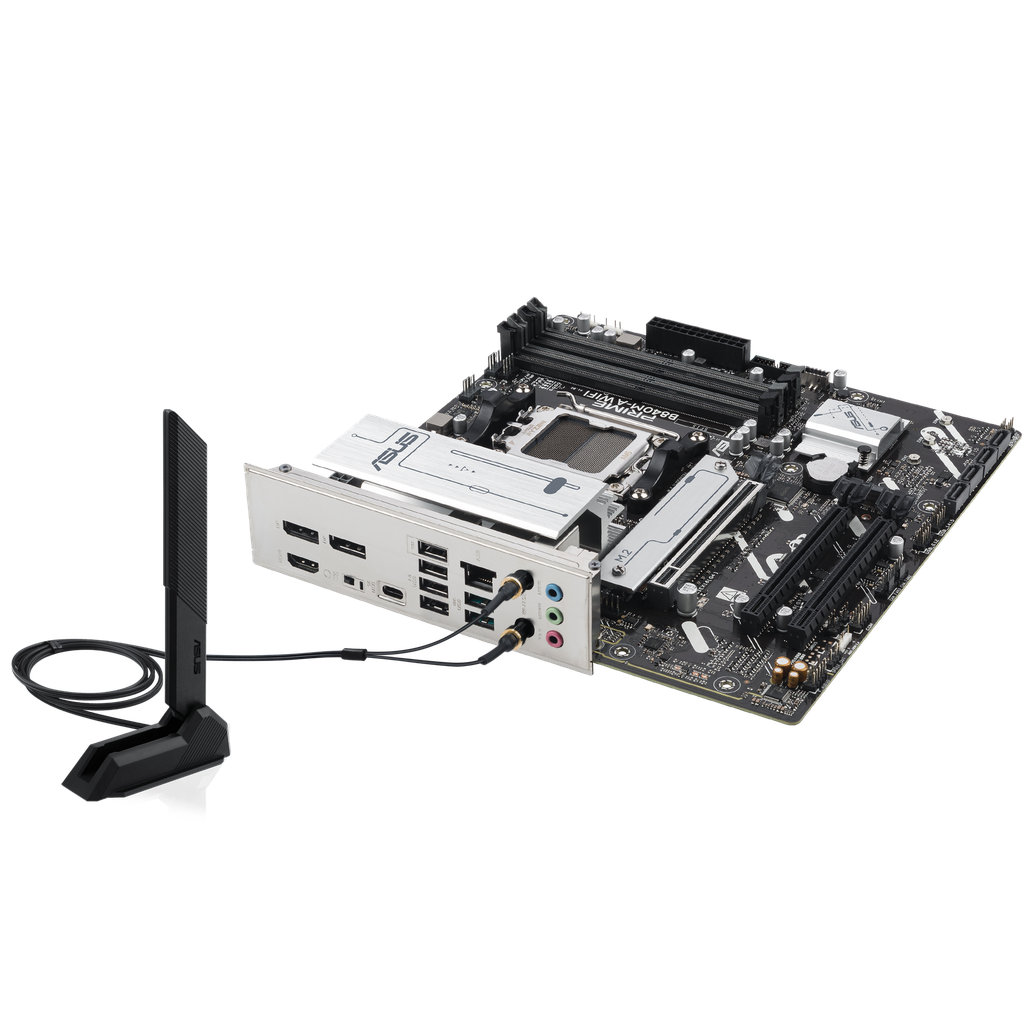

PRIME B840M-A WiFi
Â
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Â
Â
Specifications
Â
| Model | PRIME B840M-A WIFI |
| CPU | AMD Socket AM5 for AMD Ryzenâ„¢ 9000/8000/7000 Series Desktop Processors. |
| Chipset | AMD B840 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5, up to 7600+MT/s (OC), ECC/Non-ECC, Dual-channel, EXPOâ„¢ support, ASUS AEMP. |
| Graphics | 2 x DisplayPort (8K@30Hz), 1 x HDMIâ„¢ (4K@60Hz). Graphics specifications depend on CPU type. |
| Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16 (x1 mode). |
| Storage | 3 x M.2 slots (PCIe 4.0/3.0 x4), 4 x SATA 6Gb/s ports. RAID support: RAID 0/1/5/10 (9000 series), RAID 0/1 (8000 series), RAID 0/1/10 (7000 series). |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard. |
| Wireless & Bluetooth | Wi-Fi 6E (2x2, 802.11ax), Bluetooth® v5.3. Supported in Windows 11 or later. |
| USB (Rear) | 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C®), 4 x USB 2.0 (Type-A). |
| USB (Front) | 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports). |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC with jack-detection, premium capacitors, shielding, and up to 24-Bit/192kHz playback. |

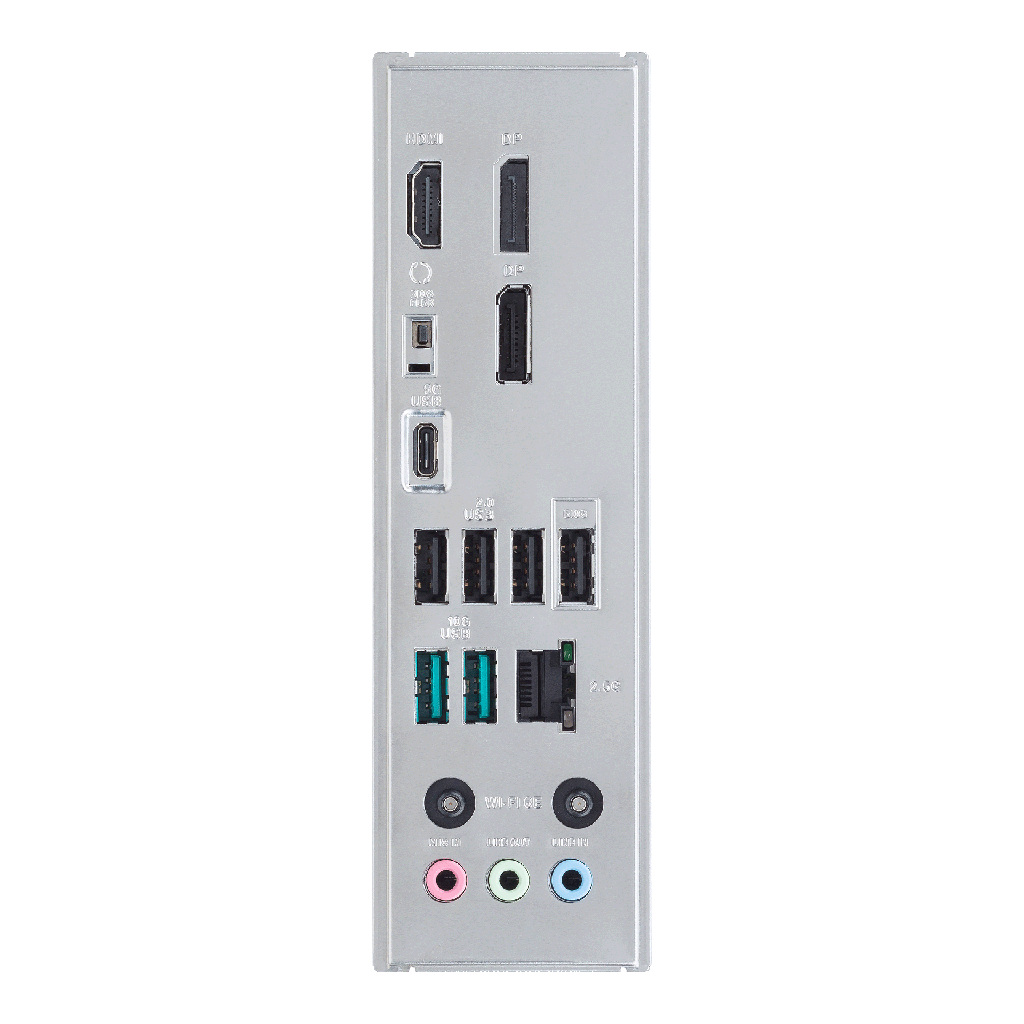

| Back Panel I/O | 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C®), 4 x USB 2.0 (Type-A), 2 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button. |
| Internal I/O | CPU Fan (4-pin), CPU OPT Fan (4-pin), AIO Pump (4-pin), Chassis Fans (3 x 4-pin), Clear CMOS, COM Port, Front Panel Audio, S/PDIF Out, SPI TPM, 3 x Addressable Gen 2 headers. |
| Special Features | ASUS 5X Protection III, Q-Design (Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot), M.2/VRM heatsinks, Aura Sync, BIOS FlashBackâ„¢. |
| Software Features | Armoury Crate (Aura Creator, Aura Sync), ASUS GlideX, TurboV Core, ASUS CPU-Z, Adobe Creative Cloud (Trial), Norton 360 Deluxe (60 Days Trial), WinRAR (40 Days Trial). |
| UEFI BIOS | ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3), MyHotkey, 256 Mb Flash ROM. |

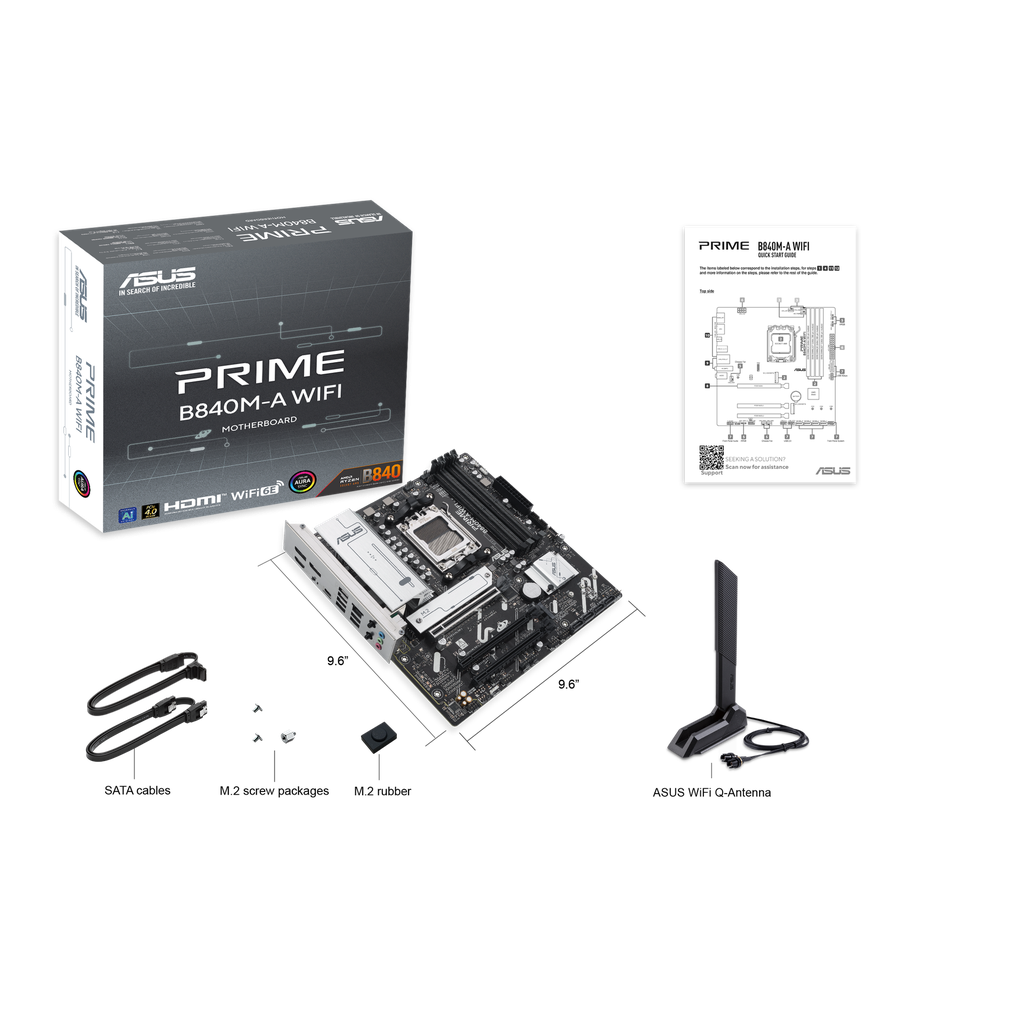

| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x M.2 SSD screws, Quick Start Guide. |
| Operating System | Windows 11, Windows 10 (64-bit). |
| Form Factor | micro-ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm). |
