Product Description

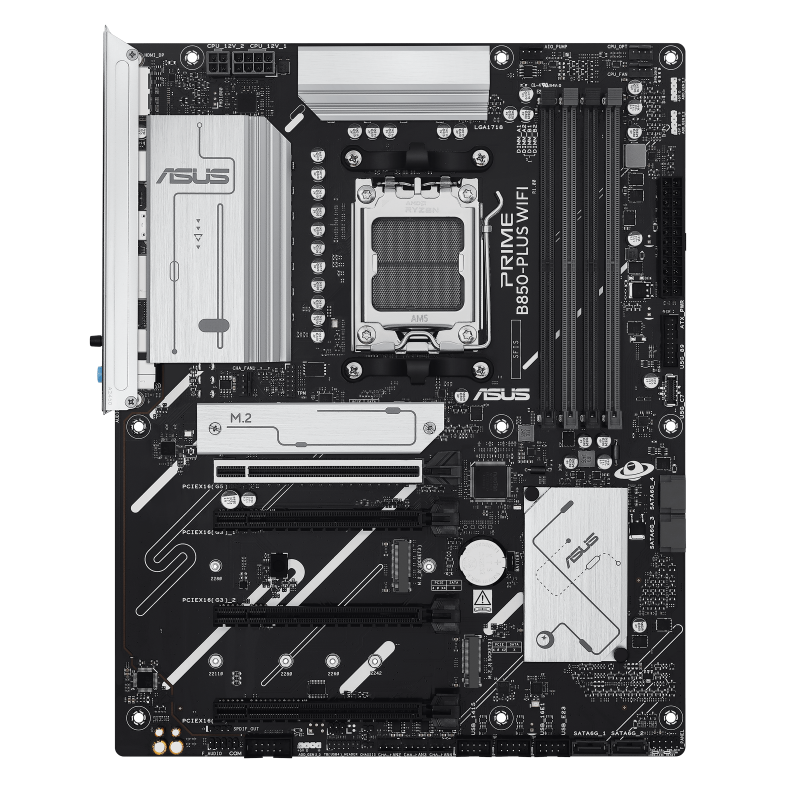

PRIME B850-PLUS WIFI
Â
Specifications
| Model | PRIME B850-PLUS WIFI |
| News & Updates | Visit ASUS Support |
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC), Dual channel, ECC & Non-ECC, EXPO™, AEMP |
| Graphics | 1 Ă— DisplayPort (max 8K@30Hz), 1 Ă— HDMI 2.1 (max 4K@60Hz), depends on CPU |
| Expansion Slots | - Ryzen 9000 & 7000: 1 Ă— PCIe 5.0 x16 (x16) - Ryzen 8000: 1 Ă— PCIe 4.0 x16 (x8/x4) - Chipset: 1 Ă— PCIe 4.0 x16 (x4), 2 Ă— PCIe 3.0 x16 (x1 each, share bandwidth with SATA6G_1/2) |
| Storage | 3 Ă— M.2 slots (PCIe 5.0 / 4.0 depending on CPU) 4 Ă— SATA 6Gb/s ports RAID support varies by CPU (Ryzen 9000: RAID 0/1/5/10, Ryzen 8000: RAID 0/1, Ryzen 7000: RAID 0/1/10) |
| Ethernet | 1 Ă— Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2×2, 2.4/5/6GHz) Bluetooth® v5.3 |
| USB (Rear) | 1 Ă— USB 10Gbps Type-C 3 Ă— USB 10Gbps Type-A 2 Ă— USB 5Gbps Type-A 2 Ă— USB 2.0 Type-A |
| USB (Front) | 1 Ă— USB 5Gbps Type-C connector 1 Ă— USB 5Gbps header (2 ports) 3 Ă— USB 2.0 headers (6 ports) * Type-C power delivery: max 5V/3A |
| Audio | Realtek 7.1 Surround HD Audio CODEC, up to 24-Bit/192 kHz playback, shielding, premium capacitors, dedicated audio PCB layers |

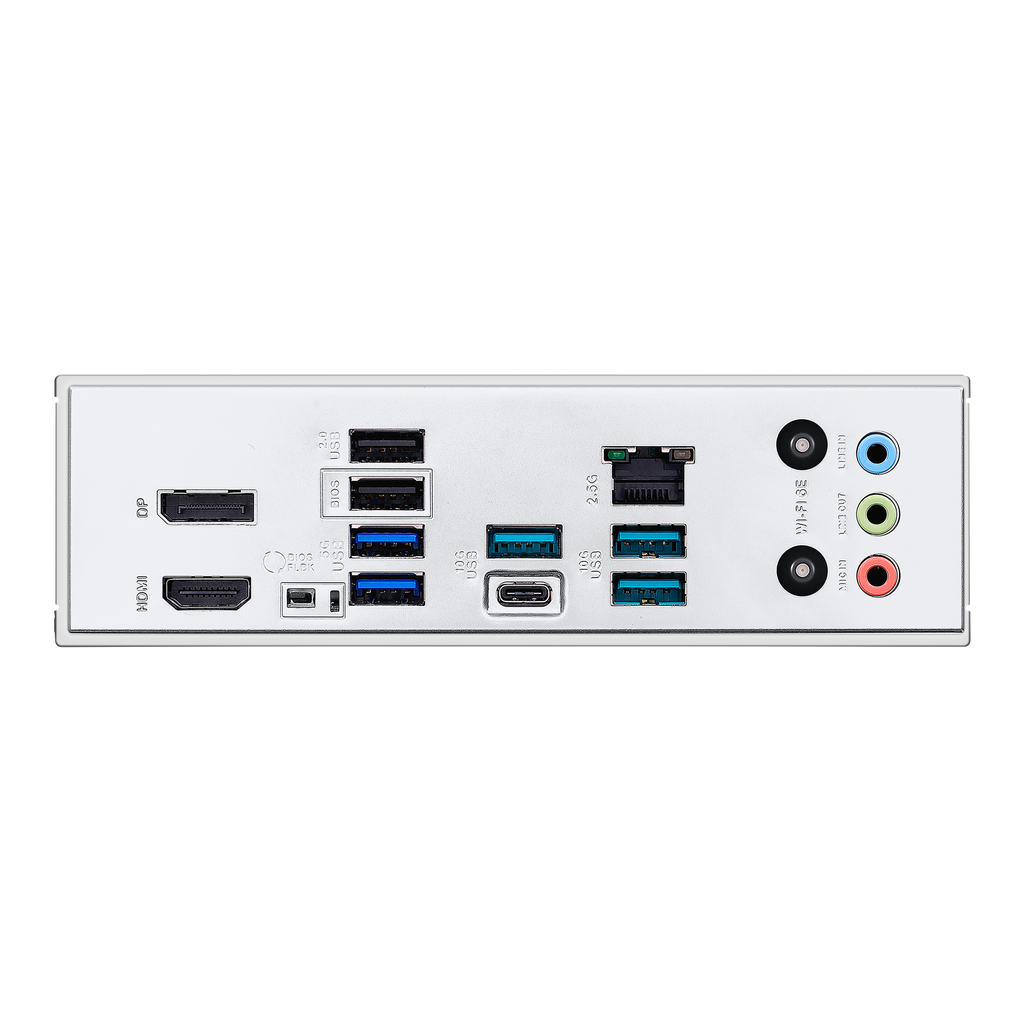

| Back Panel I/O | 1 × USB-C 10Gbps 3 × USB 10Gbps Type-A 2 × USB 5Gbps Type-A 2 × USB 2.0 1 × DisplayPort 1 × HDMI 1 × Wi-Fi module 1 × 2.5Gb Ethernet 3 × Audio jacks 1 × BIOS FlashBack™ button |
| Internal I/O | - Cooling: 1 Ă— CPU Fan, 1 Ă— CPU OPT, 1 Ă— AIO Pump, 4 Ă— Chassis Fan - Power: 1 Ă— 24-pin, 1 Ă— 8-pin CPU, 1 Ă— 4-pin CPU - Storage: 3 Ă— M.2, 4 Ă— SATA - USB: 1 Ă— USB-C 5Gbps, 1 Ă— USB 5Gbps header, 3 Ă— USB 2.0 headers - Misc: 3 Ă— ARGB Gen 2 headers, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF Out, TPM header, System Panel, Thunderbolt (USB4) header |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, etc.), Q-Design (Q-Antenna, Q-DIMM, Q-Slot, Q-LED Core), Flexible M.2 heatsink, VRM heatsink, EZ DIY (BIOS FlashBack™, pre-mounted I/O shield), Aura Sync RGB |
| Software Features | Armoury Crate, Aura Sync, Fan Xpert 2+, Power Saving, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Adobe CC trial, Norton 360 Deluxe trial, WinRAR trial |
| UEFI BIOS | CrashFree BIOS 3, EZ Flash 3, MyHotkey, UEFI EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

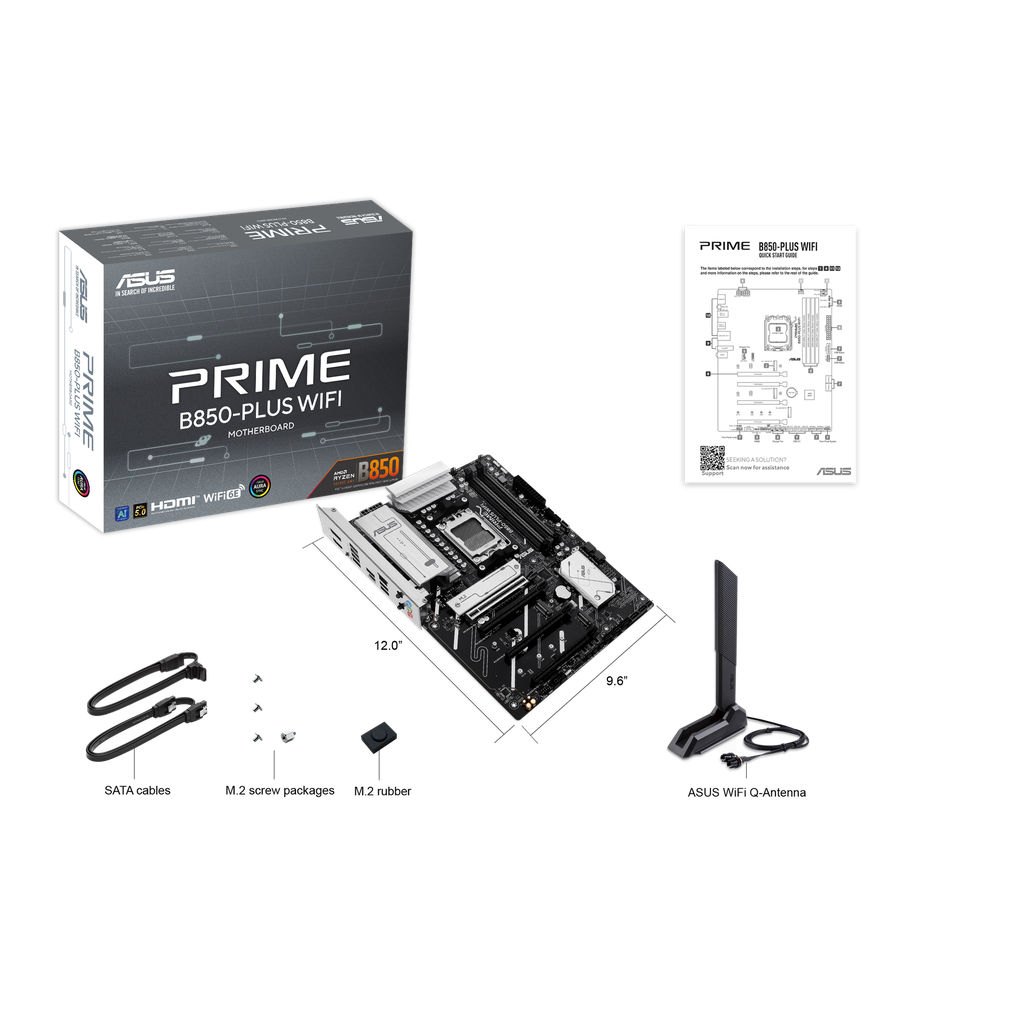

| Accessories | 2 Ă— SATA cables, Wi-Fi antenna, 1 Ă— M.2 rubber package, 3 Ă— M.2 screw packages, Quick Start Guide |
| Operating System | Windows® 11, Windows® 10 (64-bit) |
| Form Factor | ATX, 30.5 Ă— 24.4 cm (12" Ă— 9.6") |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS PRIME B850-PLUS WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | 90MB1L80-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS PRIME B850-PLUS WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | 90MB1L80-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
PRIME B850-PLUS WIFI
Shipping Weight
1.90 Kg
Shipping Dimensions
7.00 cm x 35.50 cm x 27.51 cm
Chipset
AMD B850
Form Factor
ATX
M.2 Slots
3
Maximum Memory
256 GB
Memory Slots
4
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
1
Socket
AM5
