Product Description

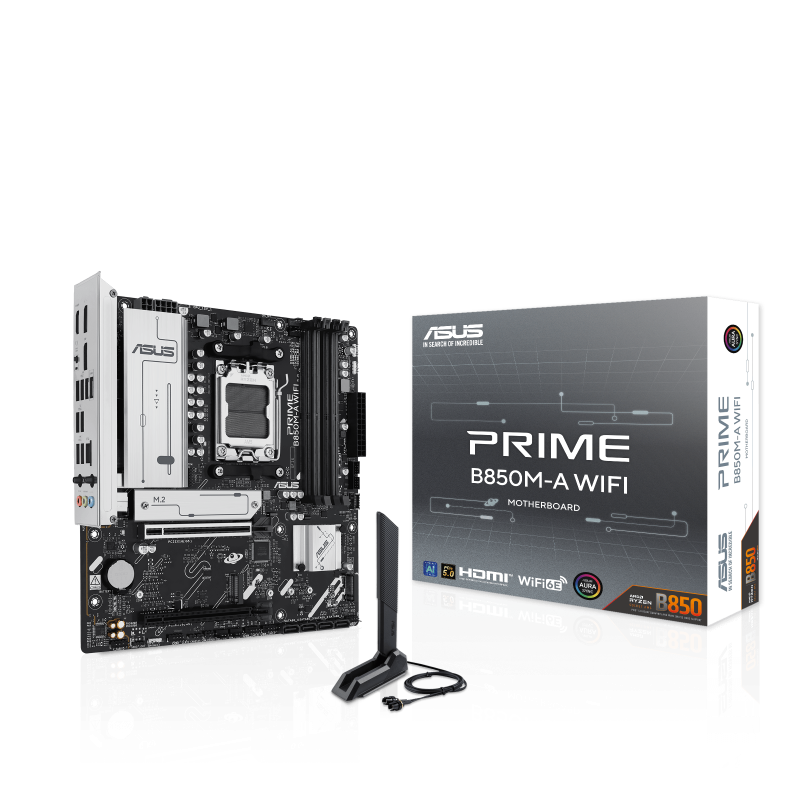

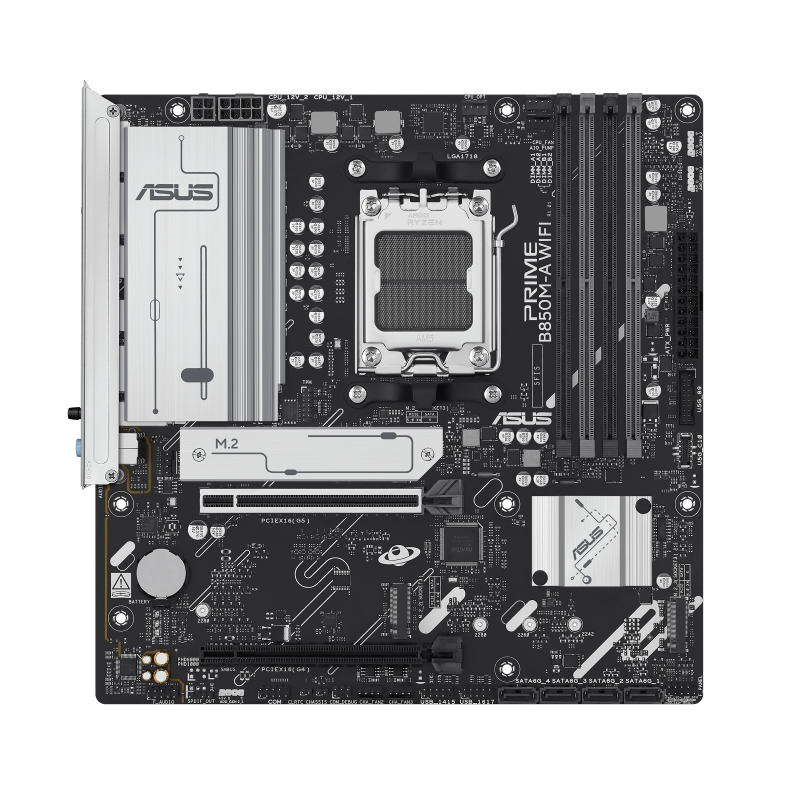

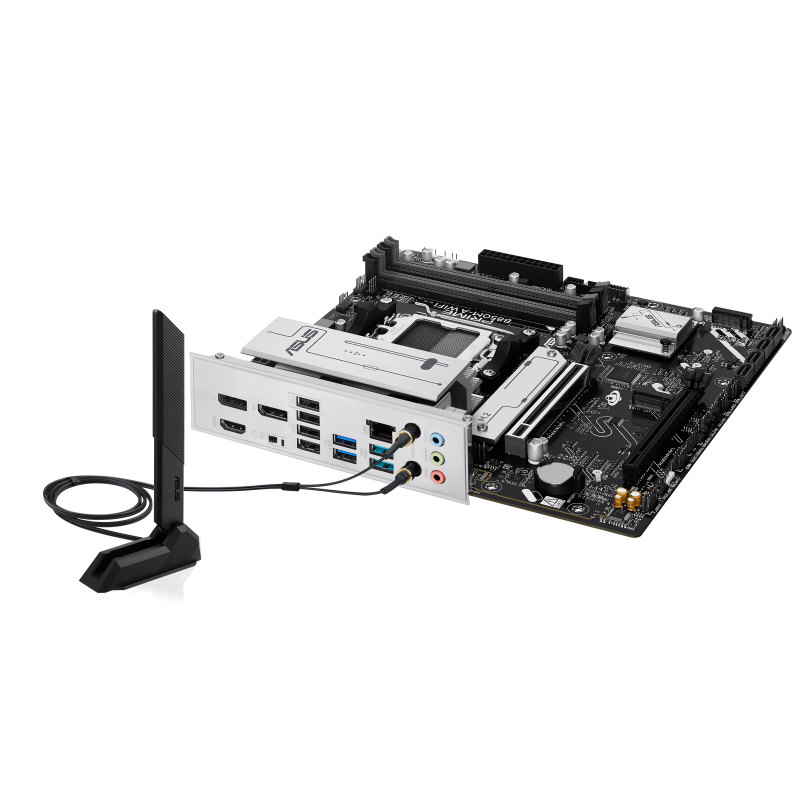

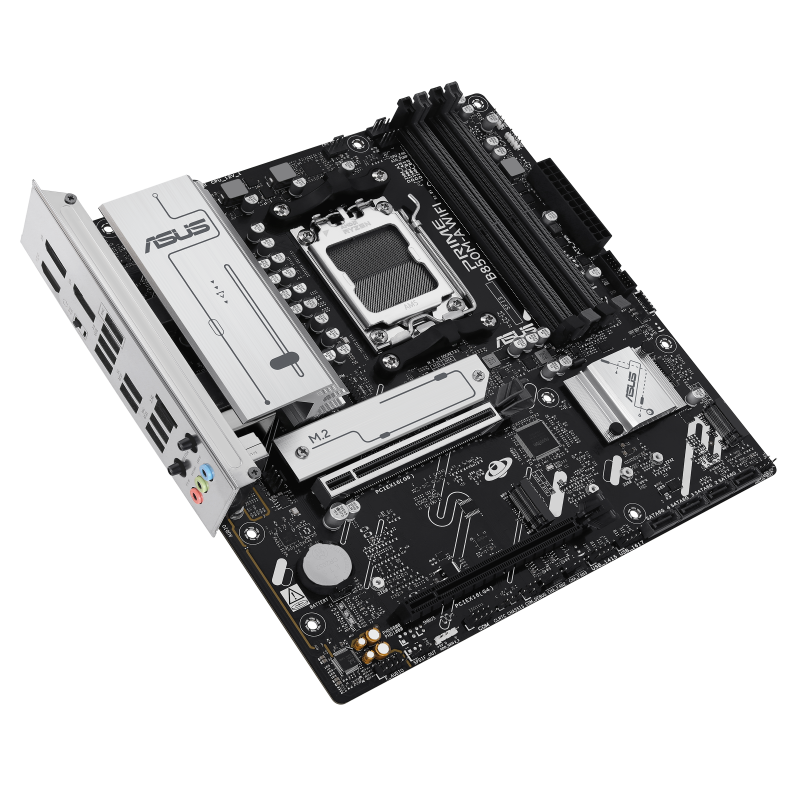

PRIME B850M-A WIFI
Â
Specifications
Â
| Model | PRIME B850M-A WIFI |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000/8000/7000 Series |
| Chipset | AMD B850 |
| Memory | 4Ă— DIMM DDR5, up to 256GB, up to 8000+MT/s (OC), ECC/Non-ECC, Dual channel, EXPO, AEMP |
| Graphics Output | 2Ă— DisplayPort (up to 8K@30Hz), 1Ă— HDMI (up to 4K@60Hz) |
| Expansion Slots | 1Ă— PCIe 5.0 x16 (Ryzen 9000/7000) 1Ă— PCIe 4.0 x16 (Ryzen 8000) 1Ă— PCIe 4.0 x16 (B850) |
| Storage | 3Ă— M.2 slots4Ă— SATA 6Gb/s RAID 0/1/5/10 (varies by CPU) |
| Ethernet | 1Ă— Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 6E (2x2), Bluetooth 5.3 |
| Rear USB Ports | 2Ă— USB 10Gbps Type-A 2Ă— USB 5Gbps Type-A 4Ă— USB 2.0 Type-A |
| Front USB Ports | 1Ă— USB 5Gbps Type-C 2Ă— USB 5Gbps (via header) 4Ă— USB 2.0 (via headers) |
| Audio | Realtek 7.1 HD Audio, supports 24-bit/192kHz |
| Audio Features | Audio shielding, premium capacitors, dedicated PCB layers |

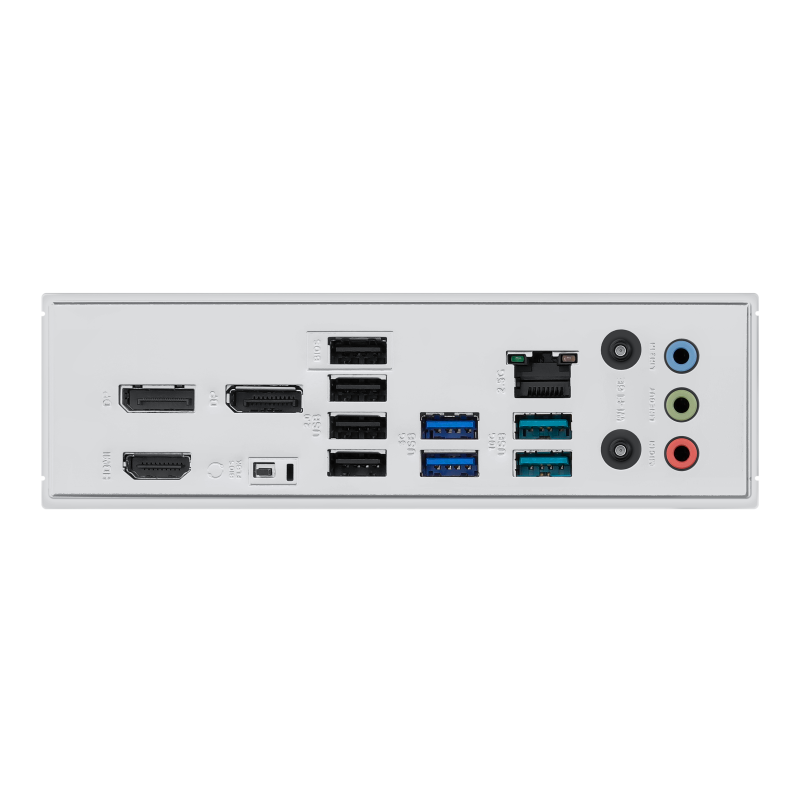

| Back Panel I/O | USB ports, DisplayPort, HDMI, Wi-Fi module, Ethernet, Audio jacks, BIOS FlashBack™ button |
| Cooling Headers | 1Ă— CPU, 1Ă— CPU OPT, 1Ă— AIO Pump, 3Ă— Chassis fans (4-pin) |
| Power Connectors | 24-pin Main, 8-pin +12V, 4-pin +12V |
| Internal Connectors | M.2, SATA, USB, RGB, COM, TPM, Audio, Clear CMOS, S/PDIF, System Panel |
| Special Features | 5X Protection III, Q-Design, M.2/VRM heatsinks, BIOS FlashBack™, Aura Sync |
| Software | Armoury Crate, Aura Creator, Fan Xpert 2+, AI Advisor, TurboV Core, ASUS CPU-Z, Norton 360, WinRAR |
| BIOS | 256Mb UEFI AMI BIOS with EZ Mode, CrashFree, EZ Flash, MyHotkey |
| Manageability | WOL, PXE |
| Accessories | 2Ă— SATA cables, WiFi antenna, M.2 rubber & screws, Quick start guide |
| OS Support | Windows 11, Windows 10 64-bit |
| Form Factor | mATX (24.4 Ă— 24.4 cm / 9.6 Ă— 9.6 in) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS PRIME B850M-A WIFI mATX AMD Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, Supports 3 x M.2 Slots & 4 x SATA 6Gb/s Ports, Wi-Fi 6E & BT 5.3 | 90MB1LN0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS PRIME B850M-A WIFI mATX AMD Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, Supports 3 x M.2 Slots & 4 x SATA 6Gb/s Ports, Wi-Fi 6E & BT 5.3 | 90MB1LN0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
PRIME B850M-A WIFI
Shipping Weight
1.45 Kg
Shipping Dimensions
7.00 cm x 28.00 cm x 28.01 cm
Chipset
AMD B850
Form Factor
Micro ATX
M.2 Slots
3
Maximum Memory
256 GB
Memory Slots
4
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
2
Socket
AM5
