Product Description
Prime B850M-KÂ
Â
Specifications
| Model | PRIME B850M-K |
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series (see support list) |
| Chipset | AMD B850 |
| Memory | 2 × DIMM, max 128GB DDR5; Speeds: 8200+MT/s (Ryzen 9000), 8400+MT/s (Ryzen 8000), 8000+MT/s (Ryzen 7000); Dual-channel; Supports EXPO™, AEMP, On-Die ECC |
| Graphics | 1 Ă— DisplayPort 1.4 (max 8K@30Hz), 1 Ă— HDMI 2.1 (max 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 Ă— PCIe 5.0 x16; Ryzen 8000: 1 Ă— PCIe 4.0 x16 (x8/x4); B850: 1 Ă— PCIe 4.0 x16 (x4 mode) |
| Storage | Ryzen 9000/7000: M.2_1 (PCIe 5.0 x4, 2280), M.2_2 (PCIe 4.0 x4, 2242/2260/2280); Ryzen 8000: M.2_1 (PCIe 4.0 x4, 2280), M.2_2 (PCIe 4.0 x4/x2, 2242/2260/2280); B850: 4 Ă— SATA 6Gb/s; AMD RAIDXpert2 (RAID 0/1/5/10 depending on CPU) |
| Ethernet | Realtek 2.5Gb Ethernet, ASUS LANGuard |
| USB (Rear I/O) | 2 Ă— USB 10Gbps (Type-A), 2 Ă— USB 5Gbps (Type-A), 4 Ă— USB 2.0 (Type-A) |
| USB (Front I/O) | 1 Ă— USB 5Gbps Type-C, 1 Ă— USB 5Gbps header (2 ports), 2 Ă— USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround HD Audio, 24-bit/192kHz, Audio shielding, premium capacitors, dedicated PCB layers |
| Back Panel I/O | 2 Ă— USB 10Gbps, 2 Ă— USB 5Gbps, 4 Ă— USB 2.0, 1 Ă— DP, 1 Ă— HDMI, 1 Ă— 2.5Gb LAN, 3 Ă— audio jacks, 1 Ă— BIOS FlashBack, 1 Ă— PS/2 combo |
| Internal I/O | 1 Ă— CPU fan header, 3 Ă— chassis fan headers, 1 Ă— 24-pin ATX, 1 Ă— 8-pin CPU, 2 Ă— M.2, 4 Ă— SATA, 1 Ă— USB-C 5Gbps, 1 Ă— USB 5Gbps header, 2 Ă— USB 2.0 headers, 3 Ă— ARGB Gen2, 1 Ă— Clear CMOS, 1 Ă— COM, 1 Ă— Front audio, 1 Ă— S/PDIF out, 1 Ă— SPI TPM, 1 Ă— System panel |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, etc.), Q-Design, Thermal solutions (VRM/M.2 heatsinks), EZ DIY (BIOS FlashBack), Aura Sync RGB |
| Software Features | Armoury Crate, Aura Creator/Sync, Fan Xpert 2+, AI Advisor, DriverHub, TurboV Core, CPU-Z, Adobe CC trial, Norton 360 (60 days), WinRAR (40 days) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3, MyHotkey |
| Manageability | WOL by PME, PXE |

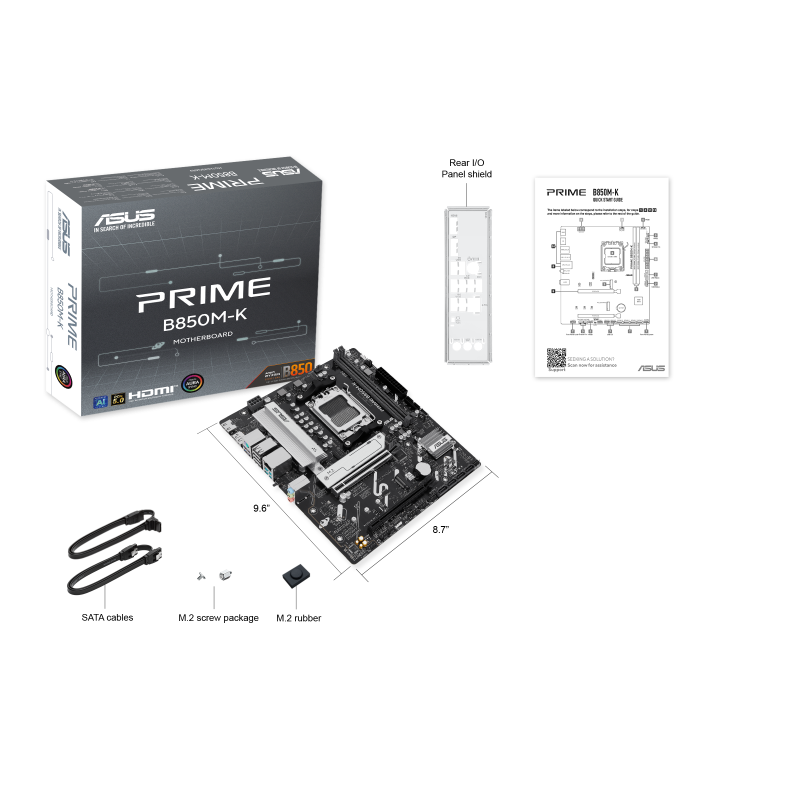

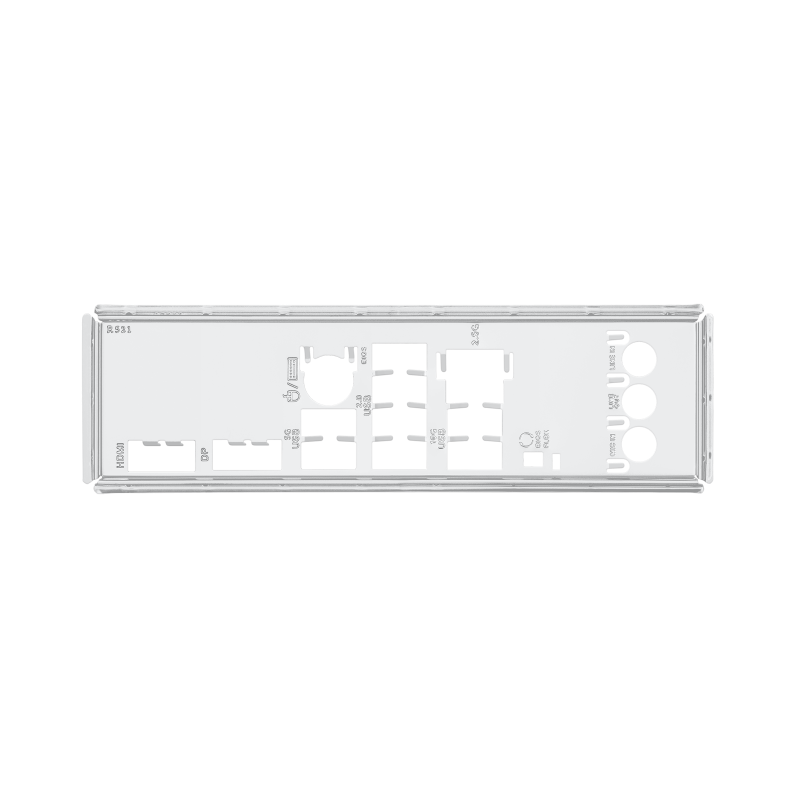

| Accessories | 2 Ă— SATA cables, I/O shield, M.2 rubber package, M.2 screw package, Quick start guide |
| OS Support | Windows 11 / Windows 10 64-bit |
| Form Factor | micro-ATX, 9.6" Ă— 8.7" (24.4 Ă— 22.1 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS Prime B850M-K AM5 Micro-ATX Motherboard, AMD B850 Chipset, 2x DIMM DDR5, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | 90MB1LV0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS Prime B850M-K AM5 Micro-ATX Motherboard, AMD B850 Chipset, 2x DIMM DDR5, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | 90MB1LV0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Shipping Weight
1.45 Kg
Shipping Weight
1.45 Kg
Shipping Dimensions
7.00 cm x 28.00 cm x 28.00 cm
M.2 Slots
2
Maximum Memory
128 GB
Memory Type
DDR5
Multi-GPU Support
--
Model
Prime B850M-K
Shipping Dimensions
7.00 cm x 28.00 cm x 28.00 cm
Chipset
AMD B850
Form Factor
Micro ATX
Memory Slots
2
Memory Speed
--
PCI Express x16
1
Socket
AM5
