Product Description
Prime B860-Plus WiFiÂ
Specifications
| Model | PRIME B860-PLUS WIFI |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, up to 8666+ MT/s (OC), Non-ECC, Dual channel, XMP, AEMP III |
| Graphics | 1 x DisplayPort (4K@60Hz), 1 x HDMI™ (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 3 x PCIe 4.0 x16 (x1 mode) |
| Storage | 2 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz), Bluetooth® v5.3 |
| Rear USB Ports | 1 x USB 20Gbps (Type-C®), 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB Ports | 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| Audio | Realtek 7.1 Surround Sound CODEC, 24-Bit/192 kHz playback, Audio shielding, Premium capacitors |

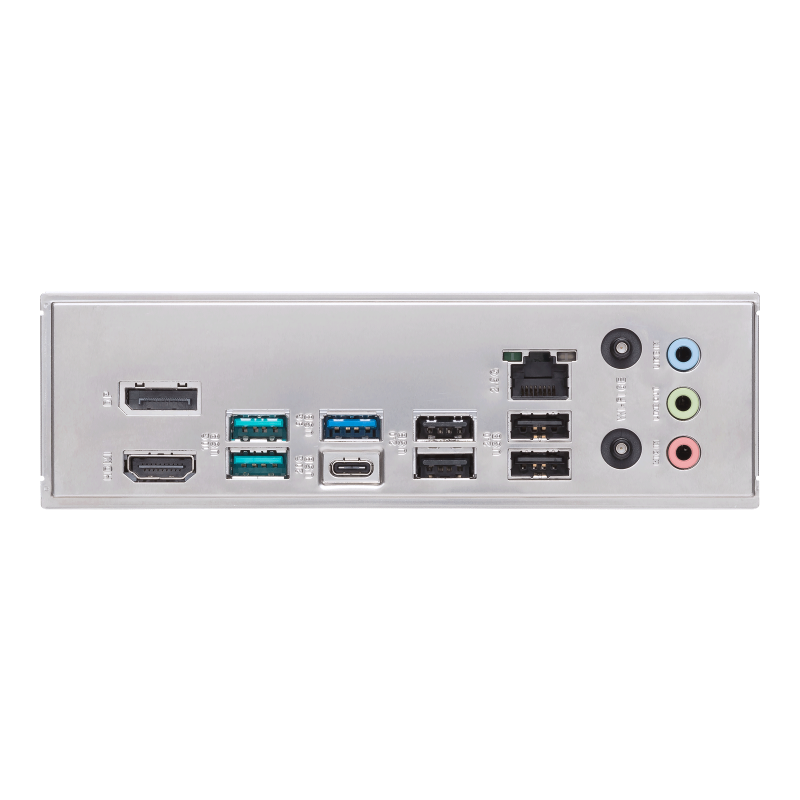

| Back Panel I/O Ports | USB 20Gbps, USB 10Gbps, USB 5Gbps, USB 2.0, DisplayPort, HDMI™, Ethernet, Wi-Fi module, Audio jacks |
| Internal I/O Connectors | Fan headers, Power connectors, 2 x M.2 slots, 4 x SATA 6Gb/s ports, USB headers |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
| Software Features | Armoury Crate, Aura Sync, Fan Xpert 2+, Norton 360 (60 days), WinRAR (40 days) |
| UEFI BIOS | ASUS EZ DIY, CrashFree BIOS 3, EZ Flash, MyHotkey |

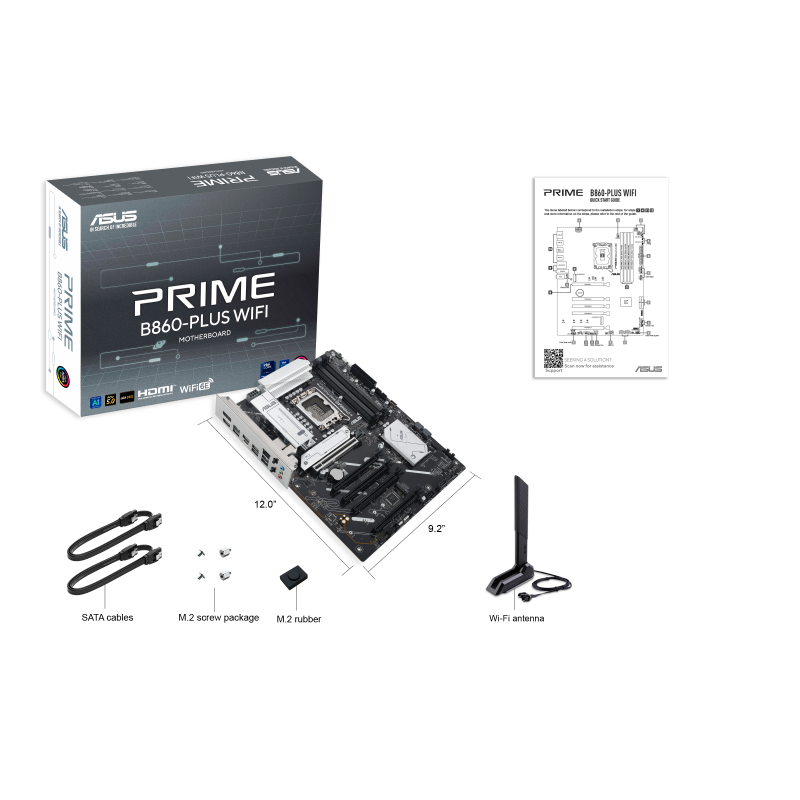

| Accessories | 2 x SATA cables, ASUS WiFi Q-Antenna, M.2 rubber and screw packages |
| Operating System | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Form Factor | ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS Prime B860-Plus WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 5x PCIe x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity | 90MB1K50-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS Prime B860-Plus WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 5x PCIe x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity | 90MB1K50-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Date first available
15 January, 2025
Shipping Weight
0.80 Kg
Form Factor
ATX
M.2 Slots
2
Memory Speed
--
Memory Type
DDR5
Socket
LGA 1851
Model
Prime B860-Plus WiFi
Shipping Dimensions
27.00 cm x 27.00 cm x 5.50 cm
Chipset
Intel B860
Maximum Memory
256 GB
Memory Slots
4
Multi-GPU Support
--
PCI Express x16
5
