Product Description

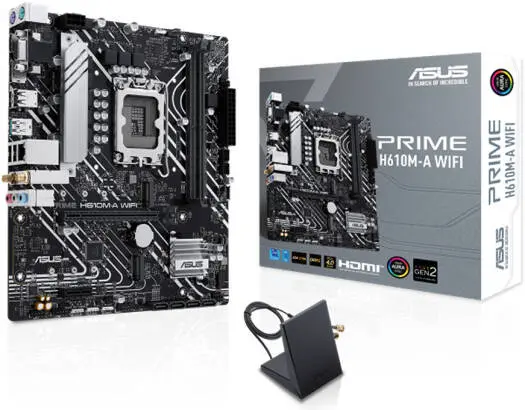

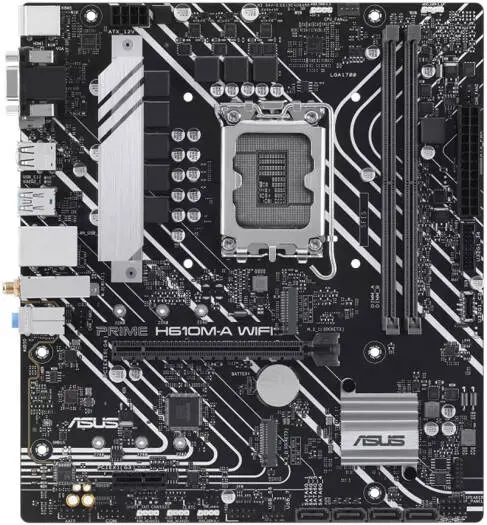

ASUS Prime H610M-A Wi-Fi | 90MB1G00-M0EAY0
The ASUS Prime H610M-A Wi-Fi motherboard is engineered to deliver essential performance, reliability, and modern connectivity for 12th and 13th Gen Intel® processors. Built on the Intel® H610 chipset, it provides a solid foundation for everyday computing, productivity builds, and compact workstations.
With DDR5 memory support up to 96GB, PCIe 4.0 x16 expansion, and dual M.2 (PCIe) storage slots, this motherboard ensures fast data access and responsive system performance. Its integrated Wi-Fi 5 and Bluetooth 5.0 enable stable wireless networking, while Intel® 1Gb Ethernet provides reliable wired connectivity.
The motherboard includes a rich selection of display outputs—DisplayPort, HDMI™, and VGA—making it ideal for multi-display setups. Comprehensive protection features via ASUS 5X Protection III, AI cooling profiles, and Aura Sync lighting headers deliver enhanced durability and customization.
Designed for builders who require stability, compatibility, and modern features in a Micro-ATX form factor, the Prime H610M-A Wi-Fi is a dependable choice for home, office, or light-duty creative systems.
Â
Â
Specifications
| Category | Specification |
| Model | ASUS Prime H610M-A Wi-Fi |
| Part Number | 90MB1G00-M0EAY0 |
| Form Factor | Micro-ATX (24.4 cm x 21.6 cm) |
| CPU Support | Intel LGA1700 for 12th & 13th Gen Core™, Pentium® Gold, Celeron® |
| Chipset | Intel® H610 |
| Memory Support | 2× DDR5 DIMM, up to 96GB, 5600/5400/5200/5000/4800 MHz |
| Memory Architecture | Dual Channel, Non-ECC, Unbuffered |
| Graphics Outputs | 1× DisplayPort, 1× HDMI™, 1× VGA |
| Expansion Slots | 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset) |
| Storage Support | 2× M.2 (PCIe), 4× SATA 6Gb/s |
| Ethernet | Intel® 1Gb LAN with ASUS LANGuard |
| Wireless | Wi-Fi 5 (802.11 a/b/g/n/ac) |
| Bluetooth | Bluetooth® 5.0 |
| Rear USB Ports | 1× USB 3.2 Gen2 Type-A, 4× USB 2.0 |
| Front USB Support | 1× USB 3.2 Gen1 Type-C, 2× USB 3.2 Gen1, up to 3× USB 2.0 |
| Audio | Realtek 7.1ch HD Audio CODEC |
| Back Panel I/O | USB ports, HDMI, DP, VGA, 2× PS/2, LAN, 3× audio jacks, Wi-Fi module |
| Internal I/O Headers | CPU Fan, Chassis Fans, M.2, SATA, USB, RGB Gen 2, power headers |
| Special Features | ASUS 5X Protection III, Q-Design, Aura Sync (ARGB Gen2), AI Cooling |
| Software | Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 (trial), WinRAR |
| BIOS | 128Mb UEFI AMI BIOS |
| Operating System | Windows 11 / Windows 10 (64-bit) |
| Included Accessories | 2× SATA cables, Wi-Fi antenna, I/O shield, M.2 screws, user guide |
