Product Description

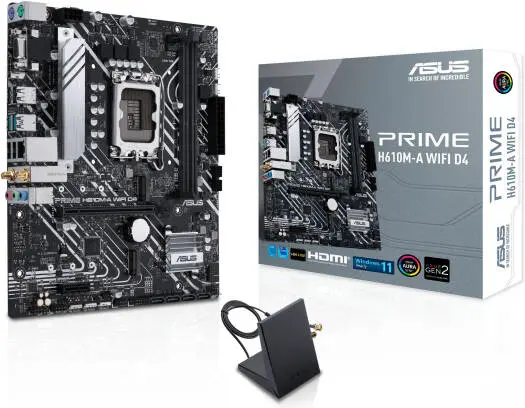

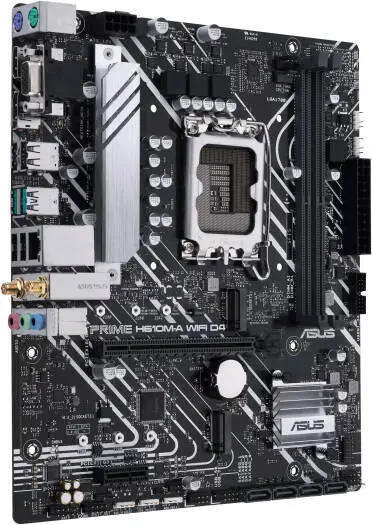

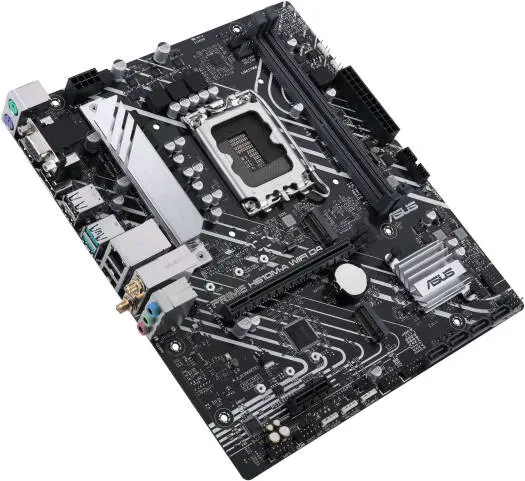

ASUS PRIME H610M-A WiFi D4 – Smart, Stable, and Ready to Perform
Product Description
The ASUS PRIME H610M-A WiFi D4 delivers the perfect balance of essential performance, durability, and connectivity — engineered for Intel® 14th, 13th, and 12th Gen processors.
Built on the reliable Intel® H610 chipset, this Micro-ATX motherboard provides all the core features you need for a smooth and stable PC experience, making it ideal for productivity, learning, and everyday computing.
Supporting up to 64GB of DDR4 memory, a PCIe 4.0 x16 SafeSlot, and dual M.2 slots, it ensures faster boot times, quick load speeds, and reliable performance for modern applications.
Connectivity is enhanced with Wi-Fi 5, Bluetooth® 5.0, and Intel® 1 Gb Ethernet, while ASUS 5X Protection III and Fan Xpert 2+ guarantee system longevity and optimal cooling.
Stylish, compact, and efficient, the PRIME H610M-A WiFi D4 also features Aura Sync RGB lighting for a personalized look and Armoury Crate software for centralized system management — combining functionality and flair in one dependable motherboard.
Specifications
| Category | Details |
| Model | ASUS PRIME H610M-A WiFi D4 |
| Form Factor | Micro-ATX (24.4 × 21.1 cm) |
| Chipset | Intel® H610 |
| CPU Support | LGA 1700 – Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold & Celeron® Processors |
| Memory Support | 2 × DDR4 DIMM Slots, Dual Channel, Up to 64 GB (3200 MHz Max), XMP Support |
| Graphics Outputs | 1 × DisplayPort (4K@60Hz) • 1 × HDMI (4K@60Hz) • 1 × D-Sub |
| Expansion Slots | 1 × PCIe 4.0 x16 (SafeSlot) • 1 × PCIe 3.0 x1 |
| Storage | 2 × M.2 (PCIe 3.0 x4) • 4 × SATA 6 Gb/s |
| Networking | Intel® 1 Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 5 (802.11 a/b/g/n/ac) • Bluetooth® 5.0 |
| Rear USB Ports | 2 × USB 3.2 Gen 2 (Type-A) • 4 × USB 2.0 (Type-A) |
| Front USB Headers | 1 × USB 3.2 Gen 1 Header (2 Ports) • 2 × USB 2.0 Headers (3 Ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC, 24-bit/192 kHz Playback, Audio Shielding |
| Back Panel I/O | 1 × DisplayPort • 1 × HDMI • 1 × D-Sub • 2 × USB 3.2 Gen 2 • 4 × USB 2.0 • 1 × Wi-Fi Module • 1 × Intel® 1 Gb LAN • 3 × Audio Jacks • 1 × PS/2 Keyboard & Mouse Ports |
| Internal I/O Connectors | 1 × 4-pin CPU Fan • 2 × 4-pin Chassis Fans • 1 × 24-pin Main Power • 1 × 8-pin CPU Power • 3 × Addressable Gen 2 Headers • 2 × Aura RGB Headers • COM • S/PDIF • TPM • Clear CMOS |
| Cooling & Thermal | VRM Heatsink • Fan Xpert 2+ Software • AI Cooling Controls |
| Protection & Durability | ASUS 5X Protection III (SafeSlot Core+, Overvoltage Protection, ESD Guards, DIGI+ VRM) |
| Lighting & Customization | Aura Sync RGB & Addressable Gen 2 Header Support |
| Software Suite | Armoury Crate • AI Suite 3 • AURA Creator • Fan Xpert 2+ • MyASUS • TurboV EVO • DIGI+ VRM • Norton (Trial) |
| BIOS | 128 Mb UEFI AMI BIOS • ASUS EZ Flash 3 • CrashFree BIOS 3 |
| Included Accessories | 2 × SATA Cables • Wi-Fi Antennas • I/O Shield • M.2 Screw Kit • Support DVD • User Guide |
| Operating System | Windows® 11 / 10 (64-bit) |
| Warranty | 3 Years Manufacturer Warranty |
