Product Description

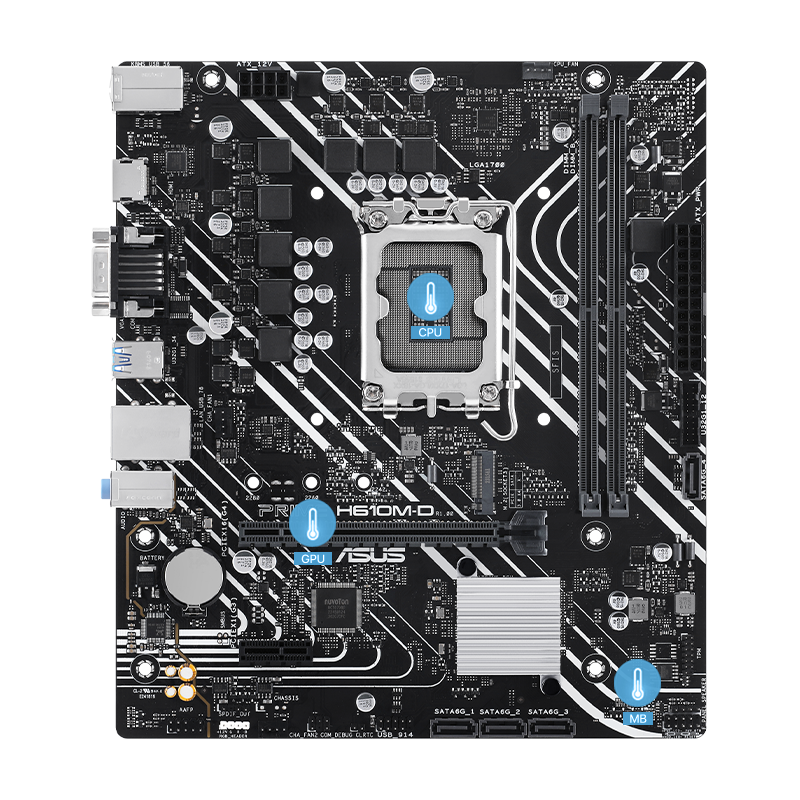

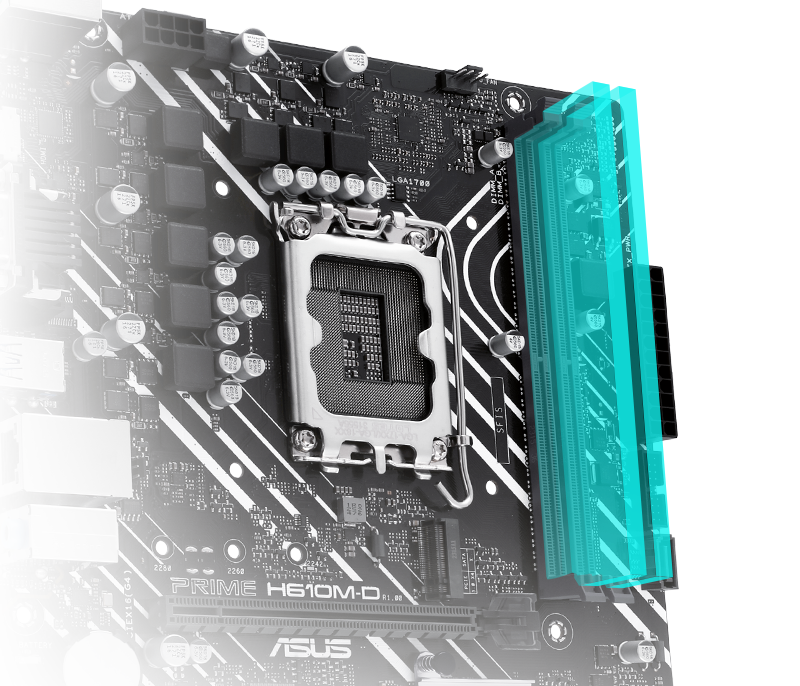

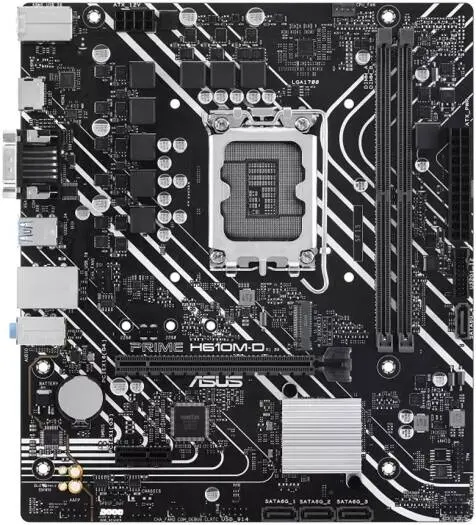

Prime H610M-DÂ
Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM port, RGB header
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Â
Â
SpecificationsÂ
| Model | PRIME H610M-D |
| News & Updates | 2024/08/12: New BIOS with Intel microcode (0x129) available for enhanced stability of Intel Core 13th and 14th Gen processors. |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold, Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 & 3.0 |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory (Supports Intel® Extreme Memory Profile (XMP)) *Supported memory types and configurations may vary (refer to ASUS support site for details) |
| Graphics | 1 x VGA port 1 x HDMI™ port (supports 4K@60Hz, HDMI 2.1) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x1 slot |
| Storage | 1 x M.2 slot and 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB:Â 2 x USB 3.2 Gen 1 (5G) ports (Type-A) + 4 x USB 2.0 ports (Type-A) Front USB:Â 1 x USB 3.2 Gen 1 header + 1 x USB 2.0 header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC (supports up to 24-Bit/192 kHz playback) *Requires chassis with HD audio module for 7.1 output |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (5G) ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan/Cooling:Â 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers Power:Â 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector Storage:Â 1 x M.2 slot, 4 x SATA 6Gb/s ports USB:Â 1 x USB 3.2 Gen 1 header, 1 x USB 2.0 header |
| Miscellaneous | 1 x RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header, 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (Aluminum heatsink design) ASUS Lighting Control (RGB header) |
| Software Features | ASUS Exclusive Software (Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe, WinRAR) UEFI BIOS (ASUS EZ DIY) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables:Â 2 x SATA 6Gb/s cables Miscellaneous:Â 1 x I/O Shield, 1 x M.2 Anchor, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor (9.2 inch x 8.0 inch / 23.4 cm x 20.3 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS Prime H610M-D LGA 1700 m-ATX Motherboard, Intel H610 Chipset, 2x DDR5 DIMM Slots, 96GB Max Memory, 1x M.2 Slot, 1x PCIe 4.0 x16 Slot, Realtek 1Gb Ethernet | 90MB1G80-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS Prime H610M-D LGA 1700 m-ATX Motherboard, Intel H610 Chipset, 2x DDR5 DIMM Slots, 96GB Max Memory, 1x M.2 Slot, 1x PCIe 4.0 x16 Slot, Realtek 1Gb Ethernet | 90MB1G80-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
Prime H610M-D
Socket
LGA 1700
PCI Express x16
1
Date first available
08 October, 2024
Shipping Weight
0.60 Kg
Shipping Dimensions
5.50 cm x 27.50 cm x 26.00 cm
Chipset
H610
Form Factor
Micro ATX
M.2 Slots
1
Maximum Memory
96 GB
Memory Slots
2
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
