Product Description

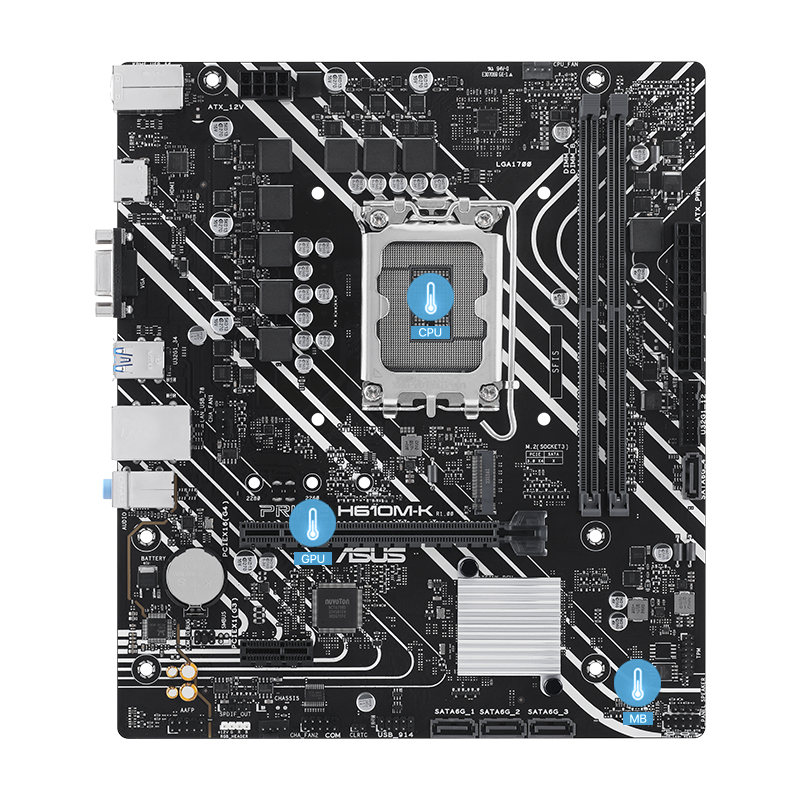

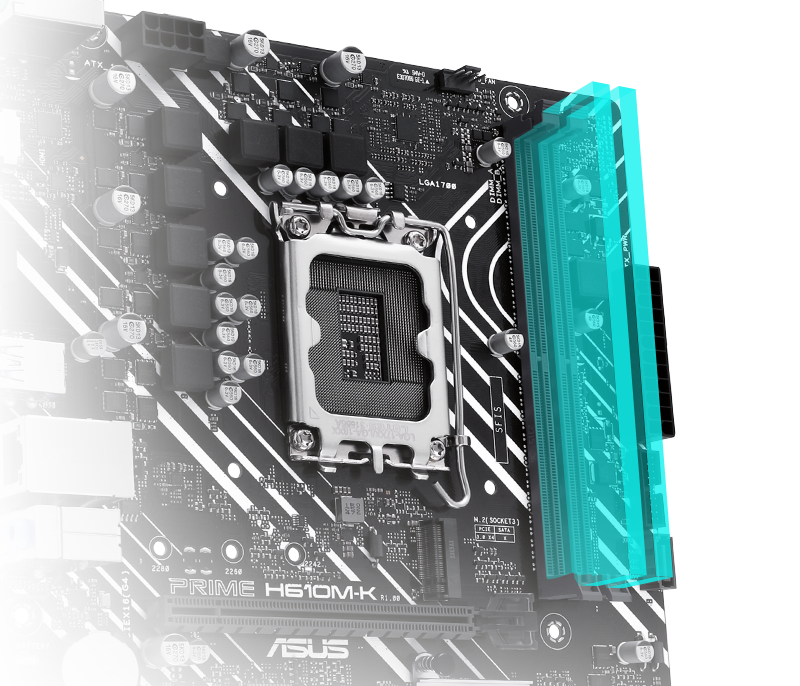

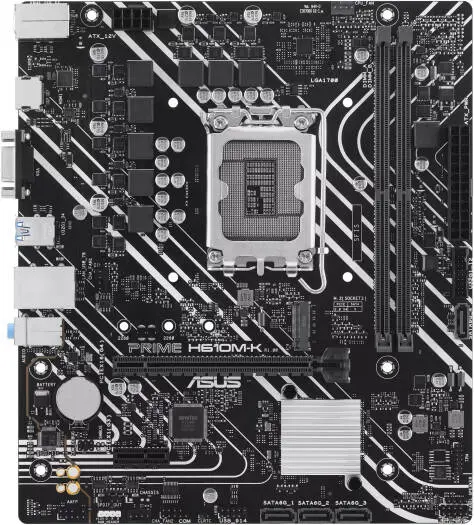

Prime H610M-K
Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header
Â
Â
Specifications
Â
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Graphics | 1 x VGA port, 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot <br> Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| USB | Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 4 x USB 2.0 ports (Type-A) <br> Front USB: 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | Same as Rear USB, plus 1 x VGA port, 1 x HDMI™ port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Various headers for fans, power, storage, USB, and other peripherals |
| Special Features | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS Lighting Control |
| Software Features | ASUS Exclusive Software: Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR <br> ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Accessories | Cables: 2 x SATA 6Gb/s cables <br> Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor <br> Documentation: 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor, 9.2 inch x 8.0 inch (23.4 cm x 20.3 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS Prime H610M-K Micro-ATX LGA 1700 Motherboard, Intel H610 Chipset, 2x DIMM DDR5 Slot, 96GB Max Memory, 1x M 2 Slots, 1x PCIe 4 0 x16 Slot, Realtek 1Gb Ethernet 90MB1GA0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS Prime H610M-K Micro-ATX LGA 1700 Motherboard, Intel H610 Chipset, 2x DIMM DDR5 Slot, 96GB Max Memory, 1x M 2 Slots, 1x PCIe 4 0 x16 Slot, Realtek 1Gb Ethernet 90MB1GA0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
Prime H610M-K
Socket
LGA 1700
Date first available
05 April, 2024
Shipping Weight
0.60 Kg
Shipping Dimensions
5.50 cm x 27.50 cm x 26.51 cm
Chipset
H610
Form Factor
Micro ATX
M.2 Slots
1
Maximum Memory
96 GB
Memory Slots
2
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
1
