Product Description
Prime H810M-A WIFIÂ
Â
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Â
Â
Specifications
| Model | PRIME H810M-A WIFI |
| News & Updates | Visit the GLOBAL website for updates and downloads. |
| CPU | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and 3.0 |
| Chipset | Intel® H810 Chipset |
| Memory | 2 x DIMM slots, max. 128GB DDR5, up to 6400MT/s, Dual channel, Intel® XMP, ASUS AEMP II |
| Graphics | 1 x DisplayPort (4K@60Hz) 1 x HDMI™ (4K@60Hz) VGA resolution support depends on CPU or GPU. |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x1 slot |
| Storage | 2 x M.2 slots (Key M, PCIe 4.0) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 1Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax, 1x1), Bluetooth® v5.3 |
| USB | Rear: 2 x USB 10Gbps (Type-A), 4 x USB 2.0 Front: 1 x USB 5Gbps connector (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header |
| Audio | Realtek 7.1 Surround Sound HD Audio, Audio Shielding, Premium capacitors, 24-Bit/192 kHz playback |

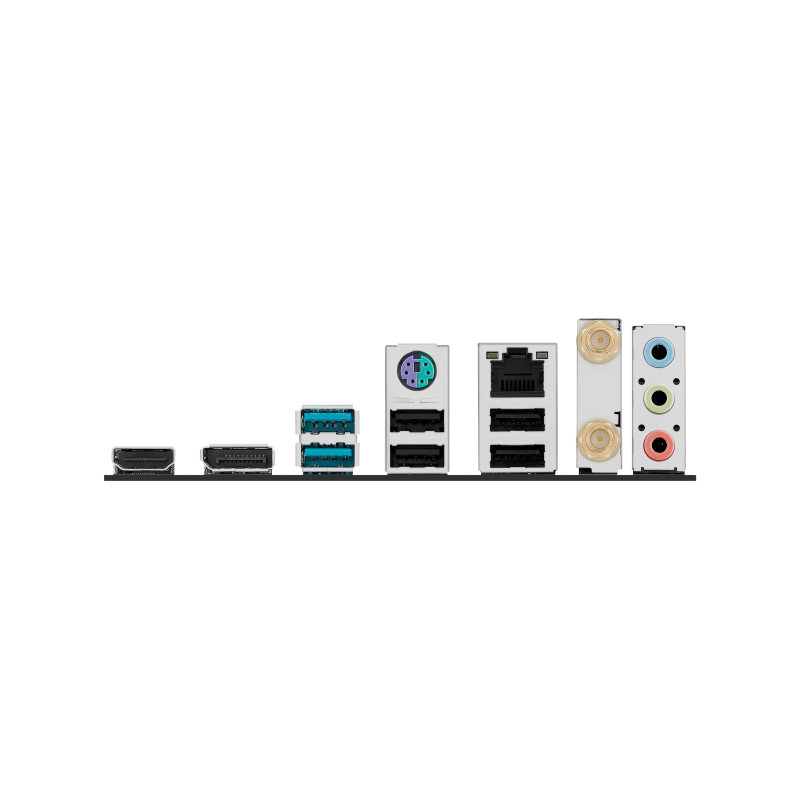

| Back Panel I/O Ports | 2 x USB 10Gbps (Type-A) 4 x USB 2.0 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Intel® 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 keyboard/mouse combo port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan 1 x USB 5Gbps connector (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header 3 x Addressable Gen2 headers, 1 x SPI TPM header |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-DIMM, Q-Dashboard, Q-LED Core), Thermal Solution (VRM heatsink), Aura Sync (Addressable Gen 2 headers) |
| Software Features | Armoury Crate (Aura Creator, Sync, Fan Xpert 2+), ASUS DriverHub, GlideX, Norton 360 Deluxe (60-day trial), WinRAR (40-day trial) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |

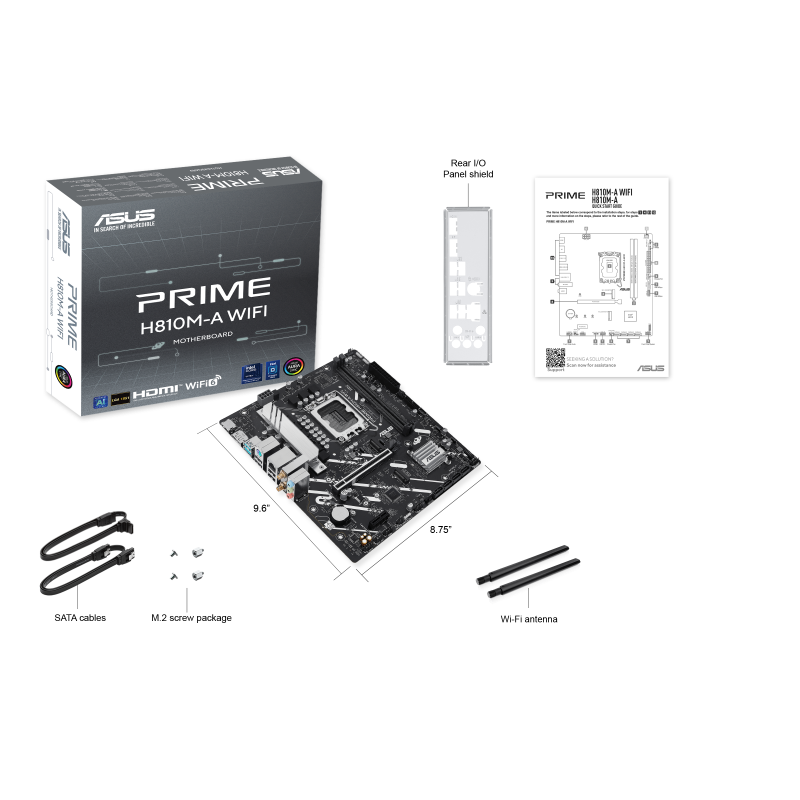

| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x Screw package for M.2 SSD |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX, 9.6 x 8.75 inches (24.4 x 22.2 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS Prime H810M-A WiFi LGA 1851 Micro-ATX Motherboard, Intel H810 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slot, 2x M.2 Slot, WiFi & BT Connectivity | 90MB1KJ0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS Prime H810M-A WiFi LGA 1851 Micro-ATX Motherboard, Intel H810 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 4.0 x16 Slot, 2x M.2 Slot, WiFi & BT Connectivity | 90MB1KJ0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
