Product Description
PRIME X870-P
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.Â
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Â
Specifications
| Product Name | ASUS PRIME X870-P |
| CPU | AMD Socket AM5 for AMD Ryzenâ„¢ 9000, 8000, & 7000 Series Desktop Processors* *Refer to the CPU support list for details. |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzenâ„¢ 9000, 8000, & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPOâ„¢) ASUS Enhanced Memory Profile (AEMP) *Adjustments based on market specifications. |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports (support USB Type-C® display outputs) | Supports 4K@60Hz as specified in HDMI 2.1. | ** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. VGA resolution support depends on CPU/graphics cards. |
| Expansion Slots | AMD Ryzenâ„¢ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzenâ„¢ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |Â AMD X870 Chipset: 2 x PCIe 4.0 x16 slots (support x1 mode)* *Check the PCIe bifurcation table for details. |
| Storage | 4 x M.2 slots and 2 x SATA 6Gb/s ports* M.2_1: PCIe 5.0 x4 (Ryzen 9000 & 7000 Series) M.2_1: PCIe 4.0 x4 (Ryzen 8000 Series) M.2_2: PCIe 4.0 x4 (AMD X870) M.2_3: PCIe 4.0 x4 (AMD X870) |Â M.2_4: PCIe 3.0 x2* 2 x SATA 6Gb/s ports*** *Supports AMD RAIDXpert2 Technology. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| USB | Rear USB (Total 10 ports): 2 x USB4® (40Gbps) ports (USB Type-C®) 1 x USB 10Gbps port (Type-A) 3 x USB 5Gbps ports (Type-A) 4 x USB 2.0 ports (Type-A) Front USB (Total 7 ports): 1 x USB 10Gbps connector (USB Type-C®) 1 x USB 5Gbps header (2 additional USB 5Gbps ports) 2 x USB 2.0 headers (4 additional USB 2.0 ports) *USB Type-C® power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers *Requires chassis with HD audio module for 7.1 Surround Sound. |

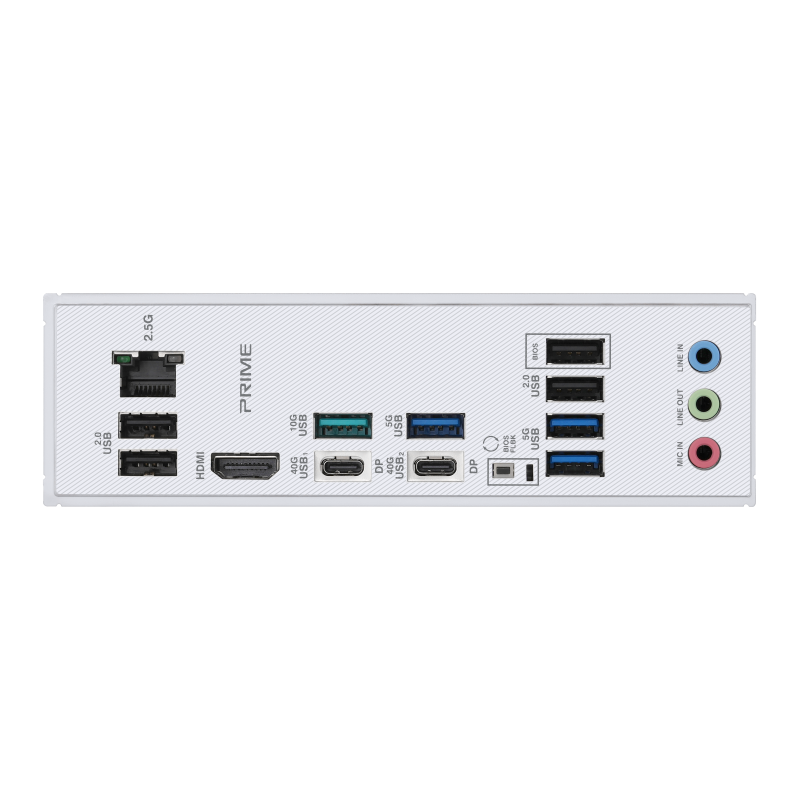

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (USB Type-C®) 1 x USB 10Gbps port (Type-A) 3 x USB 5Gbps ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling Related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related: 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB: 1 x USB 10Gbps connector (USB Type-C®) 1 x USB 5Gbps header (2 additional USB 5Gbps ports) 2 x USB 2.0 headers (4 additional USB 2.0 ports) Miscellaneous: 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design ASUS EZ DIY: BIOS FlashBackâ„¢ button, BIOS FlashBackâ„¢ LED, ProCool, Pre-mounted I/O shield, SafeSlot Aura Sync: Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving) ASUS DriverHub TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

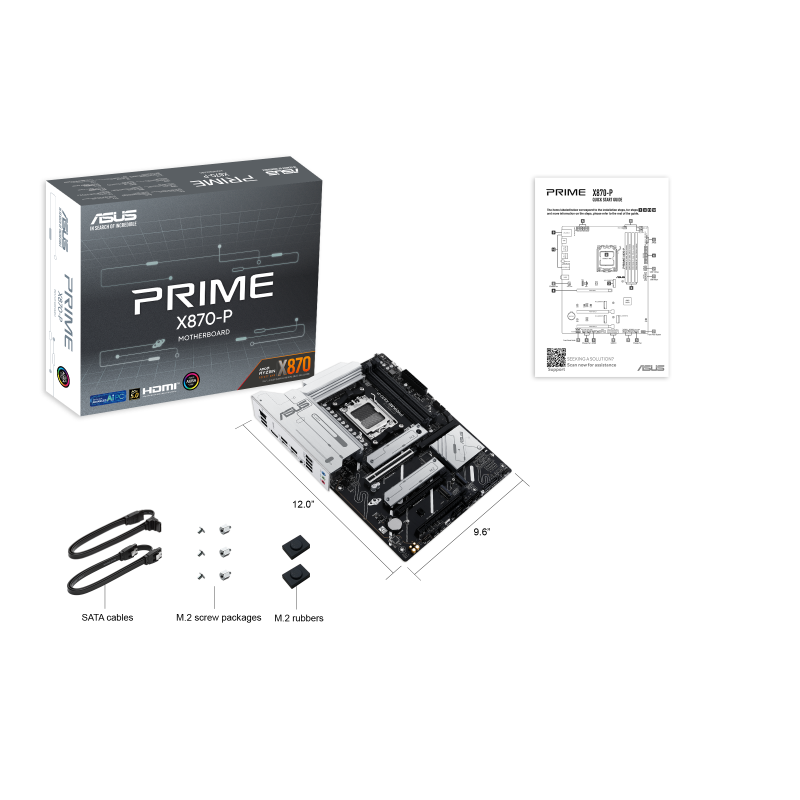

| Accessories | Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation: 1 x Quick start guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch or 30.5 cm x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS PRIME X870-P ATX Motherboard, AMD X870 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, Realtek 2.5Gb Ethernet, 4x M.2 Slots, 1x PCIe 5.0, 2x PCIe 4.0 x16, HDMI Port | 90MB1IT0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS PRIME X870-P ATX Motherboard, AMD X870 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, Realtek 2.5Gb Ethernet, 4x M.2 Slots, 1x PCIe 5.0, 2x PCIe 4.0 x16, HDMI Port | 90MB1IT0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
PRIME X870-P
Date first available
30 September, 2024
Shipping Weight
1.30 Kg
Shipping Dimensions
26.50 cm x 27.00 cm x 5.50 cm
Chipset
AMD X870
Form Factor
ATX
M.2 Slots
4
Maximum Memory
192 GB
Memory Slots
4
Memory Speed
--
Memory Type
DDR5
Multi-GPU Support
--
PCI Express x16
3
Socket
AM5
