Product Description

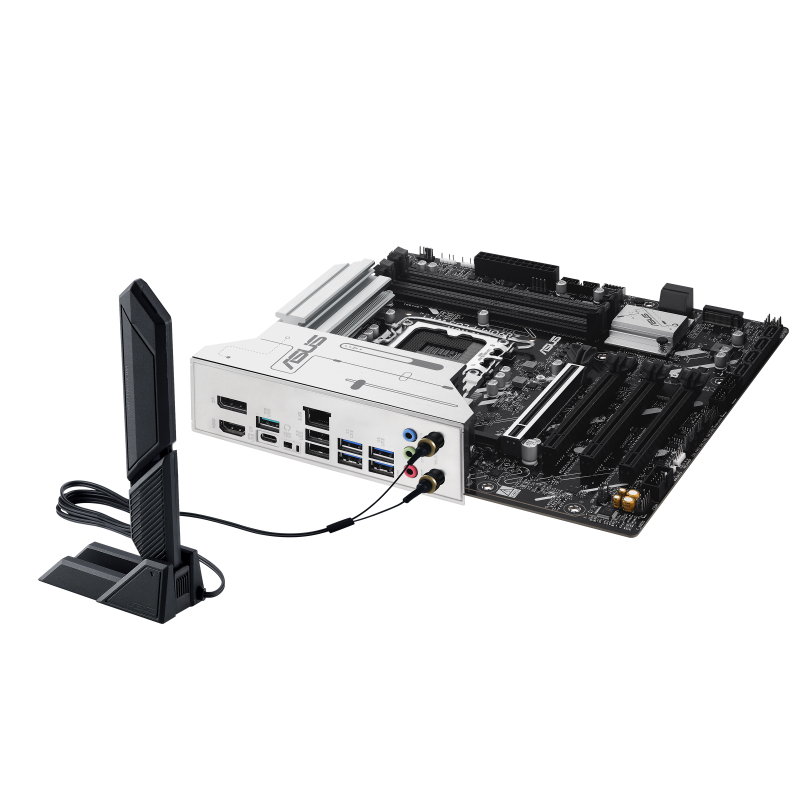

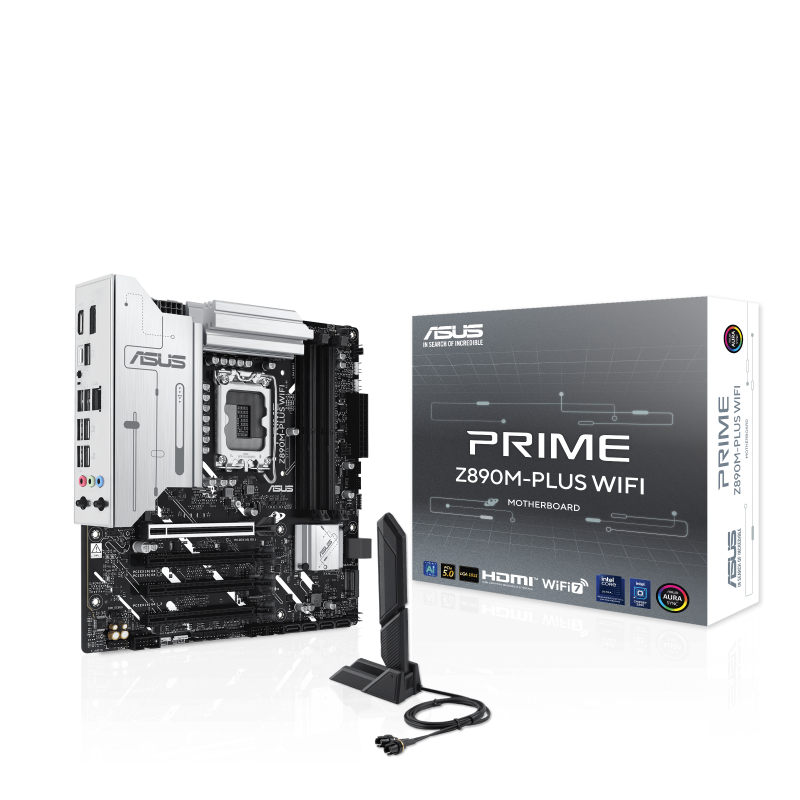

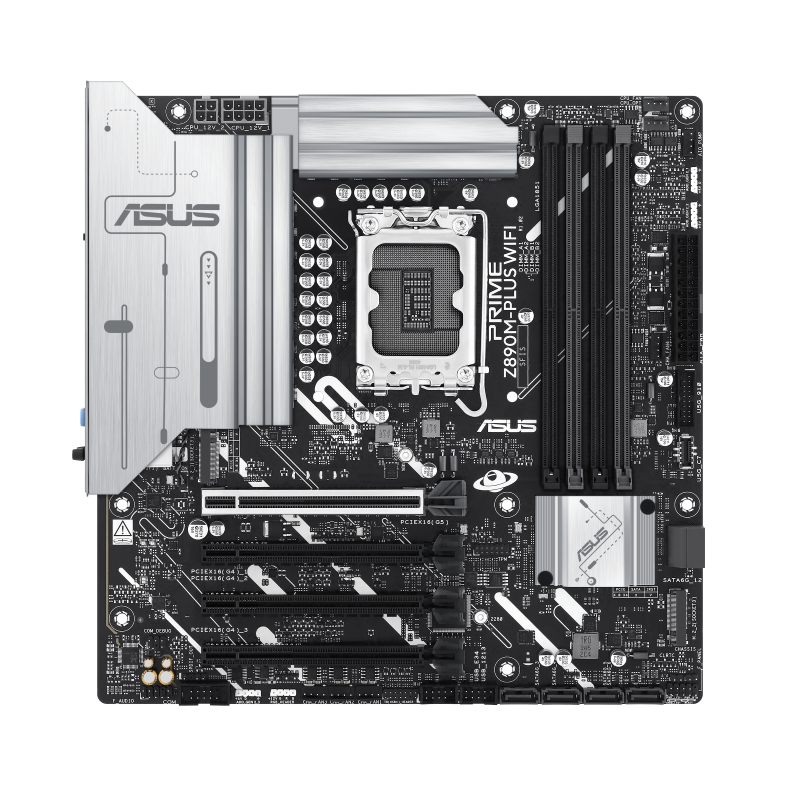

Prime Z890M-Plus Wi-Fi
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Â
Â
SpecificationsÂ
| Model | PRIME Z890M-PLUS WIFI |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel® Z890 Chipset |
| Memory | 4x DIMM slots, max. 192GB, DDR5, Dual Channel, 8666+MT/s (OC), Non-ECC, Un-buffered |
| Graphics | 1x DisplayPort (4K@60Hz), 1x HDMI (4K@60Hz), 1x USB-C 20Gbps (4K@120Hz) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x16 (x1 mode) |
| Storage | 3x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4), 6x SATA 6Gb/s ports |
| Ethernet | 1x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 2.9Gbps), Bluetooth® v5.4 |
| Rear USB Ports | 1x USB 20Gbps (USB-C with DP Alt mode), 1x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A), 2x USB 2.0 (Type-A) |
| Front USB Ports | 1x USB 5Gbps (USB-C), 2x USB 5Gbps, 4x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC, up to 24-Bit/192 kHz |

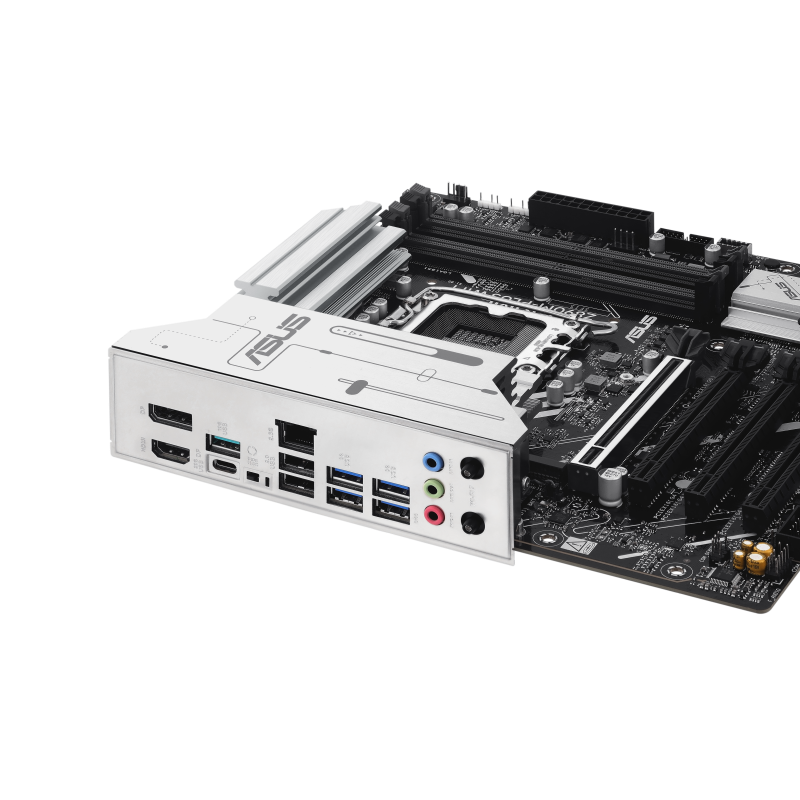

| Back Panel I/O Ports | 1x USB 20Gbps (USB-C with DP Alt mode), 1x USB 10Gbps (Type-A), 4x USB 5Gbps, 2x USB 2.0, 1x DisplayPort, 1x HDMI, 1x Wi-Fi module, 1x 2.5Gb Ethernet, 3x Audio jacks |
| Internal I/O Connectors | 1x CPU Fan header, 1x CPU OPT Fan header, 1x AIO Pump header, 4x Chassis Fan headers, 1x 24-pin Main Power, 1x 8-pin +12V CPU Power, 1x 4-pin +12V CPU Power, 3x M.2 slots, 6x SATA ports, 1x USB-C (5Gbps), 2x USB 5Gbps, 4x USB 2.0 ports |
| Special Features | ASUS 5X Protection III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software | Armoury Crate, Aura Sync, Fan Xpert 4, ASUS AI Advisor, TurboV Core, Norton 360 (60 Days), WinRAR (40 Days) |
| BIOS | UEFI AMI BIOS, 256Mb Flash ROM, ASUS EZ DIY |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | mATX, 24.4 cm x 24.4 cm |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS Prime Z890M-Plus Wi-Fi LGA 1851 Micro ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16 Slot, 3x M.2 Slots | 90MB1J80-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS Prime Z890M-Plus Wi-Fi LGA 1851 Micro ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16 Slot, 3x M.2 Slots | 90MB1J80-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
