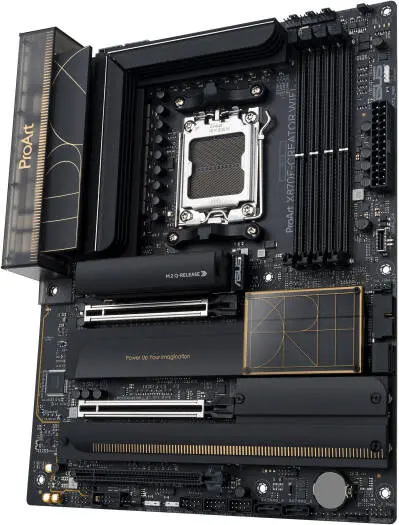

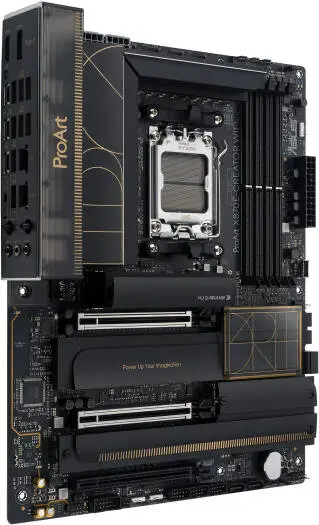

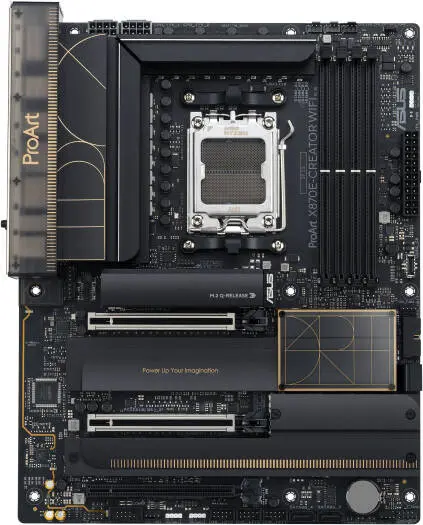

ASUS ProArt X870E-Creator WiFi – The Power Behind Every Creation
Product Description
Unleash your creative potential with the ASUS ProArt X870E-Creator WiFi, a premium motherboard engineered to meet the demands of modern creators, designers, and content professionals.
Powered by the latest AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series processors, it delivers unmatched stability through a robust 16+2+2 power stage design.
With next-generation DDR5 memory, PCIe® 5.0 support, and ultra-fast connectivity — including dual USB4® ports, 10G + 2.5G Ethernet, and WiFi 7 — this board is built for uncompromising performance across every creative workflow, from 3D rendering to video editing and AI-powered production.
Aesthetically, the ProArt X870E embodies refined professionalism with a tone-on-tone black finish highlighted by metallic gold accents, and a translucent I/O cover offering a subtle glimpse into its premium engineering.
It’s not just a motherboard — it’s the heart of your creative workstation.
Specifications
| Category | Details |
| CPU Support | AMD Socket AM5 for Ryzenâ„¢ 9000 / 8000 / 7000 Series (check ASUS for full list) |
| Chipset | AMD X870E |
| Memory | 4 × DDR5 DIMM slots, up to 192GB, speeds up to 8000+ MT/s (OC) |
| Graphics | 1 × HDMI™ (4K@60Hz), 2 × USB4® (40Gbps) ports supporting up to 8K@60Hz |
| Expansion Slots | 2 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 |
| Storage | 4 × M.2 PCIe slots, 4 × SATA 6Gb/s ports |
| Ethernet | 1 × Marvell® AQtion 10Gb + 1 × Intel® 2.5Gb LAN with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 6.5Gbps), Bluetooth® v5.4 (OS dependent) |
| USB Ports | Rear: 11 ports (2 × USB4®, 1 × 20Gbps, 7 × 10Gbps, 1 × USB 2.0) Front: 9 ports (1 × 20Gbps, 2 × 5Gbps, 6 × USB 2.0) |
| Audio | Realtek ALC1220P 7.1 Surround Sound, 32-Bit/192kHz playback |

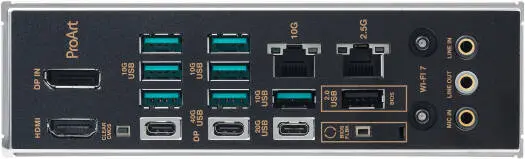

| Back I/O Ports | 2 × USB4®, 1 × USB 20Gbps, 7 × USB 10Gbps, 1 × USB 2.0, 1 × HDMI™, 1 × DisplayPort, 1 × Wi-Fi module, 10G + 2.5G LAN, 3 × Audio jacks |
| Internal I/O | Multiple fan headers, power connectors, storage and USB headers |
| Special Features | ASUS 5X Protection III, Q-Design, Thermal Solution, AURA Sync RGB |
| Software | Armoury Crate, TurboV Core, UEFI BIOS (256 Mb Flash ROM) |

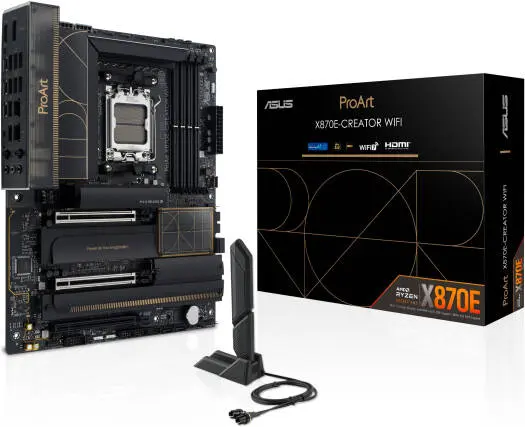

| Accessories | Wi-Fi Q-antenna, cables, cooling kit, Q-connector, documentation |
| Operating System | Windows® 11 |
| Form Factor | ATX (12 × 9.6 in / 30.5 × 24.4 cm) |
