Product Description

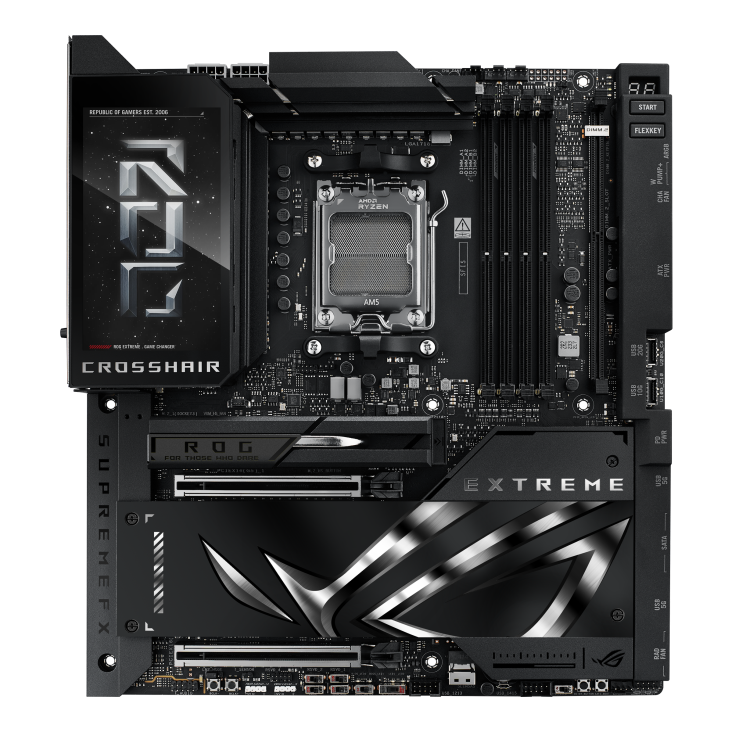

ROG CROSSHAIR X870E EXTREME
Â
Specifications
​
| Model | ROG CROSSHAIR X870E EXTREME |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory | 4×DIMM slots, up to 256GB DDR5; Speeds: 8200+MT/s (Ryzen 9000), 9000+MT/s (Ryzen 8000), 8000+MT/s (Ryzen 7000); Supports ECC & Non-ECC; Dual Channel; EXPO™, AEMP, NitroPath |
| Graphics | 1× HDMI 2.1 (4K@60Hz) 2× USB4® Type-C (DisplayPort 1.4a, 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 2Ă— PCIe 5.0 x16 (x16, x8/x8, x8/x4/x4 depending on M.2 use) Ryzen 8700/8600/8400: 2Ă— PCIe 4.0 x16 (x8 only, second slot disabled) Ryzen 8500/8300: 2Ă— PCIe 4.0 x16 (x4 only, second slot disabled) |
| Storage | Up to 5Ă— M.2 + 1Ă— SlimSAS + 4Ă— SATA 6Gb/s Ryzen 9000/7000: M.2_1,2,3 support PCIe 5.0 x4 Ryzen 8000: M.2_1 PCIe 4.0, M.2_2 & M.2_3 not supported DIMM.2 (2 slots) PCIe 4.0 x4 SlimSAS PCIe 4.0 x4 via adapter |
| RAID Support | Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10 |
| Ethernet | 1× Realtek 5GbE 1× Marvell® AQtion 10GbE ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2Ă—2, 2.4/5/6GHz, up to 6.5Gbps) Bluetooth 5.4 |
| USB (Rear I/O) | 2× USB4® 40Gbps (Type-C) 10× USB 10Gbps (8× Type-A, 2× Type-C) |
| USB (Front I/O) | 1Ă— USB 20Gbps Type-C (up to 60W PD/QC4+) 1Ă— USB 10Gbps Type-C 2Ă— USB 5Gbps headers (4 ports) 2Ă— USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 (ALC4082) ESS® ES9219 Quad DAC 120 dB SNR playback, 32-Bit/384kHz support Optical S/PDIF out, LED jacks |

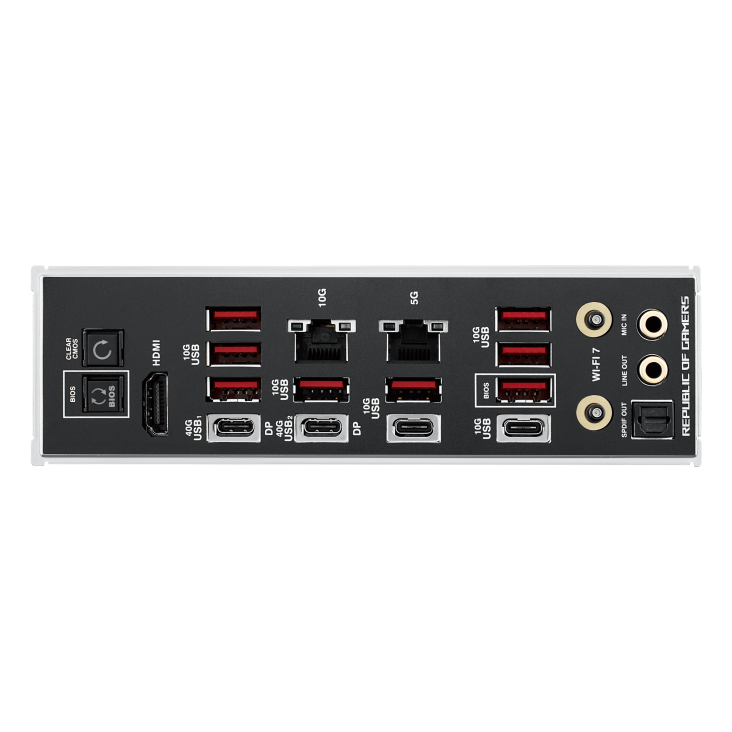

| Back Panel I/O | 2× USB4 Type-C, 10× USB 10Gbps, 1× HDMI, 1× Wi-Fi, 1× 5GbE, 1× 10GbE, 2× audio jacks, 1× Optical S/PDIF, BIOS FlashBack™, Clear CMOS |
| Internal I/O | CPU/Chassis/Radiator fan headers, W_PUMP, VRM Fan, 24-pin ATX, 2Ă— 8-pin CPU power, 8-pin PCIe power, 3Ă— onboard M.2, 1Ă— DIMM.2 (2Ă— M.2), SlimSAS, 4Ă— SATA, USB headers, ARGB headers, Debug buttons/switches |
| Special Features | Extreme OC Kit (LN2, Safe Boot, ReTry, Slow Mode, ProbeIt, FlexKey, Start button) ASUS Q-Design (Q-Latch, Q-Release, Q-Slide, Q-Antenna, Q-Code, Q-LED, Q-DIMM.2) ASUS Thermal Solution (M.2 & VRM heatsinks, metal backplate, 3D VC M.2 Heatsink) Dual BIOS Full Color 5" LCD |
| Software Features | ROG CPU-Z, Dolby Atmos, Armoury Crate, Fan Xpert 4, Aura Sync/Creator, AI Cooling II, GameFirst, AIDA64 (1yr), Internet Security (1yr), BIOS utilities |
| BIOS | Dual 256Mb UEFI AMI |
| Manageability | WOL by PME |
| Accessories | Wi-Fi Q-Antenna, Q-Connector, ROG DIMM.2 w/ Heatsink, Fan Kit, ARGB splitters, Fan splitters, SATA cables, Thermistor cables, ROG stickers, screwdriver, logo plate, bottle opener, USB drive (drivers), Quick Start Guide |
| Operating System | Windows 11 |
| Form Factor | E-ATX, 12" Ă— 10.9" (30.5 Ă— 27.7 cm) |
