Product Description

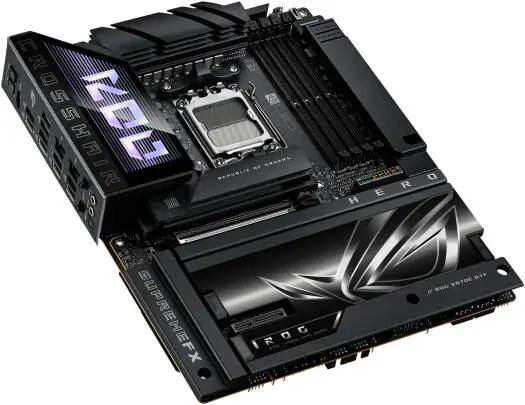

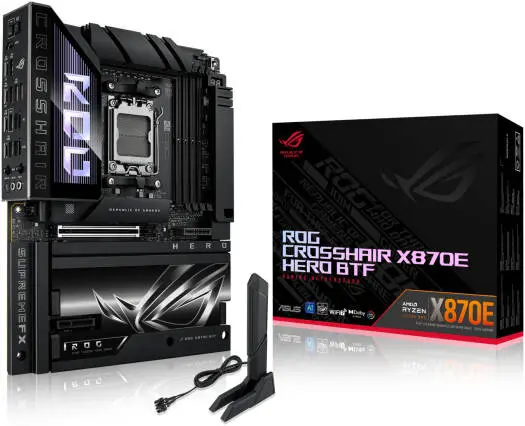

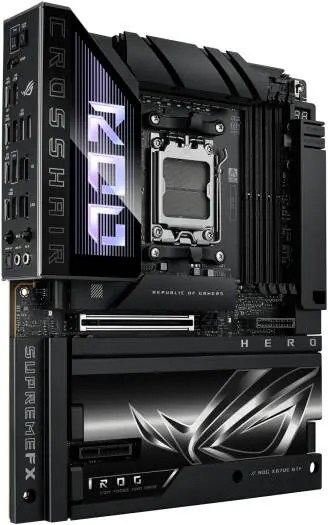

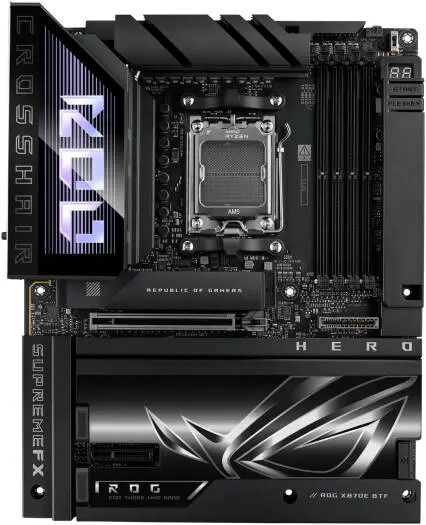

ASUS ROG CROSSHAIR X870E HERO BTF AM5
The ASUS ROG Crosshair X870E HERO BTF represents the latest evolution in premium AM5 motherboards—engineered for extreme performance, advanced cooling, and next-generation connectivity. Featuring the powerful AMD X870E chipset, this flagship motherboard unlocks the full potential of Ryzen™ 9000, 8000, and 7000 Series processors with uncompromising stability and overclocking capability.
Designed with ASUS Back-To-the-Future (BTF) technology, the HERO BTF delivers a clean, cable-free build by relocating major connectors to the rear of the board—enhancing airflow, aesthetics, and overall system organization. With support for DDR5 up to 8600+ MT/s (OC), PCIe 5.0 x16, and a massive 5x M.2 slots (PCIe 5.0/4.0), it provides elite bandwidth for gaming, rendering, and storage-intensive workflows.
Dual high-speed networking (Intel® 2.5GbE + Realtek 5GbE), next-gen Wi-Fi 7, extensive USB4 and USB-C connectivity, and the premium ROG SupremeFX 7.1 audio system with ESS DAC ensure top-tier performance for creators, professionals, and hardcore gamers.
With robust power delivery, advanced thermal design, AI-powered tuning, and ROG-exclusive enhancements such as Q-Design, Q-Code, and full Aura Sync lighting support, the Crosshair X870E HERO BTF is built for enthusiasts who demand the absolute best.
Specifications
| Category | Specification |
| Model | ROG CROSSHAIR X870E HERO BTF |
| Part Number | 90MB1MX0-M0EAY0 |
| CPU Support | AMD Socket AM5 – Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Memory | 4 × DIMM DDR5, up to 256GB, up to 8600+ MT/s (OC), ECC/Non-ECC |
| Memory Features | EXPOâ„¢, DIMM Fit/Pro, AEMP, NitroPath DRAM |
| Graphics Outputs | 1 × HDMI 2.1 (4K@60Hz) 2 × USB4 Type-C (DP1.4a Alt-Mode) |
| Expansion Slots | 1 × PCIe 5.0 x16 (x16 or x8/x4/x4) 1 × PCIe 4.0 x4 (chipset) |
| Storage | 5 × M.2 (PCIe 5.0/4.0 x4) depending on CPU 4 × SATA 6Gb/s |
| RAID Support | RAIDXpert2 (9000: 0/1/5/10, 8000: 0/1, 7000: 0/1/10) |
| Ethernet | Intel® 2.5GbE + Realtek 5GbE |
| Wireless | Wi-Fi 7 (802.11be), Dual-band 2.4/5/6GHz |
| Bluetooth | Bluetooth® 5.4 |
| Rear USB Ports | 2 × USB4 (40Gbps Type-C) 8 × USB 10Gbps (6 × Type-A + 2 × Type-C) |
| Front USB Ports | 2 × USB 20Gbps Type-C 4 × USB 5Gbps 4 × USB 2.0 |
| Audio | ROG SupremeFX 7.1 (ALC4082) + ESS ES9219 DAC |
| Audio Features | 120dB SNR, Gold jacks, Optical S/PDIF |

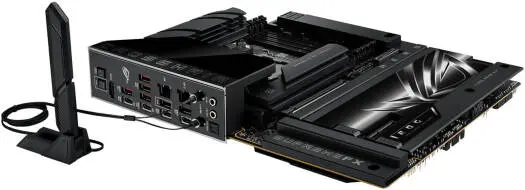

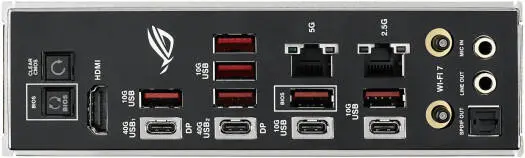

| Back Panel I/O | 2× USB4, 8× USB 10Gbps, HDMI, Wi-Fi antenna ports, 2× LAN, Audio jacks, S/PDIF, BIOS FlashBack, Clear CMOS |
| Internal I/O | 24-pin ATX, 2× 8-pin CPU, 12V-2×6, 5× M.2, 4× SATA, 6× Fan headers, 3× ARGB Gen2 |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, Q-Design, Q-Antenna, Q-LED, Q-Code, EZ DIY, Aura Sync |
| Software | Armoury Crate, Fan Xpert 4, GameFirst, TurboV Core, HWiNFO, AIDA64 (1yr), Adobe CC Trial |
| BIOS | 256Mb UEFI AMI BIOS, AI OC, EZ Flash 3, CrashFree BIOS 3 |
| Accessories | WiFi Q-Antenna, 4× SATA cables, ARGB extender, M.2 Q-Latch/Slide/Rubber, Q-Connector, Bottle opener, USB drive |
| Operating System | Windows® 11 |
| Form Factor | ATX – 30.5 × 24.4 cm |
