Product Description
ASUS ROG Crosshair X870E
The ASUS ROG Crosshair X870E HERO BTF represents the next generation of premium AM5 motherboards—built for enthusiasts, overclockers, and professional creators who demand cutting-edge performance and flawless stability. Powered by the advanced AMD X870E chipset, this flagship ROG board unleashes the full capabilities of Ryzen™ 9000, 8000, and 7000 Series CPUs.
Equipped with DDR5 support up to 8600+ MT/s, PCIe 5.0 expansion, and a massive storage array featuring five M.2 slots (PCIe 5.0/4.0), the HERO BTF ensures ultra-fast data throughput for gaming, content creation, and productivity workflows.
With dual high-speed Ethernet (Intel® 2.5GbE + Realtek 5GbE), next-generation Wi-Fi 7, and extensive USB options including USB4 Type-C, seamless connectivity is guaranteed across all modern peripherals and high-bandwidth devices.
Engineered using ASUS’s signature Back-To-the-Future (BTF) design, all major connectors are placed at the rear for an ultra-clean build, superior airflow, and outstanding cable management. Additionally, ROG-exclusive features—such as Q-Design, Extreme Engine Digi+, SupremeFX audio with ESS DAC, and comprehensive Aura Sync lighting—deliver a premium user experience tailored to high-end system builders.
The Crosshair X870E HERO BTF sets a new benchmark for elite-class AM5 motherboards.
Specifications
| Category | Specification |
| Model | ROG Crosshair X870E HERO BTF |
| Part Number | 90MB1MX0-M0EAY0 |
| CPU Support | AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series (AM5 Socket) |
| Chipset | AMD X870E |
| Memory | 4× DIMM DDR5, up to 256GB, up to 8600+ MT/s (OC) |
| Memory Features | ECC/Non-ECC, Dual-Channel, EXPOâ„¢, DIMM Fit/Pro, AEMP, NitroPath DRAM |
| Graphics Outputs | 1× HDMI 2.1 (4K@60Hz) 2× USB4 Type-C (DP 1.4a Alt-Mode, 4K@60Hz) |
| Expansion Slots | 1× PCIe 5.0 x16 (x16 or x8/x4/x4) 1× PCIe 4.0 x4 |
| Storage | 5× M.2 (PCIe 5.0/4.0 x4 depending on CPU) 4× SATA 6Gb/s |
| RAID | RAIDXpert2 – Ryzen 9000 (0/1/5/10), 8000 (0/1), 7000 (0/1/10) |
| Ethernet | 1× Intel® 2.5GbE + 1× Realtek 5GbE (LANGuard) |
| Wireless | Wi-Fi 7 (802.11be, MediaTek MT7927) |
| Bluetooth | Bluetooth® 5.4 |
| Rear USB Ports | 2× USB4 (40Gbps Type-C) 8× USB 10Gbps (6× Type-A + 2× Type-C) |
| Front USB Ports | 2× USB 20Gbps Type-C 4× USB 5Gbps 4× USB 2.0 |
| Audio | ROG SupremeFX 7.1 – ALC4082 ESS ES9219 DAC, 120dB SNR, Gold jacks, Optical S/PDIF |

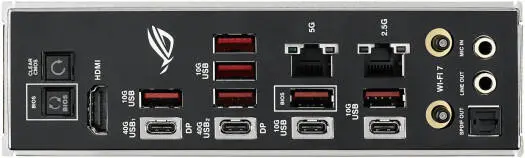

| Back Panel I/O | USB4 ×2, USB 10Gbps ×8, HDMI, Dual LAN, Wi-Fi module, S/PDIF, BIOS FlashBack, Clear CMOS |
| Internal I/O | 24-pin ATX, 2× 8-pin CPU, 12V-2x6, 5× M.2, 4× SATA, 6× Fan headers, 3× ARGB Gen2 |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, Q-Design, Q-Antenna, Q-Code, Q-LED, Aura Sync |
| Software | Armoury Crate, Fan Xpert 4, ROG CPU-Z, GameFirst, TurboV, HWiNFO, AIDA64 (1yr), Adobe CC Trial |
| BIOS | 256Mb UEFI AMI BIOS, AI OC, EZ Flash 3, CrashFree BIOS 3 |
| Accessories | Wi-Fi antenna, 4× SATA cables, ARGB extension, M.2 Q-Latch/Slide/Rubber kits, Q-Connector, USB drive, ROG sticker, Bottle opener |
| OS Support | Windows® 11 |
| Form Factor | ATX – 30.5 × 24.4 cm |
