Product Description

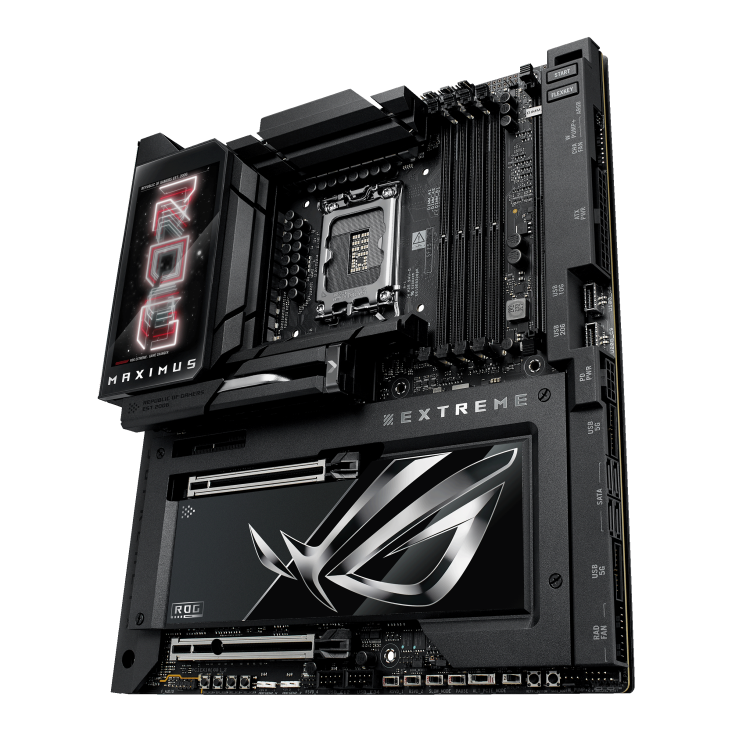

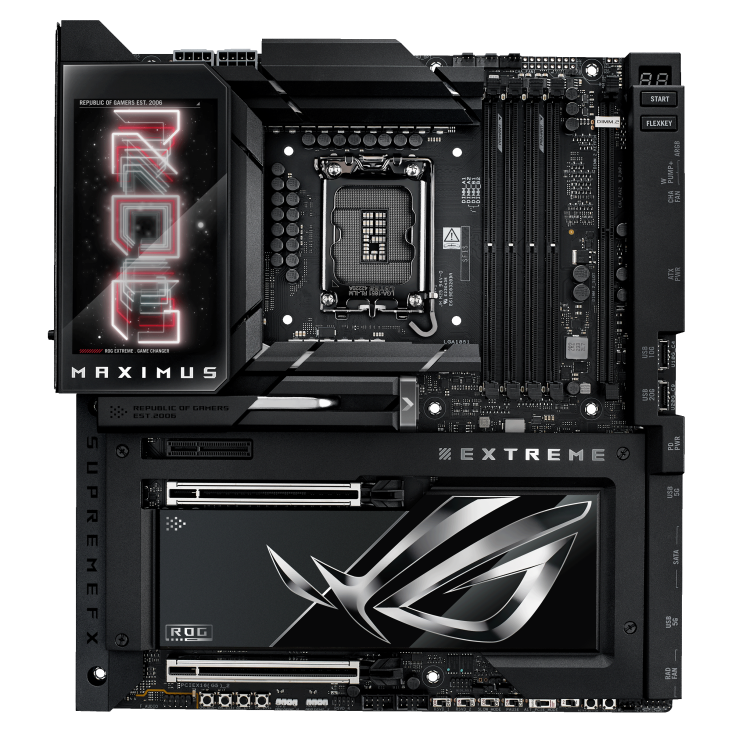

ROG Maximus Z890 Extreme
Intel® Z890 LGA 1851 E-ATX motherboard, Advanced AI PC-ready, 24+2+1+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, 3D VC M.2 Heatsink, three PCIe® 5.0 M.2 slots and one PCIe 4.0 slot onboard with ROG M.2 PowerBoost, two PCIe 4.0 M.2 slots on ROG Q-DIMM.2 card, two PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, PCIe Slot Q-Release Slim, two Thunderbolt™ 5 ports, USB 20Gbps Type-C® front-panel connector, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Full Color 5” LCD Display
Specifications
| CPU | - Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and 3.0 (CPU type dependent) - CPU support list |
| Chipset | Intel® Z890 Chipset |
| Memory | - 4 x DIMM slots, max. 192GB, DDR5 - Supports up to 9200+MT/s (OC), Non-ECC, Unbuffered - Dual Channel Architecture - Supports XMP, AEMP III, DIMM Flex, NitroPath DRAM Technology - Memory support |
| Graphics | - 1 x HDMI port (max. 8K@60Hz) - 2 x Thunderbolt™ 5 ports (supports multiple monitors, up to 8K@60Hz) - Graphics specs may vary by CPU type |
| Expansion Slots | - 2 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x4 slot - PCIe bifurcation table |
| Storage | - Up to 6 x M.2 slots, 4 x SATA 6Gb/s ports - RAID support for various configurations |
| Ethernet | - 1 x Intel® 2.5Gb Ethernet - 1 x Marvell® AQtion 10Gb Ethernet - ASUS LANGuard |
| Wireless & Bluetooth | - Intel® Wi-Fi 7 (802.11be), up to 5.8Gbps - Bluetooth® v5.4 |
| USB Ports | Rear: 10 ports (2 x Thunderbolt™ 5, 1 x USB 20Gbps, 7 x USB 10Gbps) Front: 10 ports (1 x USB 20Gbps, 1 x USB 10Gbps, 2 x USB 5Gbps, 2 x USB 2.0 headers) |
| Audio | - ROG SupremeFX 7.1 Surround Sound - High definition audio CODEC ALC4082 - ESS® ES9219 QUAD DAC |
| Back Panel I/O Ports | - 2 x Thunderbolt™ 5 USB Type-C® - 1 x USB 20Gbps port - 7 x USB 10Gbps ports - 1 x HDMI port - 1 x Intel® 2.5Gb Ethernet port - 1 x Marvell® AQtion 10Gb Ethernet port - 2 x LED-illuminated audio jacks |
| Internal I/O Connectors | - Fan headers, power connectors, storage connectors (4 x M.2 slots, 4 x SATA 6Gb/s ports) |
| Miscellaneous | - 1 x 6-pin ARGB Gen 2 header, various buttons and headers for additional functionalities |
| Special Features | - Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Dual BIOS, Full Color LCD Display, ROG M.2 PowerBoost |
| Software Features | - ROG Exclusive Software (CPU-Z, Dolby Atmos, Internet Security) - ASUS Exclusive Software (Armoury Crate, Fan Xpert 4, etc.) |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |
| Accessories | Includes various cables, connectors, thermal pads, and installation media (USB drive with utilities and drivers) |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | E-ATX Form Factor (12" x 10.9" / 30.5 cm x 27.7 cm) |
