Product Description

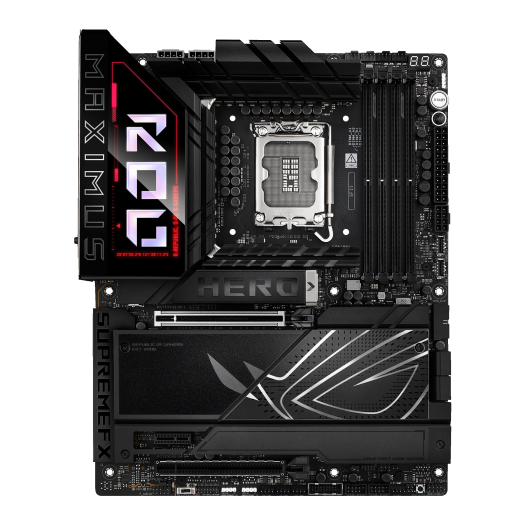

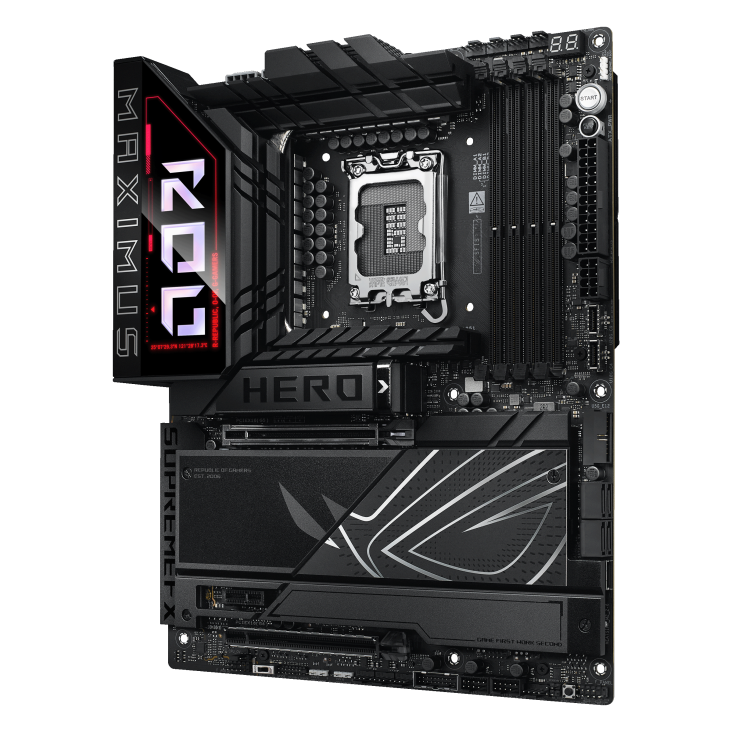

ROG MAXIMUS Z890 HERO
Â
Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, SlimSAS connector, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II
Â
Â
Specifications
Â
| CPU | - Support Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** - Refer to ASUS support for CPU support list. |
| Chipset | Intel® Z890 Chipset |
| Memory | - 4 x DIMM slots, max. 192GB, DDR5 - Support up to 8800+MT/s (OC), Non-ECC, Un-buffered - Dual channel memory architecture - Supports Intel® Extreme Memory Profile (XMP) - DIMM Flex, NitroPath DRAM Technology, DIMM FIT, ASUS Enhanced Memory Profile III (AEMP III) - Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | - 1 x HDMI™ port** - 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** - Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. - In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2. |
| Expansion Slots | - 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** - 1 x PCIe 4.0 x16 slot (supports x4 mode) - 1 x PCIe 4.0 x1 slot - Check the PCIe bifurcation table for compatibility. |
| Storage | - Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* - M.2 slots support PCIe 5.0 and PCIe 4.0 modes - SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. |
| Ethernet | - 1 x Intel® 2.5Gb Ethernet - 1 x Realtek 5Gb Ethernet - ASUS LANGuard |
| Wireless & Bluetooth | - Wi-Fi 7 (802.11be), 2x2 configuration - Supports 2.4/5/6GHz bands and up to 5.8Gbps transfer rate. - Bluetooth® v5.4*** |
| USB | Rear USB (Total 11 ports) - 2 x Thunderbolt™ 4 ports (USB Type-C®) - 5 x USB 10Gbps ports (4 x Type-A + 1 x Type-C) - 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) - 1 x USB 20Gbps connector (supports Type-C®) - 1 x USB 10Gbps connector (supports Type-C®) - 2 x USB 5Gbps headers (4 additional ports) - 2 x USB 2.0 headers (4 additional ports) |
| Audio | - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - ESS® ES9219 QUAD DAC, supports high-quality audio features |

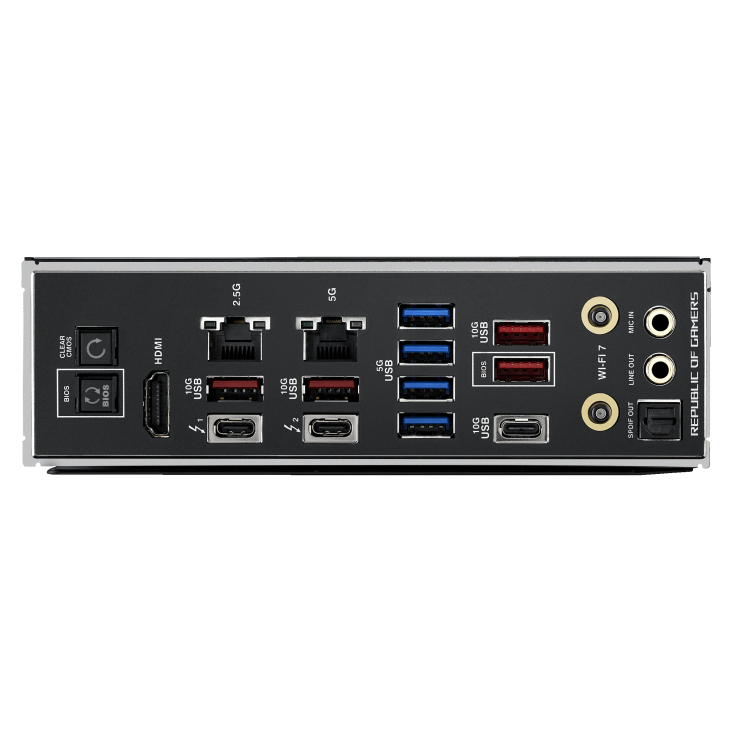

| Back Panel I/O Ports | - 2 x Thunderbolt™ 4 USB Type-C® ports - 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) - 4 x USB 5Gbps ports (4 x Type-A) - 1 x HDMI™ port - 1 x Intel® 2.5Gb Ethernet port - 1 x Realtek 5Gb Ethernet port - 2 x Gold-plated audio jacks - 1 x Optical S/PDIF out port - 1 x BIOS FlashBack™ button - 1 x Clear CMOS button |
| Internal I/O Connectors | - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 4 x 4-pin Chassis Fan headers - 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors - 6 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - 1 x SlimSAS connector |
| Miscellaneous | - 3 x Addressable Gen 2 headers - 1 x FlexKey button - 1 x Front Panel Audio header (F_AUDIO) |
| Special Features | - Extreme OC Kit with FlexKey, ReTry, and Start buttons - ASUS Q-Design features for M.2 and PCIe management - ASUS Thermal Solutions including heatsinks and backplates |
| Software Features | - ROG Exclusive Software including ROG CPU-Z and Dolby Atmos - ASUS Exclusive Software such as Armoury Crate, Xpert 4, and GameFirst |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |

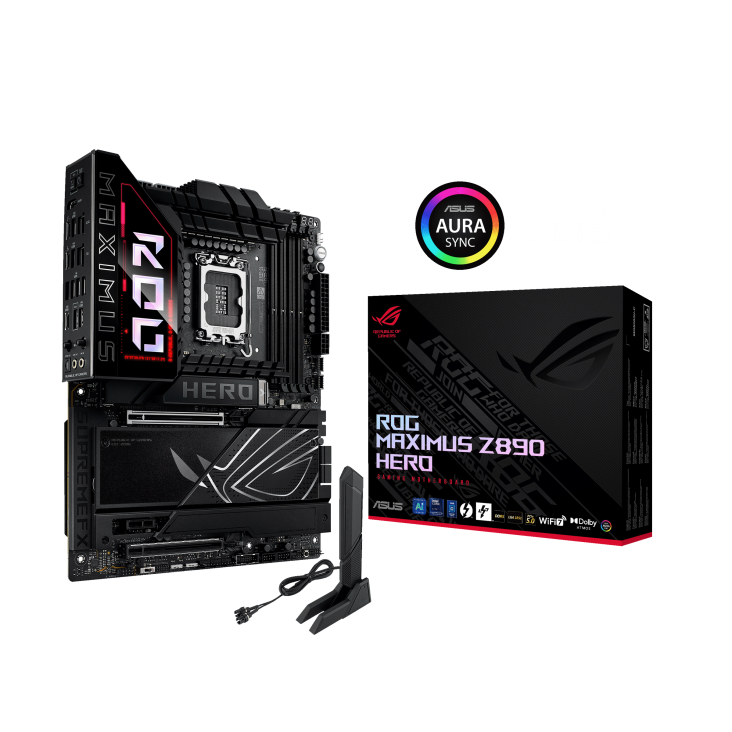

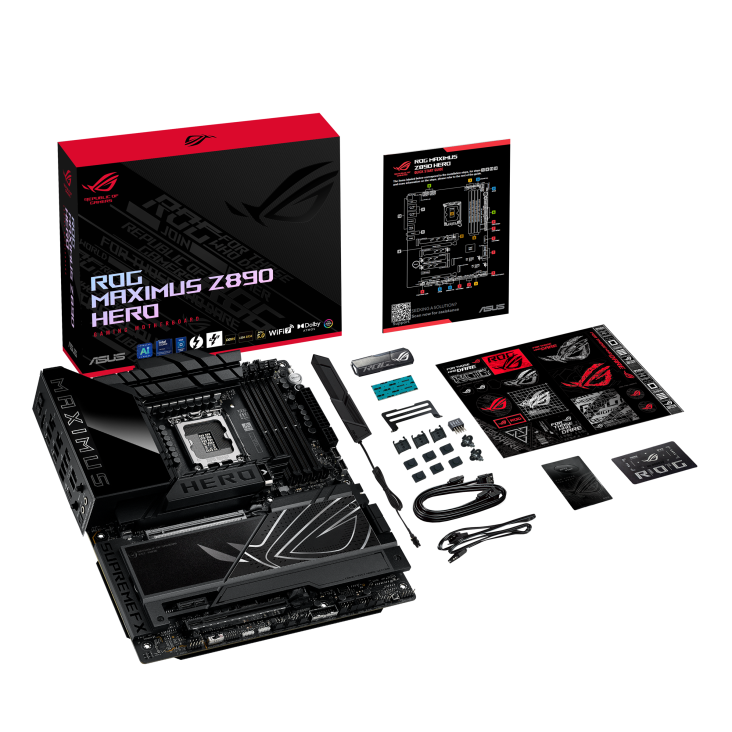

| Accessories | - 1 x ARGB RGB extension cable - 4 x SATA 6Gb/s cables - 1 x ASUS WiFi Q-Antenna - Installation media with utilities and drivers |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS ROG Maximus Z890 Hero LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16, 6x M.2 slots | 90MB1ID0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS ROG Maximus Z890 Hero LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16, 6x M.2 slots | 90MB1ID0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
