ROG STRIX 1000P GAMING (90YE00W1-B0NA00)
The ROG STRIX 1000P GAMING is a 1000 W ATX 3.1 power supply with 80 PLUS Platinum efficiency, full modular design, advanced protections, and GPU-First voltage regulation—ideal for gaming builds.
- Total Power: 1000 W
- Efficiency: 80 PLUS Platinum
- Form Factor / Standard: ATX • ATX 3.1 support

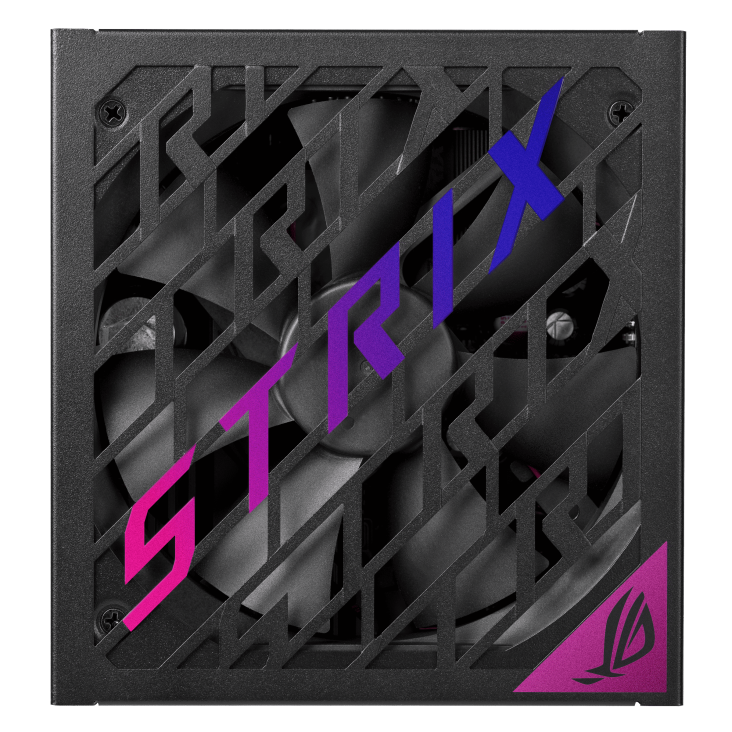

- Cooling: 135 mm Axial-tech fan • 0 dB mode
- Protections: OPP • OVP • UVP • OCP • SCP • OTP
- Special Features: Fully modular cables • Premium components • GPU-First voltage stabilizer

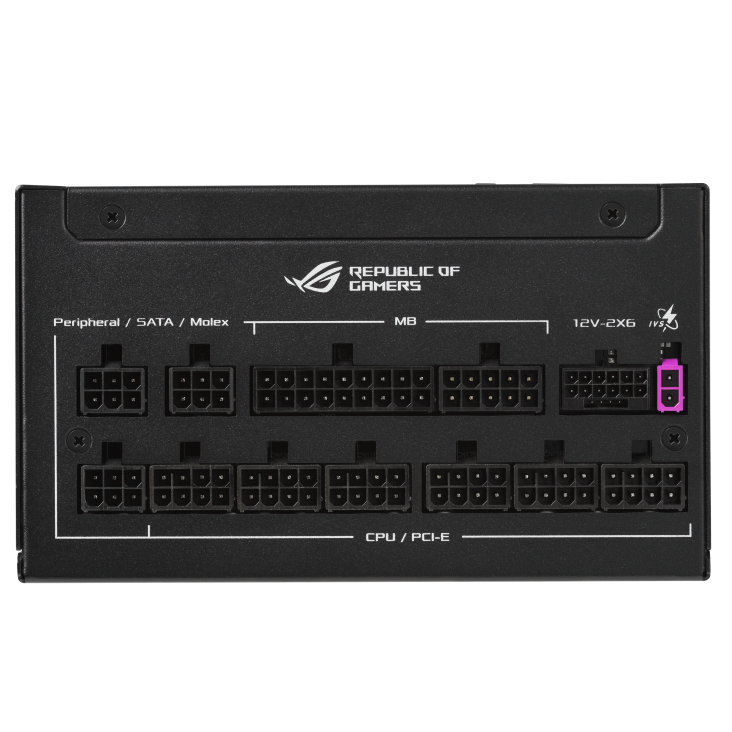

- Connectors:
- 1 × 24-pin ATX
- 2 × 4+4-pin EPS (CPU)
- 1 × 16-pin PCIe (for PCIe Gen-5 cards)
- 3 × 6+2-pin PCIe
- 6 × SATA
- 3 × Peripheral / Molex
- Dimensions (L × W × H): 160 × 150 × 86 mm
- Weight: ~2.0 kg
- MTBF: >120,000 hours @ 25 °C
- AC Input: 100–240 Vac
- DC Output (Max Load): +3.3 V: 25 A • +5 V: 25 A • +12 V: 83.3 A (~1000 W) • −12 V: 0.3 A • +5Vsb: 3 A
- Combined Load Limit: +3.3 V + +5 V = 130 W
