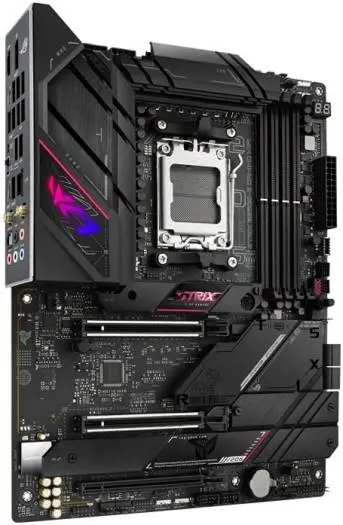

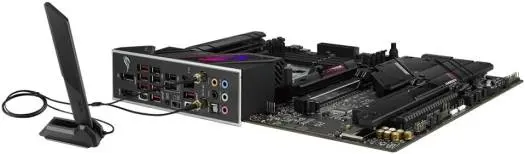

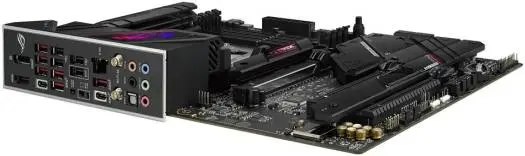

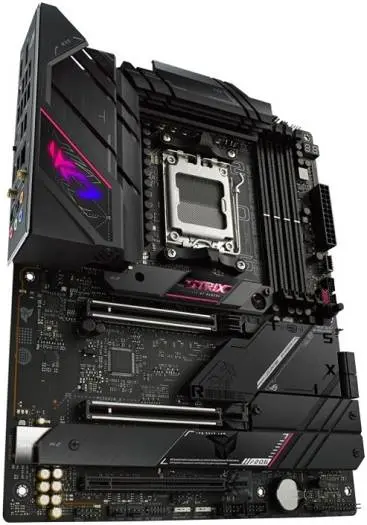

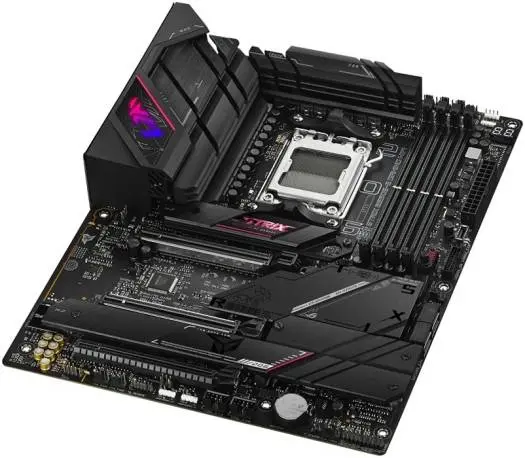

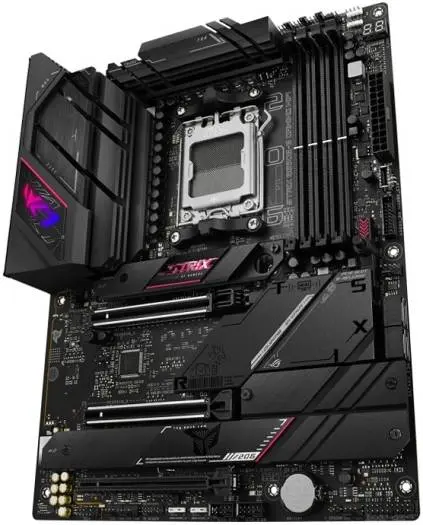

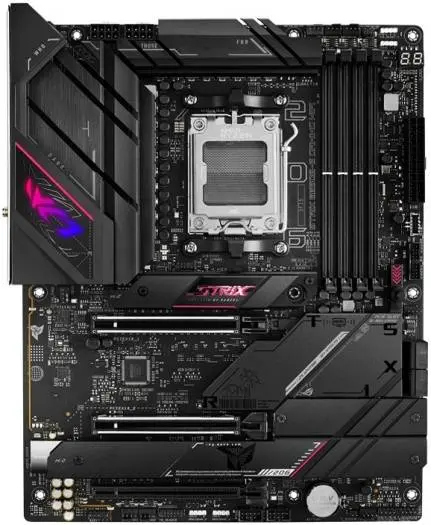

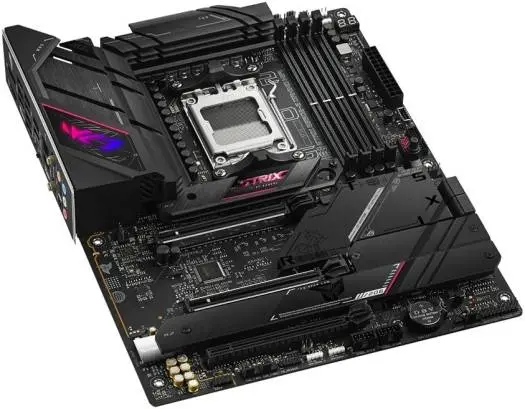

ASUS ROG Strix B650E-E Gaming WiFi – Engineered to Dominate Every Game
Product Description
The ASUS ROG Strix B650E-E Gaming WiFi delivers the perfect blend of cutting-edge performance, customization, and connectivity for serious gamers and creators.
Built around the powerful AMD B650 chipset and AM5 socket, it fully supports Ryzenâ„¢ 7000, 8000, and 9000 Series processors, ensuring next-generation performance with advanced tuning options and lightning-fast responsiveness.
With PCIe® 5.0 graphics slots, DDR5 memory up to 128 GB, and quad M.2 PCIe drives, the Strix B650E-E is optimized for heavy multitasking, high-speed storage, and smooth gameplay.
Connectivity shines with Wi-Fi 6E (6 GHz band), Intel® 2.5 Gb Ethernet, and Bluetooth® 5.2, giving you the stability and flexibility to dominate online.
The board’s signature ROG design combines bold aesthetics, RGB Aura Sync lighting, and advanced cooling architecture — built to perform, built to impress.
Â
Â
Specifications
| Category | Details |
| Model | ASUS ROG Strix B650E-E Gaming WiFi |
| Form Factor | ATX |
| Chipset | AMD B650 |
| CPU Socket | AMD AM5 |
| CPU Support | Ryzenâ„¢ 7000 / 8000 / 9000 Series |
| Memory Support | DDR5 4800 – 6400 MHz (OC), Dual Channel, Non-ECC / ECC Unbuffered |
| Memory Slots | 4 × 288-Pin DIMM |
| Max Memory Capacity | 128 GB |
| Storage Support | 4 × SATA III 6 Gb/s ports • 4 × M.2 (2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4) |
| RAID Support | RAID 0 / 1 / 10 (M.2) |
| Expansion Slots | 2 × PCIe 5.0 x16 • 1 × PCIe 4.0 x16 (x4 mode) |
| Graphics Outputs | 1 × HDMI • 1 × DisplayPort |
| Ethernet | 1 × Intel® 2.5 Gb LAN |
| Wireless & Bluetooth | Wi-Fi 6E (802.11 ax, MU-MIMO) • Bluetooth 5.2 |

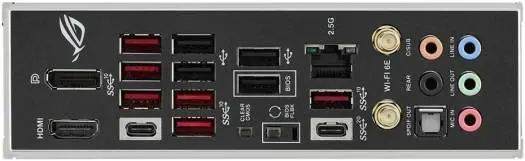

| Rear USB Ports | 1 × USB-C (USB 3.2 Gen 2×2) • 1 × USB-C (USB 3.2 Gen 2) • 6 × USB-A (USB 3.2 Gen 2) • 4 × USB-A (USB 2.0) |
| Front USB Headers | 1 × USB 3.2 Gen 2 (Type-C) • 1 × USB 3.2 Gen 1 (2 Ports) • 2 × USB 2.0 (4 Ports) |
| Audio Codec | ROG SupremeFX ALC4080 7.1 Surround Sound with Savitech SV3H712 DAC |
| Audio Ports | 5 × 3.5 mm Jacks • 1 × Optical S/PDIF |
| Cooling Support | 2 × CPU Fan Headers • 5 × System Fan • 1 × Pump Header • 1 × Thermal Sensor |
| Power Connectors | 1 × 24-Pin ATX • 2 × 8-Pin CPU Power |
| Lighting & Customization | 4 × RGB Headers • AURA Sync Support |
| Special Features | BIOS FlashBack • Clear CMOS Button • Q-Design • CPU Overclock Diagnostics • Chassis Intrusion Sensor • Thunderbolt Header |
| BIOS | 256 Mb UEFI AMI BIOS (EZ Flash, CrashFree BIOS 3, MyHotkey) |
| Supported OS | Windows 10 / 11 |
| Audio Technology | SupremeFX 7.1 Channel Audio with Integrated Amplifier |
| Connectivity | Wi-Fi 6E 6 GHz • Bluetooth 5.2 • Intel 2.5 Gb LAN |
| Included Accessories | Wi-Fi Antenna • SATA Cables • Q-Connector • Documentation |
| Warranty | 3 Years Manufacturer Warranty |
