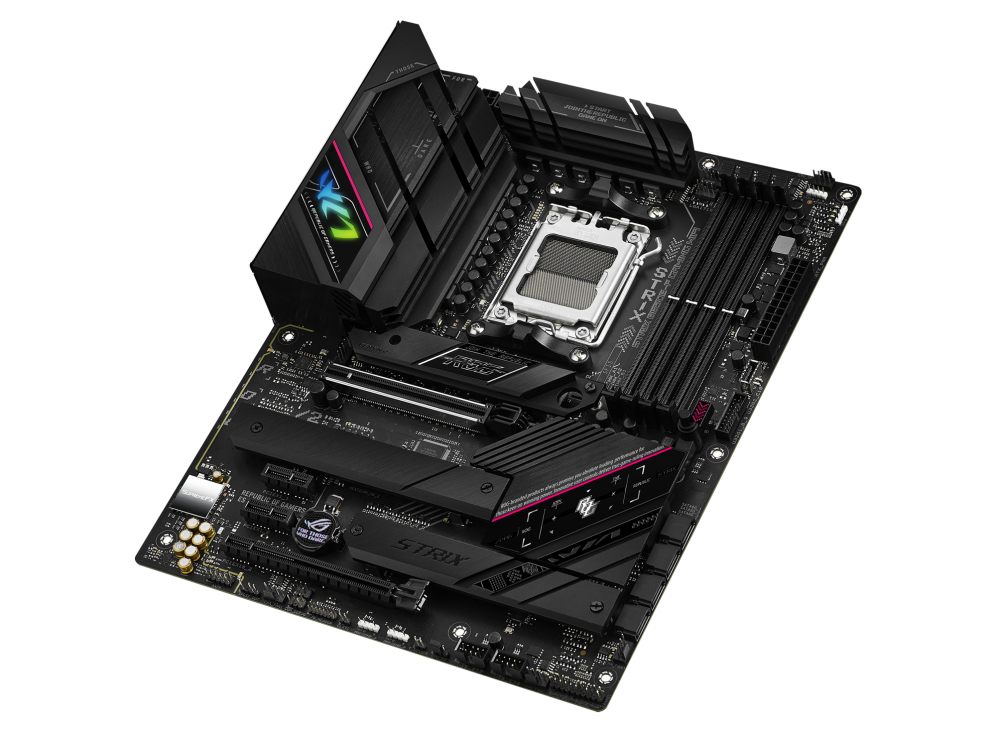

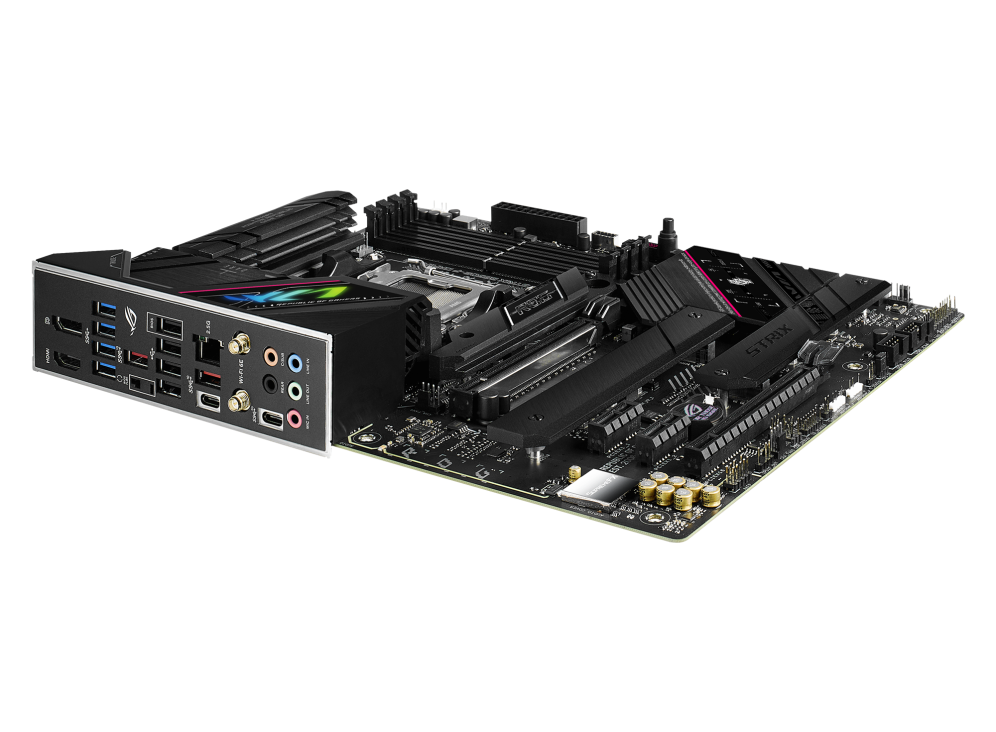

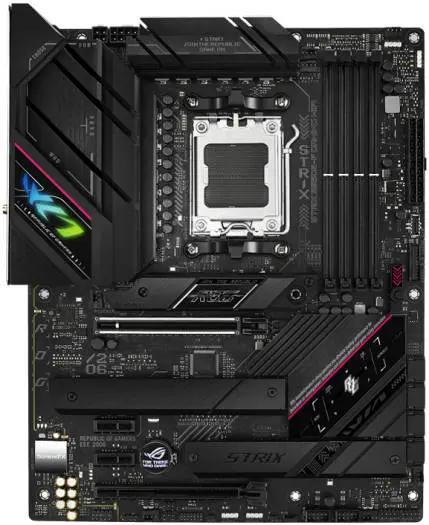

ROG STRIX B650E-F GAMING WIFI
This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
Â
- AMD Socket AM5(LGA 1718):Â Ready for AMD Ryzen 7000 Series desktop processors.
- Robust Power Solution:Â 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.
- Optimized Thermal Design:Â Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.
- Next-Gen M.2 Support:Â One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance.
- Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C and ten additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI 2.1, DisplayPort 1.4, and one PCIe 5.0 x16 SafeSlot.
- High-Performance Networking:Â On-board WiFi 6E (802.11ax), Bluetooth 5.2, and Intel 2.5G Ethernet with ASUS LANGuard.
- Intelligent Control:Â ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking.
- Unmatched Personalization:Â ASUS-exclusive Aura Sync RGB lighting, including one RGB header.
Â
Â
Specification
CPU
| Chipset | AMD B650 |
| CPU Socket | AM5 |

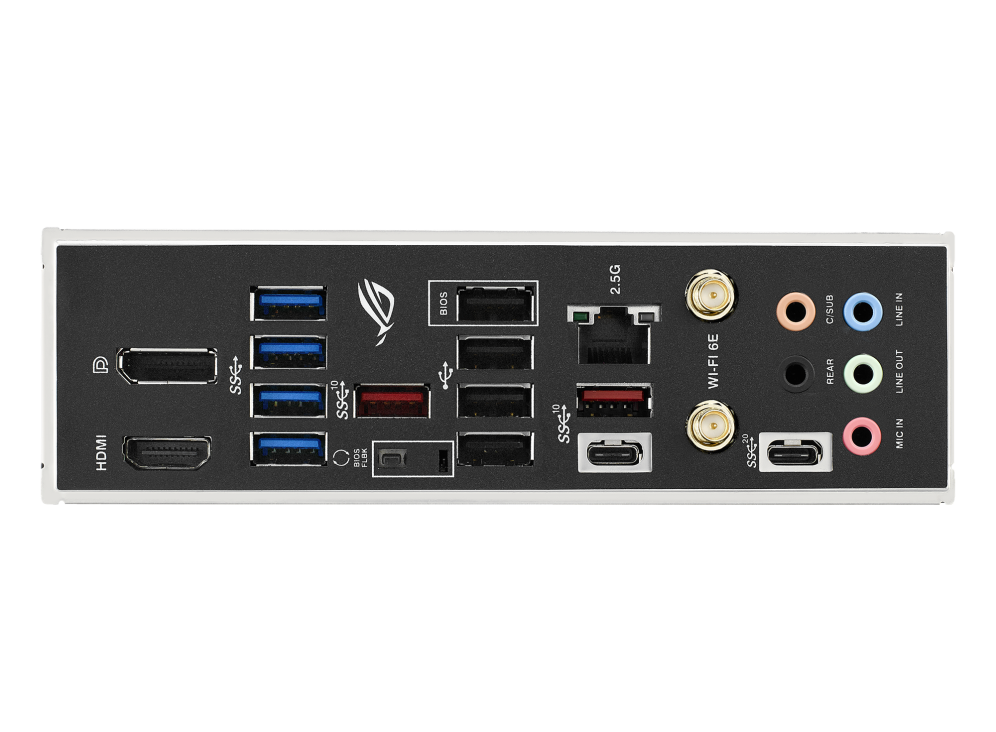

Back Panel I/O
| USB | 1 x USB-C (USB 3.2 Gen 2x2) 2 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1 x HDMI |
| Audio | 5 x 1/8" / 3.5 mm 1 x S/PDIF |
| Ethernet / Controller | 1 x Intel 2.5Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 5.0 x4) 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 10 (SATA) RAID 0, 1, 10 (M.2) |
Internal I/O
| Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x1 |
| USB | 1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 2 x 4-Pin CPU 4 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU |
| Security | Chassis Intrusion |
| LED Header | 4 x RGB |
| Audio | 1 x S/PDIF |
| Diagnostics | Clear CMOS, Voltage Regulation |
| Add-On | 1 x Thunderbolt Header |
BIOS
| ROM | 256 Mb |
Front Panel I/O
| I/O Connection Headers | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
Audio
| Audio Codec | SupremeFX ALC4080 (7.1-Channel) |
Wireless
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
Software
| OS Compatibility | Windows 11 As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS ROG STRIX B650E-F GAMING WIFI ATX Motherboard, AM5 Socket, AMD B650 Chipset, Intel 2.5Gb Ethernet, 4 x 2-Channel DDR5 128GB Max, 1xPCIe 5.0x16, 3xM.2 PCIe, USB 2.0/3.2 1xHDMI/DP | 90MB1BQ0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS ROG STRIX B650E-F GAMING WIFI ATX Motherboard, AM5 Socket, AMD B650 Chipset, Intel 2.5Gb Ethernet, 4 x 2-Channel DDR5 128GB Max, 1xPCIe 5.0x16, 3xM.2 PCIe, USB 2.0/3.2 1xHDMI/DP | 90MB1BQ0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Model
ROG STRIX B650E-F GAMING WIFI
Shipping Dimensions
27.50 cm x 34.00 cm x 7.01 cm
Chipset
AMD B650
Maximum Memory
192 GB
Memory Slots
4
Multi-GPU Support
--
PCI Express x16
1
Shipping Dimensions
27.50 cm x 34.00 cm x 7.01 cm
Shipping Weight
2.05 Kg
Form Factor
ATX
M.2 Slots
3
Memory Speed
8000
Memory Type
DDR5
Socket
AM5
