Product Description

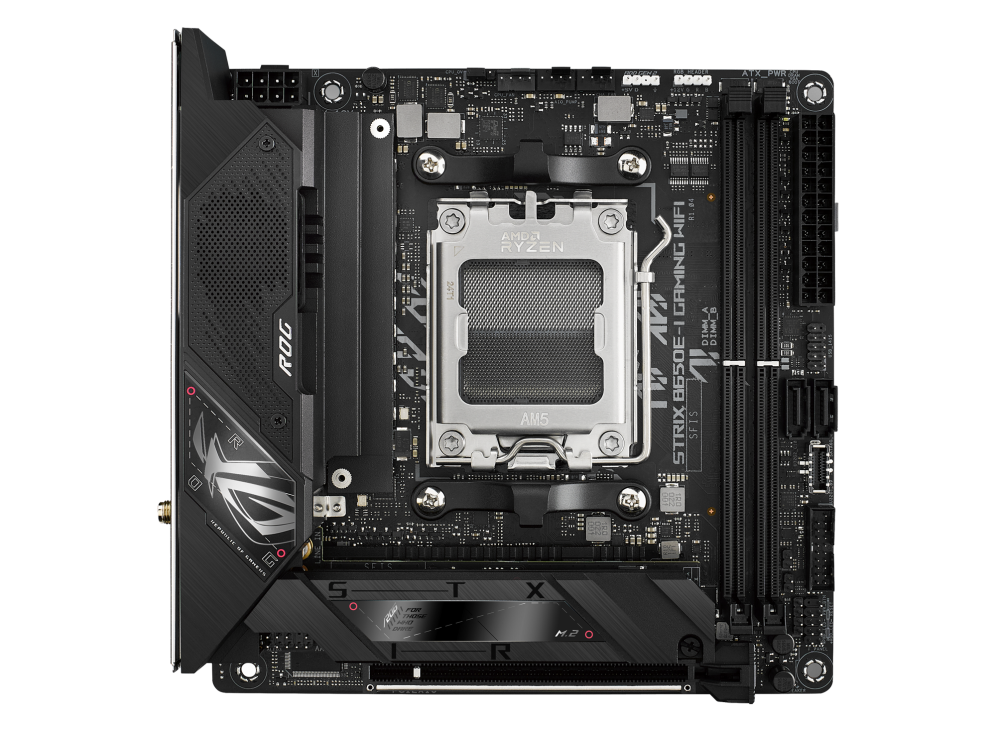

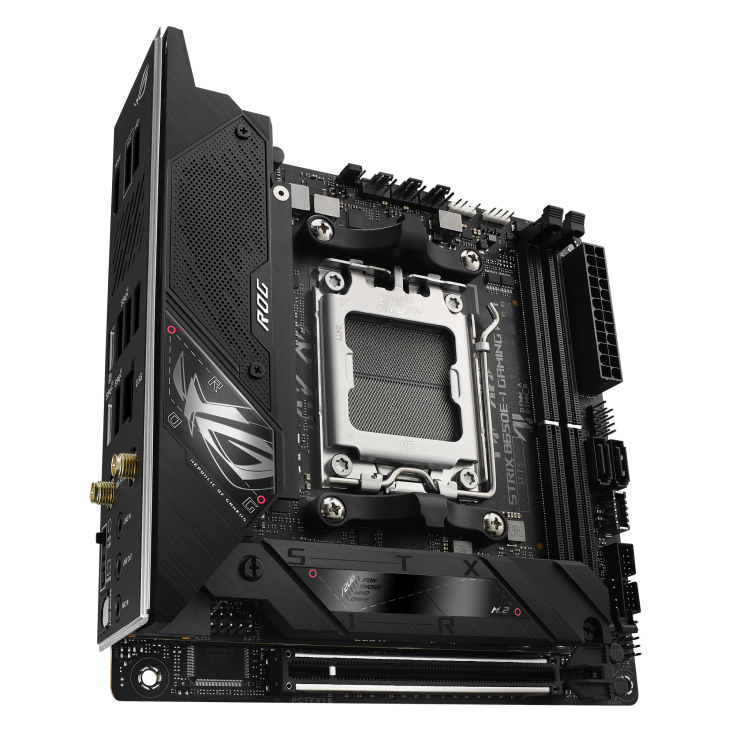

ROG STRIX B650E-I GAMING WIFI
ASUS ROG STRIX B650E-I GAMING WIFI 6E is the perfect backbone for gamers who pursue ultimate performance out of AMD Ryzen 7000 CPU with mini-ITX PC build. With boosted power delivery and innovative cooling utilizing a skived-fin design, ROG STRIX X670E-I GAMING WIFI 6E is the perfect compact platform for your next gaming battle station.
Â
- AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors
- Robust Power Solution: 10+2 power stages with an 8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Thick heatsinks bolster a quiet cooling system that is bonded to the power stages with high conductivity thermal pads
- Next-Gen M.2 Support: PCIe 5.0 M.2 slot cooled by a large heatsink to maximize performance and an additional PCIe 4.0 M.2 slot for more storage
- Abundant Connectivity: USB 3.2 Gen 2x2 Type-C port and seven additional USB ports, PCIe 5.0 x16 SafeSlot, and HDMI 2.1
- High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth 5.2, and Intel 2.5G Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive, AI Networking, and 2-Way AI Noise Cancelation to simplify setup and improve performance
- Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
Â
Â
Specifications
CPU
AMD Socket AM5 for AMD Ryzenâ„¢ 7000 Series Desktop Processors
Chipset
AMD B650
Memory
2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPOâ„¢)
OptiMem II
*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
 Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI® port Â
1 x USB3.2 Gen2 port supports USB Type-C® display outputs
 Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@60Hz as specified in display outputs
Supports 4K@60Hz as specified in HDMI 2.1. Â
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzenâ„¢ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
 Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Â
Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzenâ„¢ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 Â (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports  PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.2
WiFi 6E 6GHz regulatory may vary between countries.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Â Savitech SV3H712 AMP Â
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
3 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBackâ„¢ Â button
1 x FlexKey button
The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers supports additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x 12-1 pin Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Speaker header
1 x Thermal Sensor header
Â
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS ROG STRIX B650E-I GAMING WIFI AM5 Mini-ITX Motherboard, AMD B650 Chipset, 2 CH 2x DDR5 DIMM, 64GB Max Memory, Wi-Fi 6E/2.5Gb Eth/ BT v5.2, 1x PCIe 5.0 x16, 1xHDMI, 1xUSB3.2 | 90MB1BI0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS ROG STRIX B650E-I GAMING WIFI AM5 Mini-ITX Motherboard, AMD B650 Chipset, 2 CH 2x DDR5 DIMM, 64GB Max Memory, Wi-Fi 6E/2.5Gb Eth/ BT v5.2, 1x PCIe 5.0 x16, 1xHDMI, 1xUSB3.2 | 90MB1BI0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Shipping Weight
1.30 Kg
Chipset
AMD B650
Form Factor
Mini ITX
Memory Slots
2
Memory Speed
--
PCI Express x16
1
Model
ROG STRIX B650E-I GAMING WIFI
Shipping Dimensions
9.50 cm x 23.00 cm x 18.51 cm
M.2 Slots
2
Maximum Memory
64 GB
Memory Type
DDR5
Multi-GPU Support
--
Socket
AM5
