Product Description

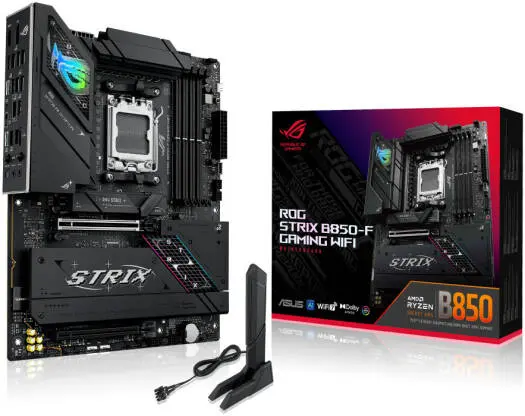

ASUS ROG Strix B850-F Gaming WiFi
The ASUS ROG Strix B850-F Gaming WiFi is engineered for next-generation AM5 gaming rigs, offering a perfect balance of performance, durability, and advanced connectivity. Powered by the AMD B850 chipset, this ATX motherboard supports Ryzenâ„¢ 9000, 8000, and 7000 Series processors, delivering exceptional multitasking and gaming capabilities.
With DDR5 support up to 8000+ MT/s, PCIe 5.0 x16 SafeSlot, and four high-speed M.2 slots, the board ensures lightning-fast storage, superior bandwidth, and ultra-responsive performance. Integrated Wi-Fi 7 and Bluetooth® 5.4 provide cutting-edge wireless connectivity, while Intel® 2.5Gb Ethernet ensures reliable, low-latency networking for competitive gaming.
The Strix B850-F also features high-fidelity ROG SupremeFX audio with Dolby Atmos support, immersive for gaming and content creation. Its signature ROG aesthetic, pre-mounted I/O shield, and DIY-friendly features like Q-Release Slim, Q-DIMM, and M.2 Q-Latch make installation extremely convenient.
Designed for gamers, creators, and PC enthusiasts, the ROG Strix B850-F Gaming WiFi is a performance-focused AM5 motherboard ready for modern high-end builds.
Â
Specifications
| Category | Specification |
| Model | ROG STRIX B850-F GAMING WIFI |
| Part Number | 90MB1J70-M0EAY0 |
| CPU Support | AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series (AM5) |
| Chipset | AMD B850 |
| Memory | 4× DDR5 DIMM, up to 192GB, up to 8000+ MT/s (OC), ECC/Non-ECC, Dual-Channel |
| Graphics Outputs | 1× DisplayPort (8K@30Hz) 1× HDMI™ (4K@60Hz) Depends on CPU |
| Expansion Slots | 1× PCIe 5.0 x16 SafeSlot (Q-Release Slim) 1× PCIe 4.0 x16 (x4 mode) |
| Storage | 4× M.2 Slots 2× SATA 6Gb/s AMD RAIDXpert2 (0/1/5/10 depending on CPU) |
| Ethernet | Intel® 2.5Gb LAN + ASUS LANGuard |
| Wireless Connectivity | Wi-Fi 7 (2.4/5/6GHz) |
| Bluetooth® | Bluetooth® 5.4 |
| Rear USB Ports | 12 Ports Total: • 1× USB 20Gbps Type-C • 3× USB 10Gbps • 4× USB 5Gbps • 4× USB 2.0 |
| Front USB Ports | 7 Ports Total: • 1× USB 10Gbps Type-C • 1× USB 5Gbps header (2 ports) • 2× USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 ALC4080 Codec Dolby Atmos 32-bit/384kHz |
| Back Panel I/O | DisplayPort, HDMI™, Wi-Fi 7 module, Intel 2.5GbE, Optical S/PDIF, 2× audio jacks |
| Internal I/O | 4× M.2, 2× SATA, fan headers, USB headers, USB4/Thunderbolt header |
| Special Features | Q-DIMM, Q-Release Slim, M.2 Q-Latch, Pre-mounted I/O Shield, Aura Sync, Extreme Engine Digi+ |
| Software | Armoury Crate, Fan Xpert 4, ROG CPU-Z, Adobe CC Trial, Norton 360 Trial |
| BIOS | 256Mb UEFI AMI BIOS (EZ DIY tools) |
| Accessories | WiFi Q-Antenna, 2× SATA cables, ROG keychain, M.2 Q-Latch kit, ROG stickers |
| OS Compatibility | Windows 11 |
| Form Factor | ATX – 12" × 9.6" |
