Product Description
ROG Strix B860-F Gaming WiFi
Â
Specifications
| Model | ROG STRIX B860-F GAMING WIFI |
| CPU | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Intel® Turbo Boost Tech 2.0 & 3.0 |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, up to 9066MT/s (OC), Non-ECC, Dual-channel, AEMP III support |
| Graphics | 1 x DisplayPort (8K@60Hz), 1 x HDMI (8K@60Hz), 1 x Thunderbolt™ 4 (USB Type-C®, 8K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s ports, RAID 0/1/5/10 support |
| Ethernet | Intel® 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2.9Gbps), Bluetooth® v5.4 |
| Rear USB | 1 x Thunderbolt™ 4 (Type-C®), 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 6 x USB 5Gbps (Type-A) |
| Front USB | 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 2 x USB 2.0 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound, ALC4080, Savitech SV3H712 AMP, S/PDIF out, Premium capacitors |
| Cooling & Fans | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan headers |
| Power Connectors | 1 x 24-pin Main Power, 2 x 8-pin +12V CPU |
| Special Features | M.2 Q-Latch/Release/Slide, PCIe Slot Q-Release Slim, VRM heatsinks, Aura Sync, BIOS FlashBackâ„¢ |
| Software Features | ROG CPU-Z, Armoury Crate, Dolby Atmos, Fan Xpert 4, GameFirst, Norton 360 (Trial), WinRAR (Trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, EZ DIY features |

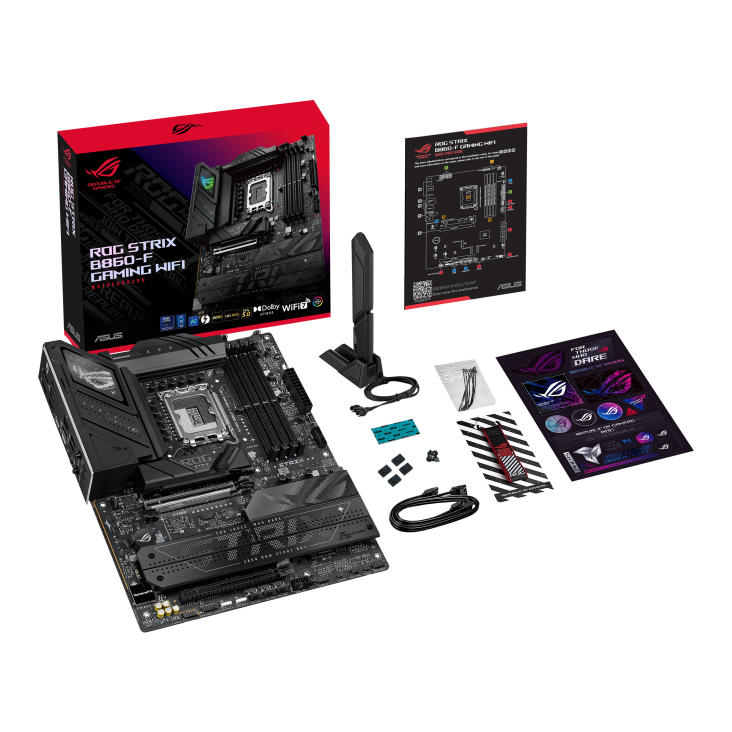

| Accessories | 2 x SATA cables, ASUS WiFi Q-Antenna, M.2 Q-Latch/Slide package, ROG stickers, keychain |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS ROG Strix B860-F Gaming WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 SafeSlot, 4x M.2 Slots, WiFi & BT | 90MB1JG0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Shipping Weight
0.80 Kg
Shipping Dimensions
27.00 cm x 27.00 cm x 5.50 cm
M.2 Slots
4
Maximum Memory
256 GB
Memory Type
DDR5
Multi-GPU Support
--
Model
ROG Strix B860-F Gaming WiFi
Chipset
Intel B860
Form Factor
ATX
Memory Slots
4
Memory Speed
--
PCI Express x16
2
Socket
LGA 1851
