Product Description

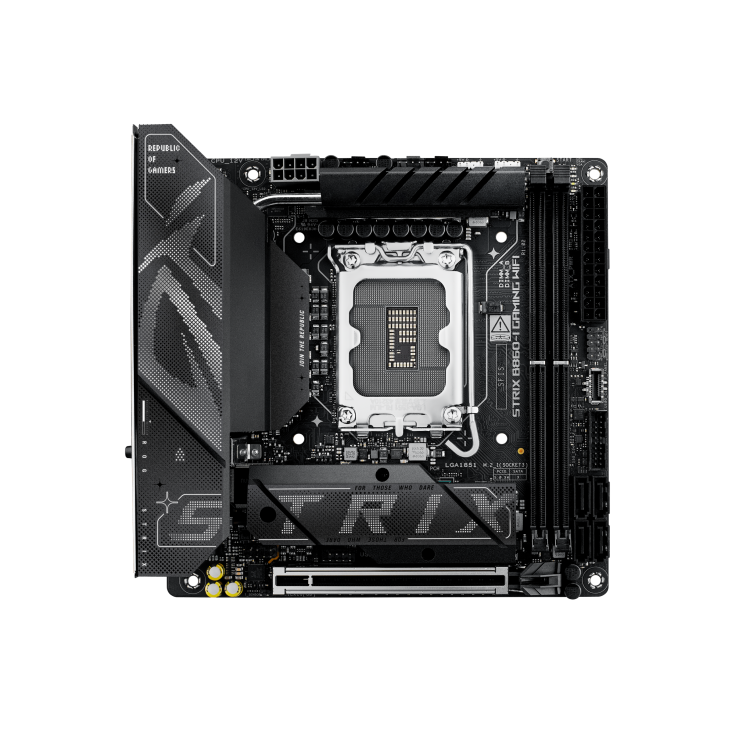

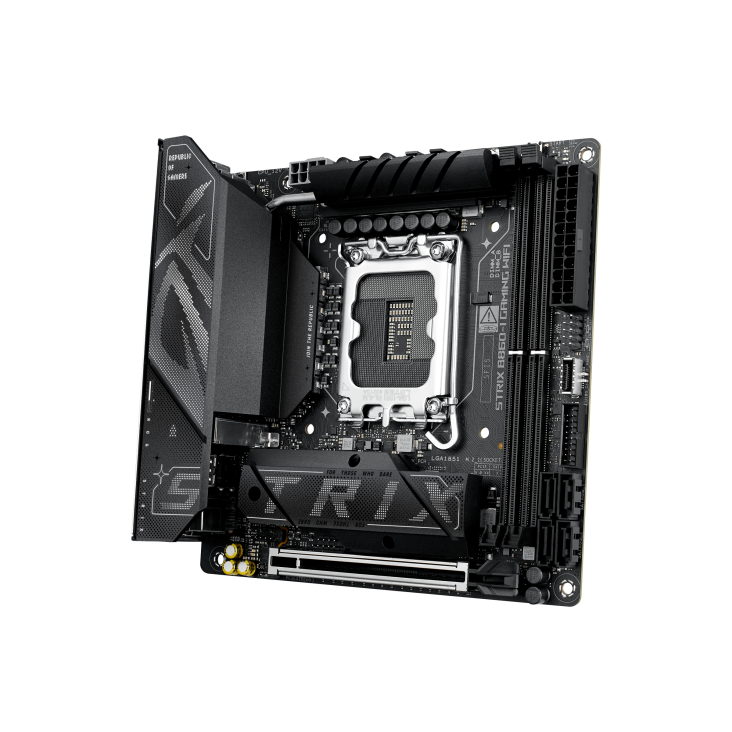

ROG Strix B860-I Gaming WiFi
Specifications
| Model | ROG STRIX B860-I GAMING WIFI |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B860 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered DIMM (CUDIMM) Intel® XMP and ASUS AEMP III support |
| Graphics | 1 x DisplayPort (4K@60Hz) 1 x HDMI™ port (4K@60Hz) 1 x Intel® Thunderbolt™ 4 (up to 8K@60Hz with DSC) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot |
| Storage | 2 x M.2 slots: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 2.9Gbps, supports 2.4/5/6GHz) Bluetooth® v5.4 |
| USB Ports | Rear: 1 x Thunderbolt™ 4 (USB-C®) 1 x USB 20Gbps (USB-C®) 1 x USB 10Gbps (Type-A) 3 x USB 5Gbps (Type-A) 2 x USB 2.0 (Type-A) Front: 1 x USB 10Gbps (Type-C®) 1 x USB 5Gbps header (2 ports) 1 x USB 2.0 header (2 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC Supports Jack-detection, Multi-streaming, 32-Bit/192 kHz playback Rear optical S/PDIF out, premium audio capacitors |

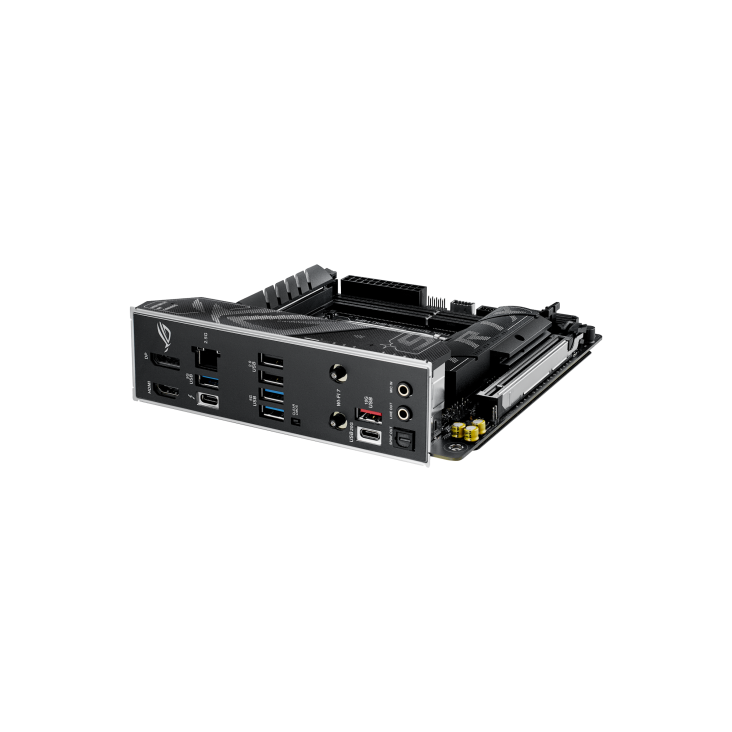

| Back Panel I/O Ports | 1 x Thunderbolt™ 4 (USB-C®) 1 x USB 20Gbps (USB-C®) 1 x USB 10Gbps (Type-A) 3 x USB 5Gbps (Type-A) 2 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks, 1 x Optical S/PDIF out 1 x Clear CMOS button |
| Internal I/O Connectors | 1 x CPU Fan header, 1 x AIO Pump header, 1 x Chassis Fan header 2 x M.2 slots, 4 x SATA 6Gb/s ports 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header 2 x Addressable Gen2 headers, 1 x Thermal Sensor header |
| Special Features | ASUS Q-Design (PCIe Slot Q-Release, M.2 Q-Latch, etc.) Aura Sync (Addressable Gen2 headers) M.2 heatsinks, VRM heatsinks Clear CMOS button, Pre-mounted I/O shield |
| Software | ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Creator, Fan Xpert 4 AIDA64 Extreme (60-day trial), ASUS AI Advisor, Norton 360 (60-day trial), WinRAR (40-day trial) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |

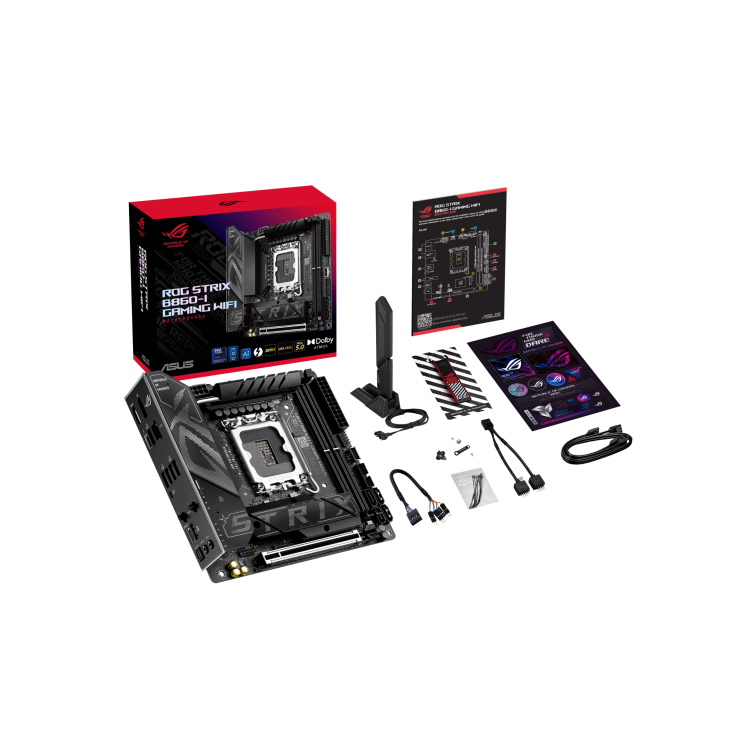

| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 Q-Latch package 1 x ROG USB2.0 splitter cable 1 x ROG key chain, stickers, quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | Mini-ITX (6.7" x 6.7", 17cm x 17cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS ROG Strix B860-I Gaming WiFi LGA 1851 Mini-ITX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slot, Up to 128GB Max Memory, 1 x PCIe 5.0 x16, 2 x M.2 Slot, WiFi & BT Connectivity | 90MB1JB0-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS ROG Strix B860-I Gaming WiFi LGA 1851 Mini-ITX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slot, Up to 128GB Max Memory, 1 x PCIe 5.0 x16, 2 x M.2 Slot, WiFi & BT Connectivity | 90MB1JB0-M0EAY0 . Buy now with the best price!
General SpecificationsÂ
BrandÂ
ASUS
Shipping Weight
1.35 Kg
Shipping Dimensions
9.50 cm x 23.00 cm x 19.01 cm
M.2 Slots
2
Maximum Memory
128 GB
Memory Type
DDR5
Multi-GPU Support
--
Model
ROG Strix B860-I Gaming WiFi
Chipset
Intel B860
Form Factor
Mini ITX
Memory Slots
2
Memory Speed
--
PCI Express x16
1
Socket
LGA 1851
