Product Description

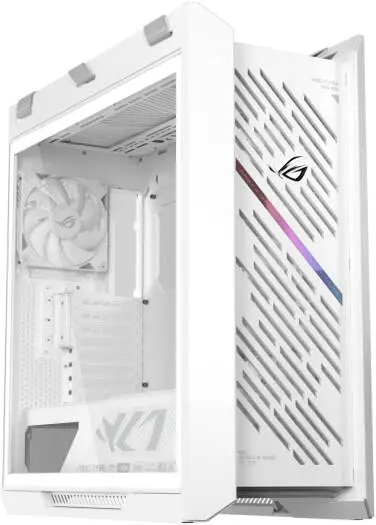

ASUS ROG Strix Helios II TG mid-tower gaming case in white with premium tempered glass, robust cooling support and stylish design for high-end builds. 90DC00W3-B39000
ROG Strix Helios II
ROG Strix Helios II EATX mid-tower gaming case with dual tempered glass side panels, GPU support for up to 450mm in length, aluminum frame and front panel, GPU braces and 420mm radiator support
Â
Specifications
Â
| Case Size | Mid Tower |
| Motherboard Support | EATX (12" x 10.9"), ATX, Micro-ATX, Mini-ITX |
| Drive Bays | 4 × 2.5" Bay, 2 × 2.5"/3.5" Combo Bay |
| Expansion Slots | 8 + 2 (vertical) |
| Front I/O Ports | 1 × Headphone/Microphone, 2 × USB 3.2 Gen 2x2 Type-C, 4 × USB 3.2 Gen1 |
| Tempered Glass | Front Side, Left Side, Right Side |
| Radiator Support (Front) | 120 / 140 / 240 / 280 / 360 / 420 mm |
| Radiator Support (Top) | 120 / 140 / 240 / 280 / 360 mm |
| Radiator Support (Rear) | 120 / 140 mm |
| Cooling Support (Front) | 3 × 120 mm or 3 × 140 mm |
| Cooling Support (Top) | 3 × 120 mm or 2 × 140 mm |
| Cooling Support (Rear) | 1 × 120 mm or 1 × 140 mm |
| Pre-installed Fans (Front) | 3 × 140 mm PWM |
| Pre-installed Fans (Rear) | 1 × 140 mm |
| Maximum CPU Cooler Height | 190 mm |
| Maximum PSU Length | 220 mm |
| Removable Dust Filters | Front, Top, Bottom |
| Maximum Cable Management Space | 33 mm |
| Dimensions (W × H × D) | 250 × 565 × 591 mm |
| Weight | 18 kg |
| AURA Sync | ARGB |
| Accessory | Extension Hub supports PWM Fan × 6, ARGB LED Strip × 6 |
