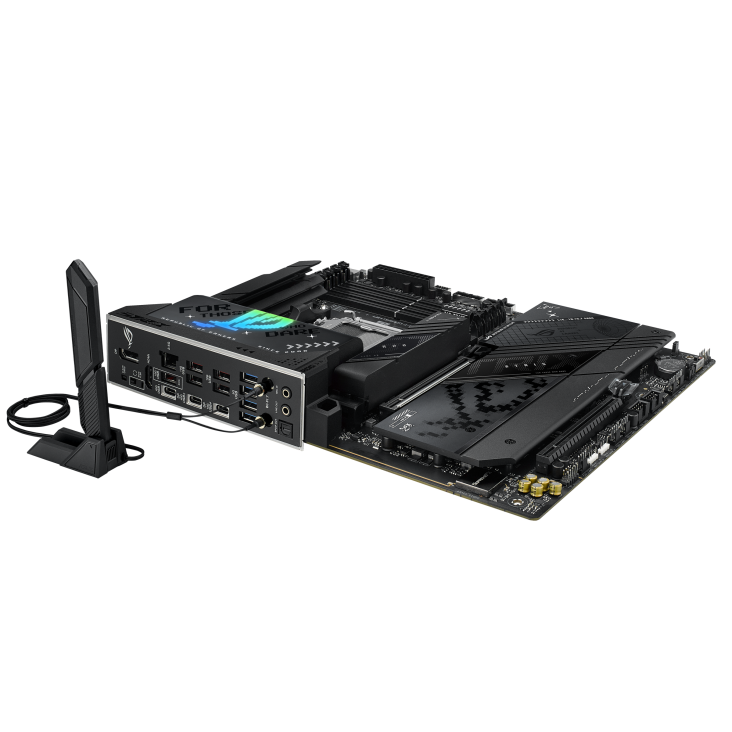

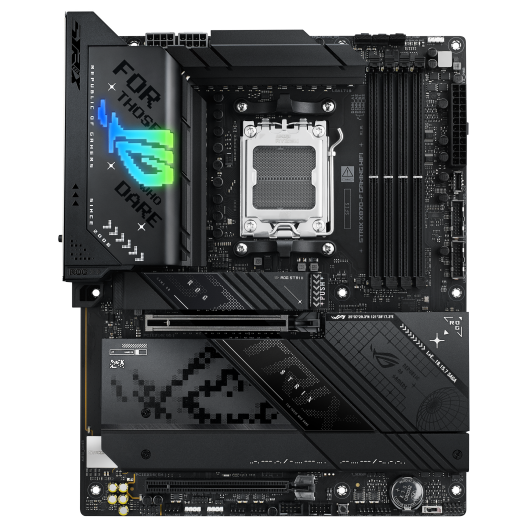

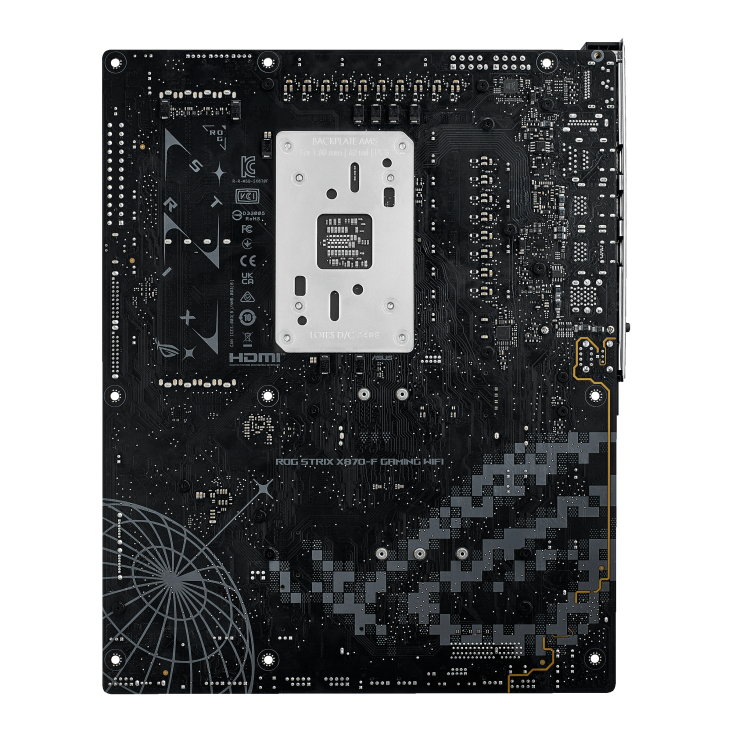

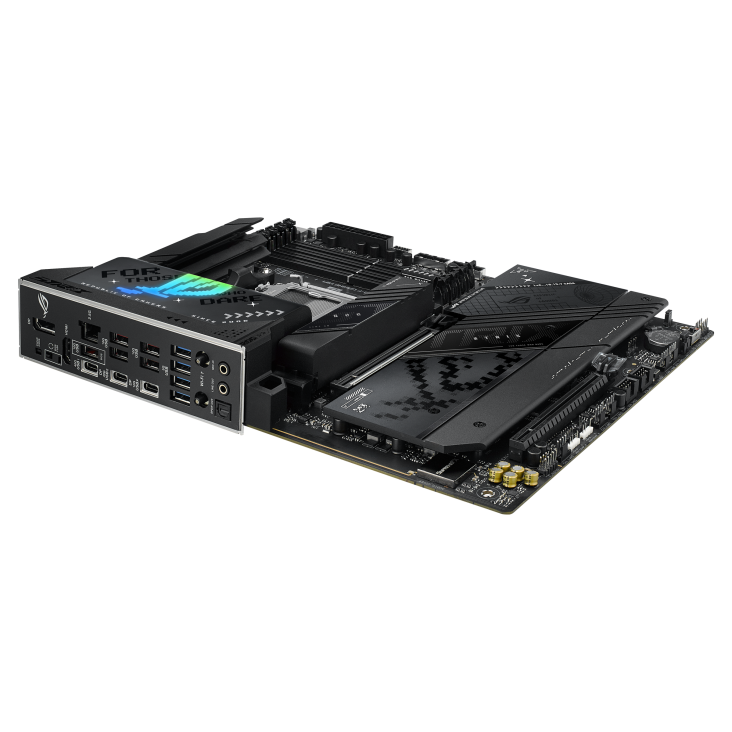

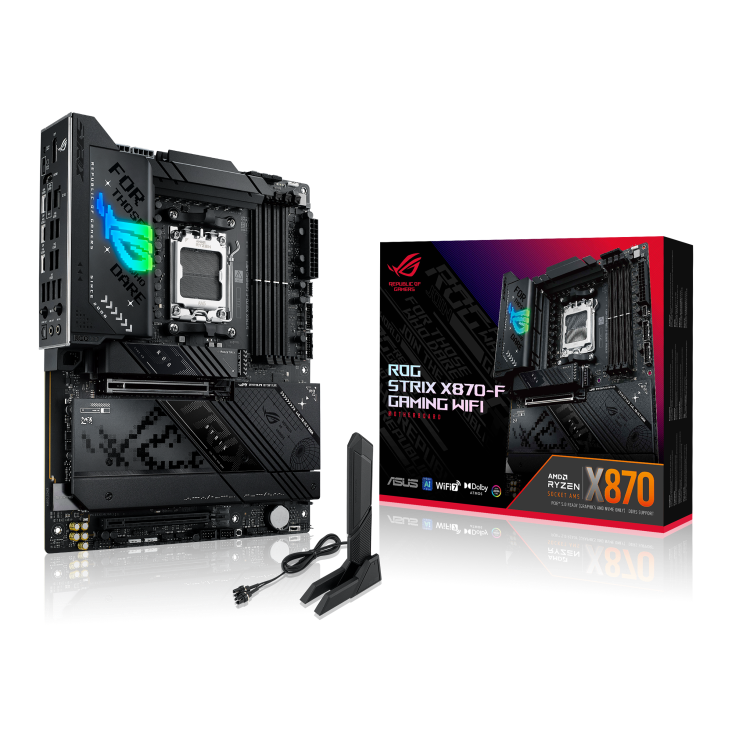

ROG STRIX X870-F gaming wifi
The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
Â
Â
Specifications
| CPU | AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors |
| Chipset | AMD X870 |
| Memory | 4x DIMM slots, max. 192GB, DDR5, supports up to 8000+MT/s(OC), ECC & Non-ECC Un-buffered memory, dual-channel memory architecture |
| Graphics | 1x DisplayPort (8K@30Hz), 1x HDMI™ port (4K@60Hz), 2x USB4® (40Gbps) Type-C (DisplayPort 1.4a, 4K@60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 slot (Ryzen™ 9000/7000), 1x PCIe 4.0 x16 slot (Ryzen™ 8000), 1x PCIe 4.0 x16 slot (AMD X870) |
| Storage | 4x M.2 slots, 2x SATA 6Gb/s ports, RAID support (RAID 0/1/5/10) |
| Ethernet | 1x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Bluetooth® v5.4 |
| USB (Rear) | 2x USB4® (40Gbps, Type-C), 6x USB 10Gbps (5x Type-A, 1x Type-C), 4x USB 5Gbps (Type-A) |
| USB (Front) | 1x USB 20Gbps (Type-C), 2x USB 5Gbps headers (4 ports), 2x USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound (ALC4080), 120dB SNR playback, 110dB SNR recording, SupremeFX Shielding, Savitech SV3H712 AMP |
| Back Panel I/O Ports | 2x USB4® (40Gbps, Type-C), 6x USB 10Gbps (5x Type-A, 1x Type-C), 4x USB 5Gbps (Type-A), 1x DisplayPort, 1x HDMI, 1x Optical S/PDIF, 2x Audio jacks, 1x Ethernet |
| Internal I/O Connectors | 1x 24-pin main power, 2x 8-pin CPU power, 4x M.2 slots, 2x SATA ports, 1x USB 20Gbps connector, 2x USB 5Gbps headers, 2x USB 2.0 headers |
| Special Features | Extreme Engine Digi+, Q-Design (M.2 Q-Latch, Q-Release, SafeSlot), ASUS Aura Sync, Armoury Crate, Fan Xpert 4 with AI Cooling II |
| Accessories | 2x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, Cable ties, ROG stickers, M.2 rubber packages |
| Software | ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Sync, Norton 360 (60 Days Free Trial), Adobe Creative Cloud (Free Trial) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX (12" x 9.6") |
