Product Description

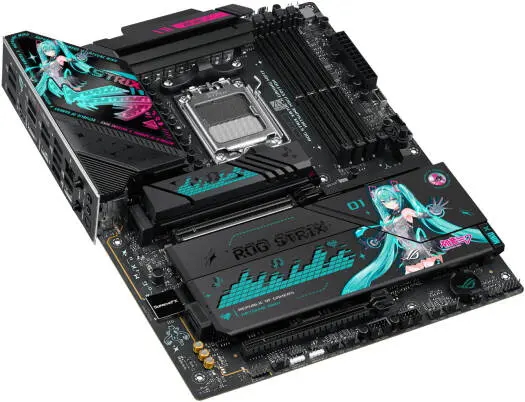

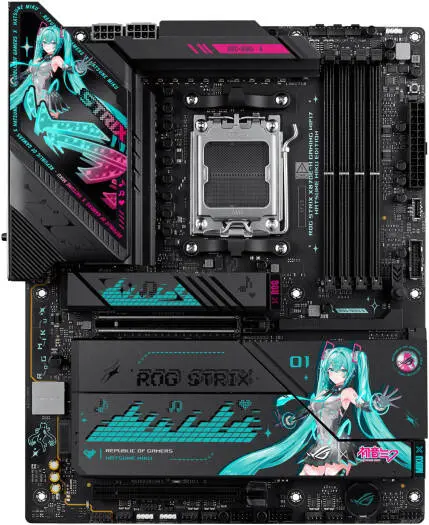

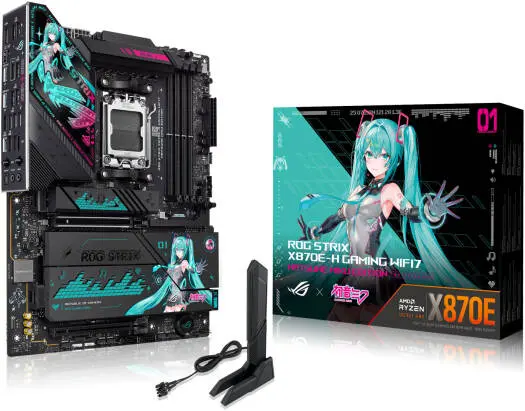

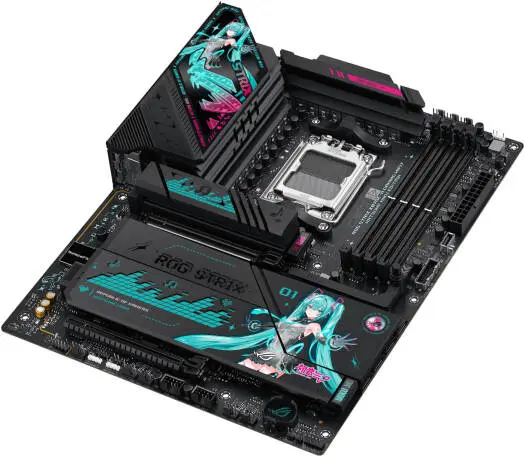

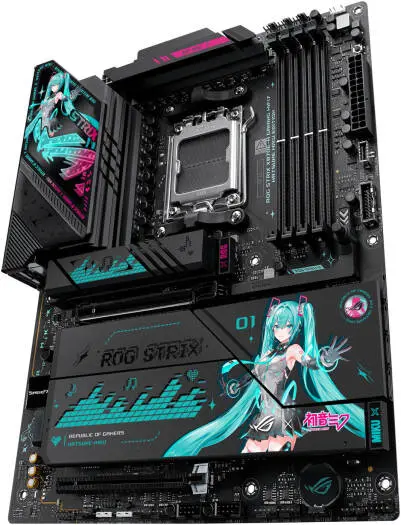

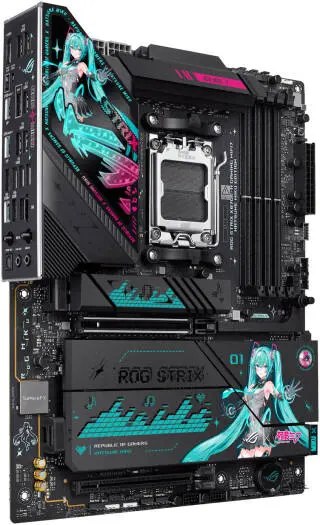

ASUS ROG STRIX X870E-H Gaming WiFi 7 Hatsune Miku Edition motherboard with X870E chipset, DDR5 up to 256GB, PCIe 5.0 x16, and four M.2 slots—exclusive design meets high-end Ryzen performance. 90MB1MA0-M0EAY0
ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
Specifications
| CPU | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* (*See ASUS support site for full list) |
| Chipset | AMD X870E |
| Memory | 4 × DIMM slots, max 256GB, DDR5, Dual channel, Supports up to 8000+MT/s (OC), EXPO™, DIMM Fit / DIMM Fit Pro, ASUS Enhanced Memory Profile (AEMP) |
| Graphics | 1 × HDMI™ port (4K@60Hz), 2 × USB4® (40Gbps) with Type-C display output |
| Expansion Slots | Ryzen™ 9000/7000: 1 × PCIe 5.0 x16; Ryzen™ 8000: 1 × PCIe 4.0 x16; X870E Chipset: 1 × PCIe 4.0 x16 |
| Storage | 4 × M.2 slots, 4 × SATA 6Gb/s ports; M.2_1/2 PCIe 5.0 or 4.0 depending on CPU; M.2_3/4 PCIe 4.0 |
| RAID Support | AMD RAIDXpert2: RAID 0/1/5/10 (varies by CPU) |
| Ethernet | 1 × Realtek 5Gb LAN, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7925) 2×2, 2.4/5/6 GHz, 160MHz, Bluetooth v5.4 |
| Rear USB Ports | 2 × USB4® (Type-C), 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0 |
| Front USB Ports | 1 × USB 20Gbps (Type-C), 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1, SupremeFX Shielding, Savitech SV3H712 AMP, Rear optical S/PDIF, 120 dB SNR playback |
| Back Panel I/O | 2 × USB4® Type-C, 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0, 1 × HDMI™, 1 × Wi-Fi module, 1 × 5Gb LAN, 2 × Audio jacks, 1 × Optical S/PDIF, BIOS FlashBack™, Clear CMOS |
| Internal I/O Connectors | CPU Fan ×1, CPU OPT Fan ×1, AIO Pump ×1, Chassis Fan ×5, 24-pin Power, 2 × 8-pin CPU Power, M.2 ×4, SATA ×4, USB headers, Front Audio, Start button, Thermal Sensor, Front Panel |
| Special Features | Extreme Engine Digi+, 5K Black metallic capacitors, ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-DIMM, Q-LED, Q-Slot, Q-Dashboard, Q-Antenna), Thermal solution (M.2/VRM heatsinks), EZ DIY (FlashBack, Clear CMOS, ProCool II, pre-mounted I/O shield), SafeSlot, Aura Sync (ARGB Gen2 headers) |
| Software Features | ROG Exclusive (CPU-Z, Dolby Atmos), ASUS Exclusive (Armoury Crate, Aura Creator/Sync, Fan Xpert 4, GameFirst, AI Advisor, DriverHub, HWiNFO, GlideX, TurboV Core, USB Wattage Watcher), Adobe CC trial, Norton 360 (60 days), WinRAR trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, AI Cache Boost, CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey, FlexKey |
| Manageability | WOL by PME, PXE |
| Accessories | 2 × SATA 6Gb/s cables, ASUS Wi-Fi Q-Antenna, Cable ties, M.2 Q-Latch, ASUS PCIe to Front USB Card (2 × USB 5Gbps + 1 × USB 10Gbps), Hatsune Miku Edition: Phone Stand, Thank You Card, Sticker, 4 × M.2 rubbers |
| Documentation | Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 12" × 9.6" (30.5 × 24.4 cm) |
