Product Description
ROG Strix Z890-A Gaming Wi-Fi
Â
Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+1+2+2 power stages, DDR5 slots, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe® 5.0 NVMe® SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, USB 10Gbps Type-C®rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
Â
Â
Specifications
Â
| CPU | Support Intel® Core™ Ultra Processors (Series 2), Intel® Turbo Boost Technology 2.0 and Max Technology 3.0** Refer to ASUS Support ** Depends on CPU type. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered, CUDIMM* Supports Intel® XMP, DIMM Flex, DIMM FIT, AEMPIII *Refer to ASUS Support. Non-ECC supports On-Die ECC. |
| Graphics | 1 x DisplayPort* 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4*** * Max. 8K@60Hz, ** Max. 4K@60Hz, *** 8K@60Hz x1 with DSC or 4K@60Hz x2; max total bandwidth 23.8Gbps. |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (Intel® Core™ Ultra Processors) 1 x PCIe 4.0 x16 (supports x4 mode) **Refer to ASUS Support. |
| Storage | 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports M.2_1 supports PCIe 5.0 x4 mode, M.2_2 supports PCIe 4.0 x4 mode Intel® Rapid Storage Technology supports RAID. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 (802.11be), supports 2.4/5/6GHz, up to 5.8Gbps. Bluetooth® v5.4. |
| USB | Rear (10 ports): 2 x Thunderbolt™ 4 (USB Type-C), 6 x USB 10Gbps (5 x Type-A, 1 x USB Type-C), 2 x USB 5Gbps (Type-A) Front (7 ports): 1 x USB 20Gbps, 1 x USB 5Gbps header, 2 x USB 2.0 headers. |
| Audio | ROG SupremeFX 7.1 Surround Sound CODEC ALC4080 Supports up to 32-Bit/384 kHz playback on front panel. |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 ports, 6 x USB 10Gbps, 2 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI™, 1 x Intel® 2.5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack™, 1 x Clear CMOS button. |
| Internal I/O Connectors | 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power connectors, 5 x 4-pin Chassis Fan headers, 5 x M.2 slots, 4 x SATA 6Gb/s ports, USB headers. |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x Chassis Intrusion header, 1 x CPU Over voltage jumper, 1 x Start button, 1 x Thermal Sensor header, 1 x Thunderbolt™ header. |
| Special Features | Extreme Engine Digi+ ASUS Q-Design features ASUS Thermal Solution components ASUS EZ DIY tools. |
| Software Features | ROG & ASUS Exclusive Software: Armoury Crate, ROG CPU-Z, Dolby Atmos, GameFirst, AIDA64 Extreme (60 days trial), Norton 360 for Gamers (60 days trial). |
| BIOS | 256 Mb UEFI AMI BIOS, WOL by PME, PXE |

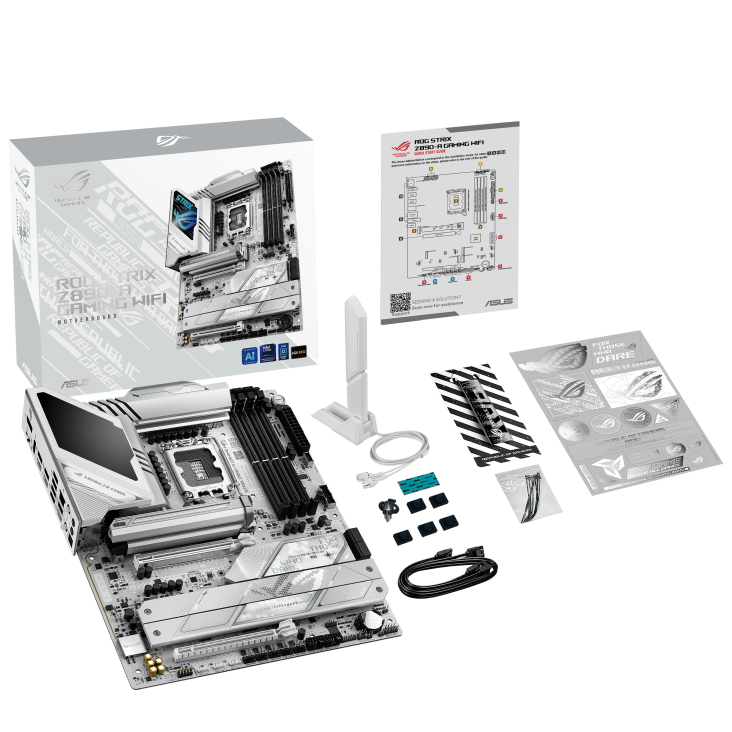

| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, additional cooling kit, 1 x Quick start guide. |
| Operating System | Windows 11 (22H2 later) |
| Form Factor | ATX Form Factor (12 x 9.6 in / 30.5 x 24.4 cm) |
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS ROG Strix Z890-A Gaming Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, PCIe 5.0 x16 Slot, 5x M.2 Slots, White | 90MB1I90-M0EAY0.
Best Price Guarantee
We offer the best price for ASUS ROG Strix Z890-A Gaming Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, Wi-Fi 7 & BT 5.4, PCIe 5.0 x16 Slot, 5x M.2 Slots, White | 90MB1I90-M0EAY0 . Buy now with the best price!
