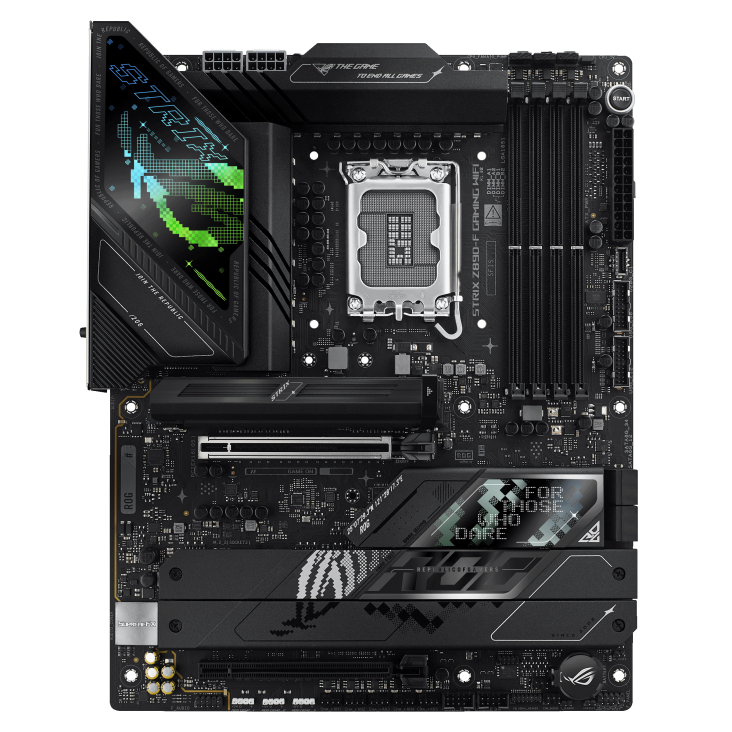

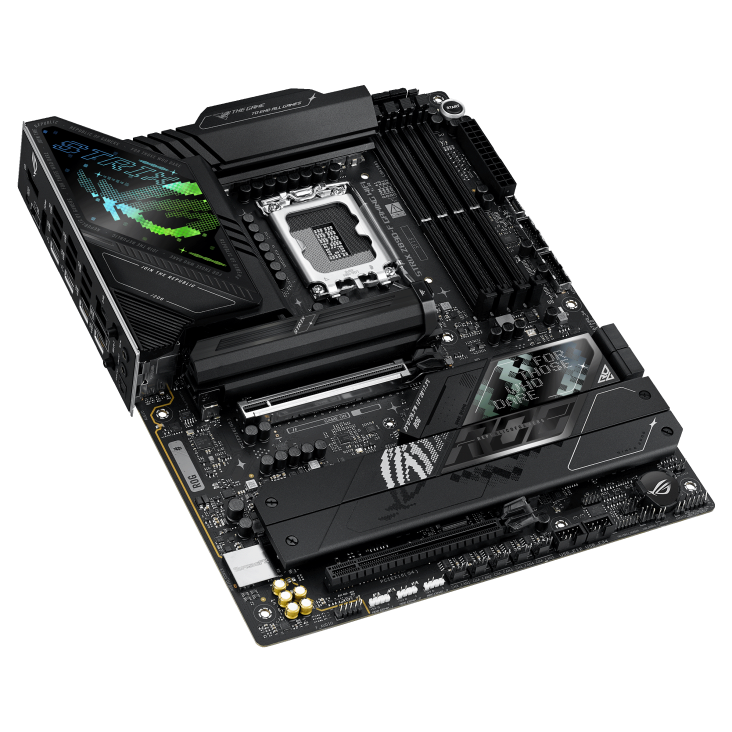

ROG STRIX Z890-F GAMING WIFI
Â
Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+1+2+2 power stages, DDR5 slots, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe® 5.0 NVMe® SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, USB 10Gbps Type-C® rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
Â
Â
Specifications
| CPU | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2) Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for updates. |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band** Bluetooth® v5.4*** Wi-Fi features may vary depending on the OS. |
| USB | Rear USB (Total 14 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** Front USB (Total 9 ports) 1 x USB 20Gbps connector (1 x USB Type-C®) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* High quality 120 dB SNR stereo playback output and 110 dB SNR recording input The LINE OUT port on the rear panel does not support spatial audio. |

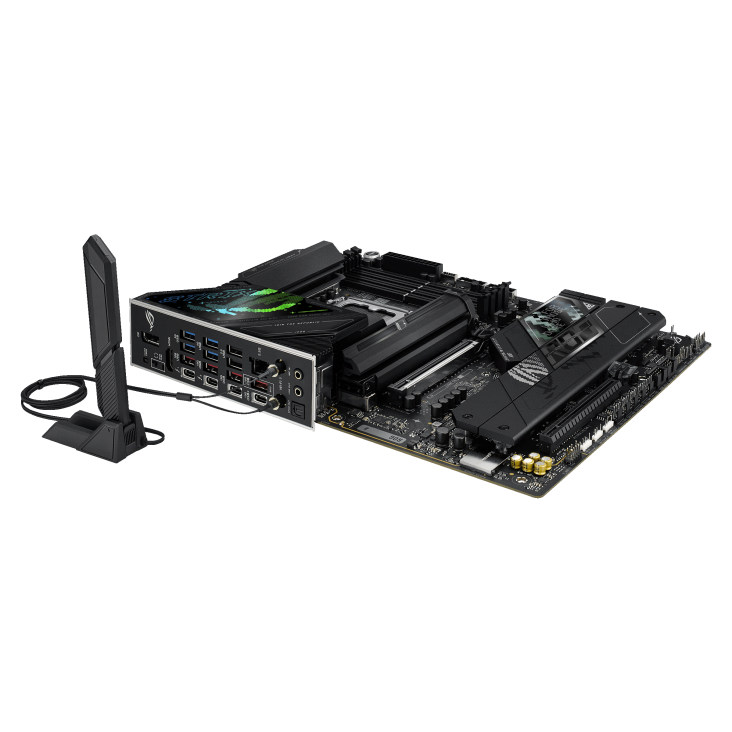

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** 1 x DisplayPort 1 x HDMI™ port 1 x Intel® 2.5Gb Ethernet port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header 1 x 24-pin Main Power connector 5 x 4-pin Chassis Fan headers 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Special Features | Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY |
| Software Features | ROG Exclusive Software ASUS Exclusive Software |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
